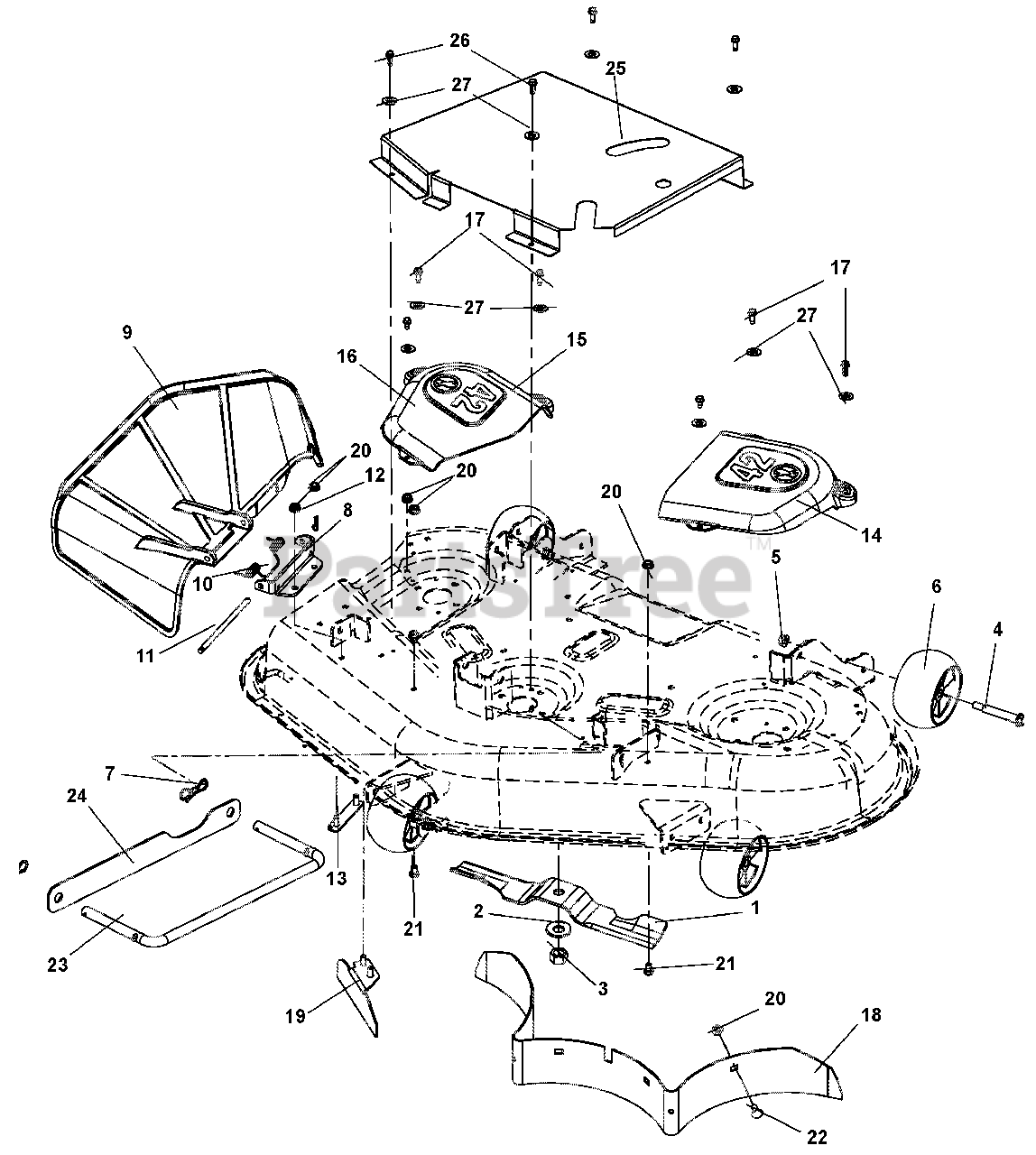

915328 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 045000 & Above) Belt Covers And Blades Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Belt Covers And Blades Parts Diagram

  • Title

1

Gravely 04265400

BLADE, MOWER 14.83 (.188 THK)

$25.99

$

In Stock, Qty 20+

0

2

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

3

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 07056800

BLT-SHLDR .38-16X2.50 HWH G5YZ

$7.49

$

In Stock, Qty 20+

0

5

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03905600

ANTI-SCALP WHEEL - 5X OS

$17.99

$

In Stock, Qty 20+

0

7

Gravely 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 04073053

BRKT-DISCHARGE CHUTE MOUNT 42"

$29.99

$

In Stock, only 2 left!

0

9

Gravely 04375900

CHUTE, DISCHARGE - MOLDED

$102.99

$

In Stock, Qty 7

0

10

Gravely 08300515

SPRING-TORSION

$35.99

$

In Stock, only 2 left!

0

11

Gravely 00475800

PIN, 5/16 X 5.80"

$9.99

$

In Stock, Qty 20+

0

12

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 03977400

WMT-DISCHARGE CHUTE MT. STRAP

$

$

Not available

14

Gravely 03902200

BELT COVER - LH 42"

$29.99

$

In Stock, Qty 20+

0

15

Gravely 03902100

BELT COVER - RH 42"

$27.99

$

In Stock, only 2 left!

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03957853

BAFFLE, REAR (42)

$62.99

$

Usually ships in 4-12 days

0

19

Gravely 04395453

WLDMT-BAFFLE, DISCHARGE 42"

$73.99

$

Usually ships in 4-12 days

0

20

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

22

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 13

0

23

Gravely 04377667

WIREFORM, DRAG LINK
(Superseded to 04377600)

$24.99

$

In Stock, Qty 9

0

24

Gravely 04424951

STRAP, DRAG LINK
(Superseded to 04424967)

$20.99

$

In Stock, only 2 left!

0

25

Gravely 04847351

GUARD, 42" ZOOM/ZT CE BELT

$

$

Not available

26

Gravely 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

In Stock, only 2 left!

0

27

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 8

0
