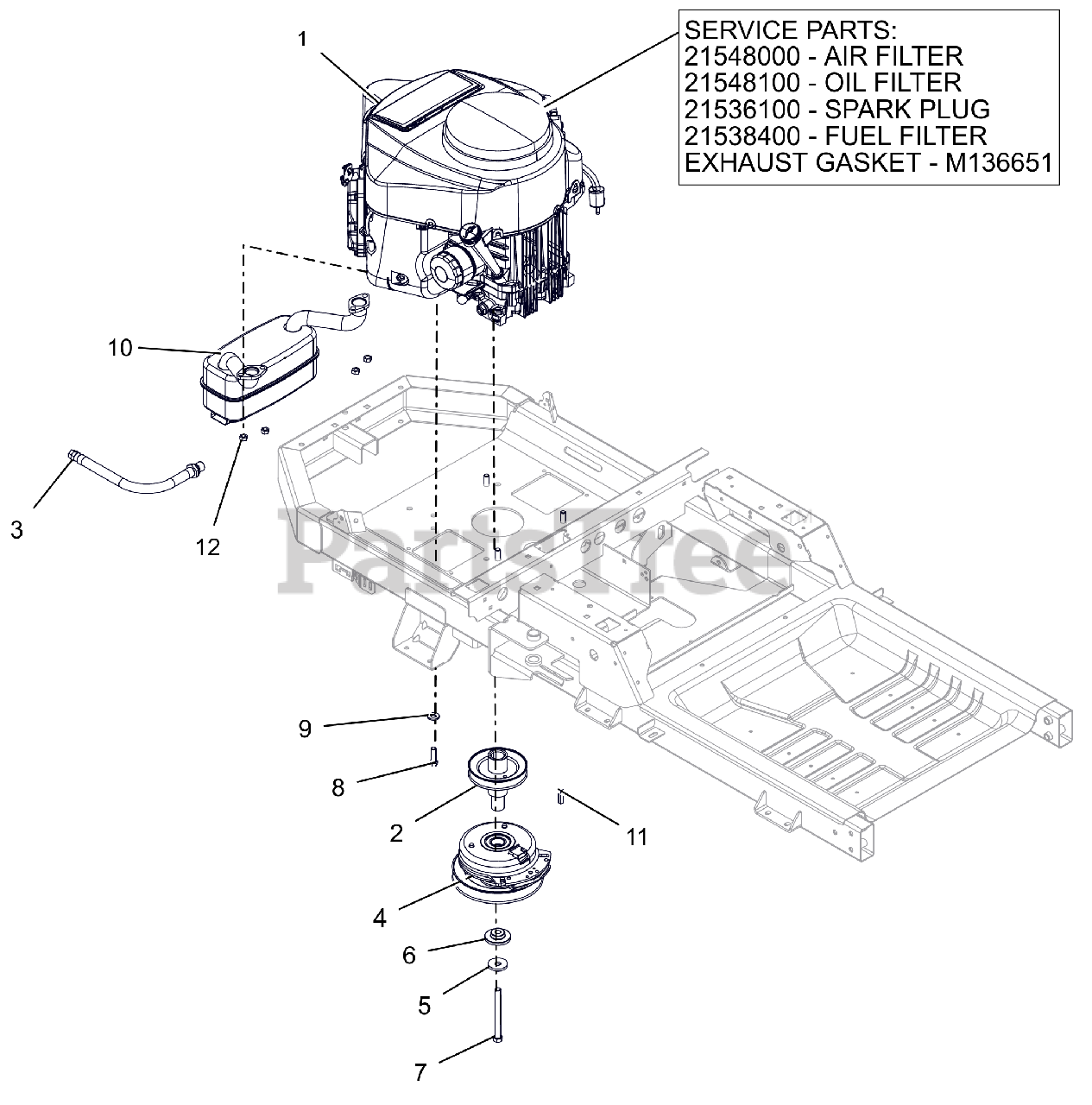

915331 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 030000 - 034999) Engine - Kawasaki FR651 - 42" Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

Engine - Kawasaki FR651 - 42" Parts Diagram

  • Title

1

Ariens 08201132

ENGINE, KAWASAKI FR651V 22HP

$

$

Not available

1

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0

1

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

1

Ariens 21536100

PLUG, SPARK

Note: SERVICE PART

$3.49

$

In Stock, Qty 20+

0

1

Ariens 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: SERVICE PART

$12.99

$

Usually ships in 4-12 days

0

1

Ariens M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: SERVICE PART

$7.99

$

In Stock, only 4 left!

0

2

Ariens 07345100

WLDMT, DRIVE SHEAVE-X

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 07001730

HOSE, OIL DRAIN

$19.99

$

Usually ships in 4-12 days

0

4

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

Usually ships in 4-12 days

0

5

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

6

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

7

Ariens 05901707

BLT-HEX.438-20X4.5GR8YZ NYTORQ
(Superseded to 05901820)

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 5

0

9

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 05088300

MUFFLER - KAWASAKI

$102.99

$

In Stock, only 1 left!

0

11

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

12

Ariens 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0
