915331 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 035000 - 044999) Seat Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

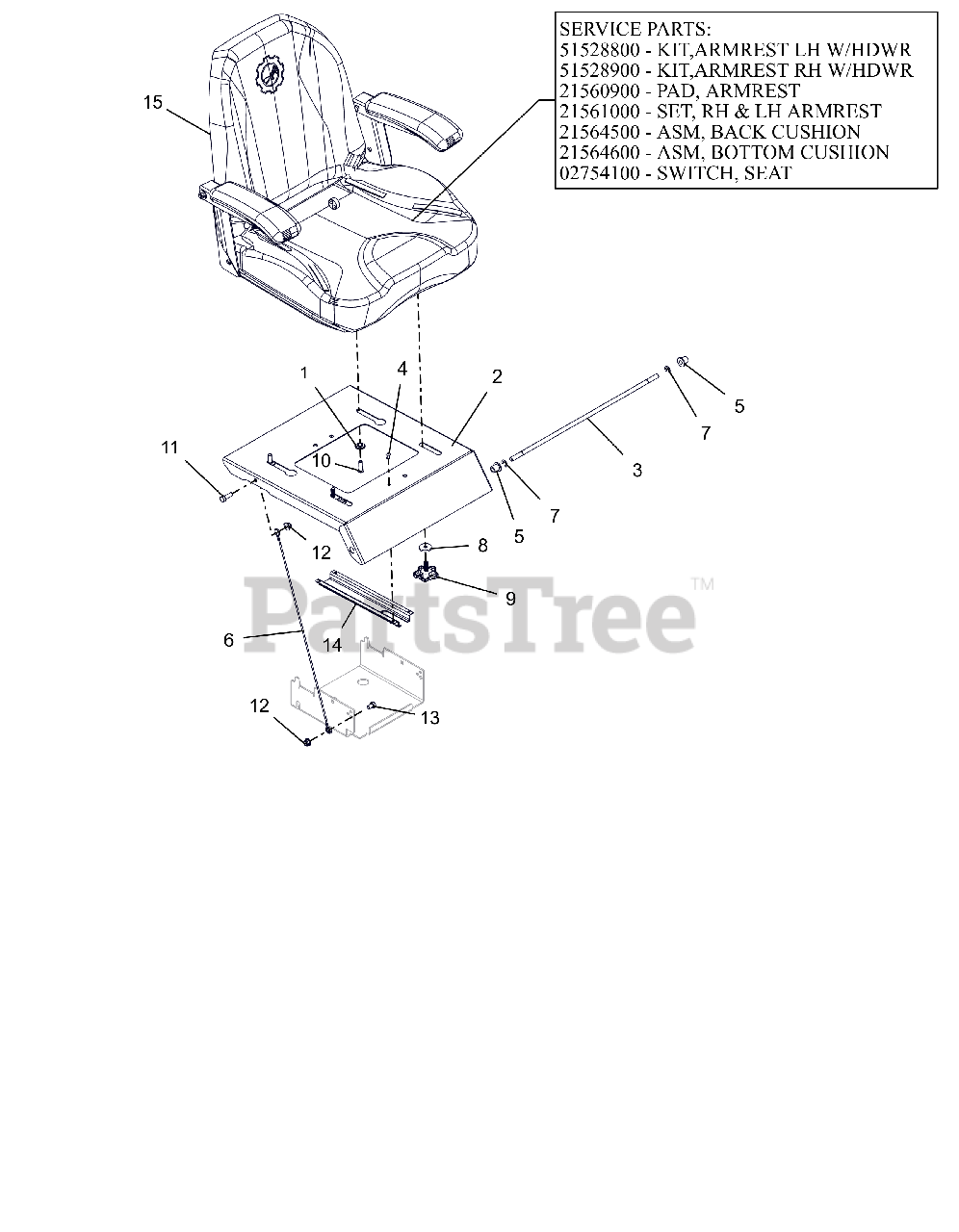

Seat Parts Diagram

  • Title

1

Ariens 05501328

BSHG, FLG .312X.499X.23X.88

$2.49

$

In Stock, only 2 left!

0

2

Ariens 05160859

PLATE, SEAT (FASTENER SLIDE)
(Superseded to 05246959)

$92.99

$

Usually ships in 4-12 days

0

3

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 9

0

6

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 2 left!

0

7

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, only 2 left!

0

9

Ariens 07500226

KNOB, WING STUDDED

$3.99

$

In Stock, Qty 9

0

10

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.99

$

In Stock, Qty 20+

0

11

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

12

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.99

$

In Stock, Qty 8

0

14

Ariens 05091370

GUARD, SEAT SWITCH (GREY PEARL)

$

$

Not available

15

Ariens 05092300

SEAT, IKON
(Superseded to 05176000)

$593.99

$

In Stock, only 1 left!

0

15

Ariens 51528800

KIT, ARMREST LH

$139.99

$

Usually ships in 4-12 days

0

15

Ariens 51528900

KIT, ARMREST RH

$139.99

$

Usually ships in 4-12 days

0

15

Ariens 21560900

PAD, ARMREST (HARD)

$41.99

$

In Stock, only 2 left!

0

15

Ariens 21561000

SET,RH & LH ARMREST -HARD

$116.99

$

Usually ships in 4-12 days

0

15

Ariens 21564500

ASM, BACK CUSHION-ARIENS X

$224.99

$

In Stock, only 1 left!

0

15

Ariens 21564600

ASM, BOTTOM CUSHION-ARIENS X

$191.99

$

Usually ships in 4-12 days

0

15

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 20+

0
