915331 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 080000 & Above) Seat Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

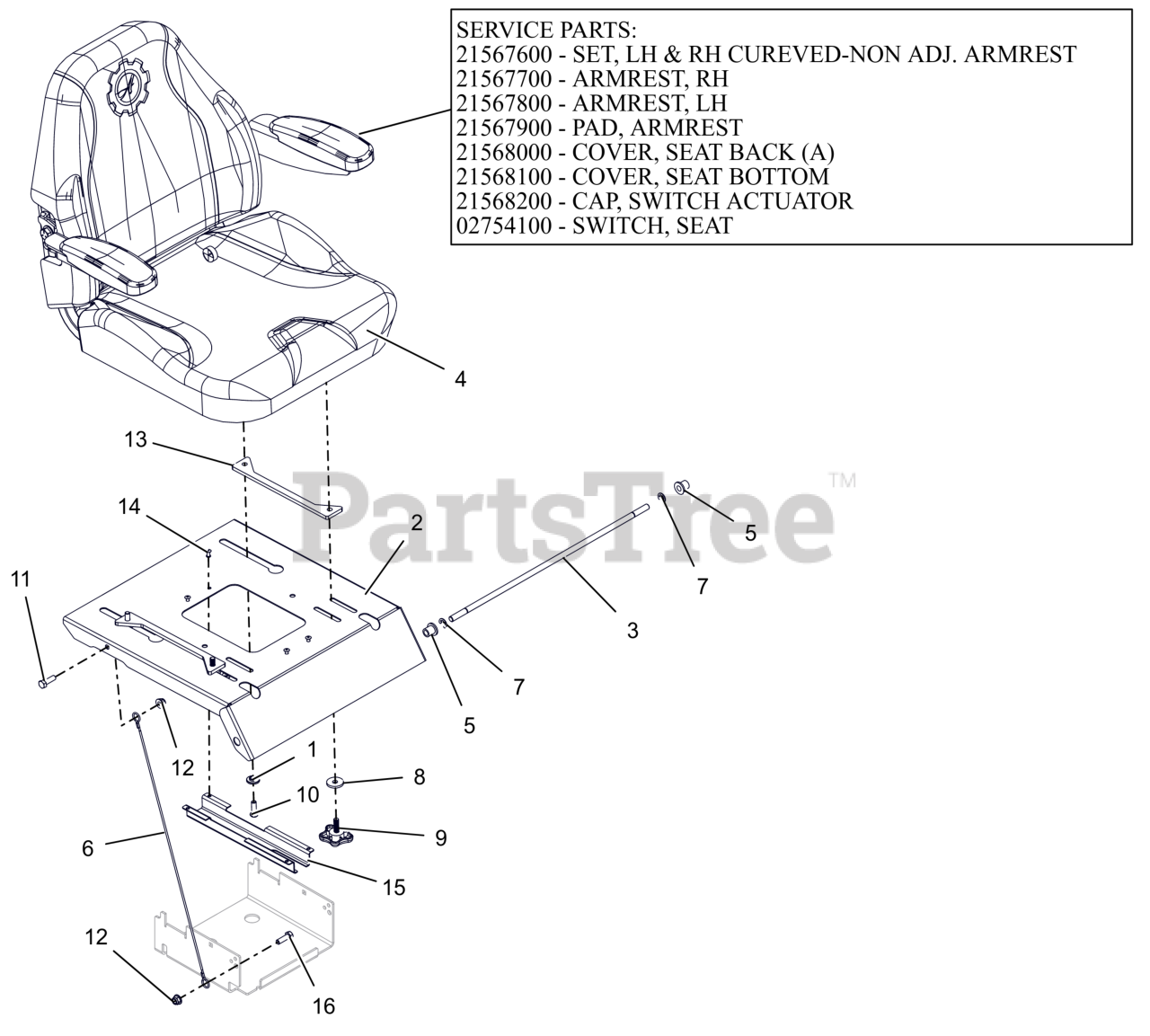

Seat Parts Diagram

  • Title

1

Ariens 05501328

BSHG, FLG .312X.499X.23X.88

$2.49

$

In Stock, Qty 5

0

2

Ariens 05246959

PLATE, SEAT (ORANGE)

$92.99

$

Usually ships in 4-12 days

0

3

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 05195300

SEAT, -IKON

$343.99

$

Usually ships in 4-12 days

0

4

Ariens 21567600

SET,LH&RG CURVED-ARMREST

Note: SERVICE PART

$134.99

$

Usually ships in 4-12 days

0

4

Ariens 21567700

ARMREST-CURVED RH

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 21567800

ARMREST-CURVED LH

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 21567900

PAD, ARMREST (BLACK SELFSKIN)

Note: SERVICE PART

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 21568000

COVER, SEAT BACK (A)

Note: SERVICE PART

$113.99

$

Usually ships in 4-12 days

0

4

Ariens 21568100

COVER, SEAT BOTTOM (A)

Note: SERVICE PART

$133.99

$

In Stock, only 1 left!

0

4

Ariens 21568200

CAP, SWITCH ACTUATOR

Note: SERVICE PART

$31.99

$

In Stock, only 1 left!

0

4

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.99

$

In Stock, Qty 12

0

5

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

6

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0

7

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, Qty 15

0

9

Ariens 07500226

KNOB, WING STUDDED

$3.99

$

In Stock, Qty 20+

0

10

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.99

$

In Stock, Qty 17

0

11

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 10

0

12

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05259051

SPCR, SEAT SLIDE (BLACK)

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05091351

GUARD, SEAT SWITCH

$25.99

$

Usually ships in 4-12 days

0

16

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 10

0
