915332 - Ariens Ikon-X 52" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 029999) Chute Parts Diagram

Ikon-X 52" Zero-Turn Mower, Kawasaki FR

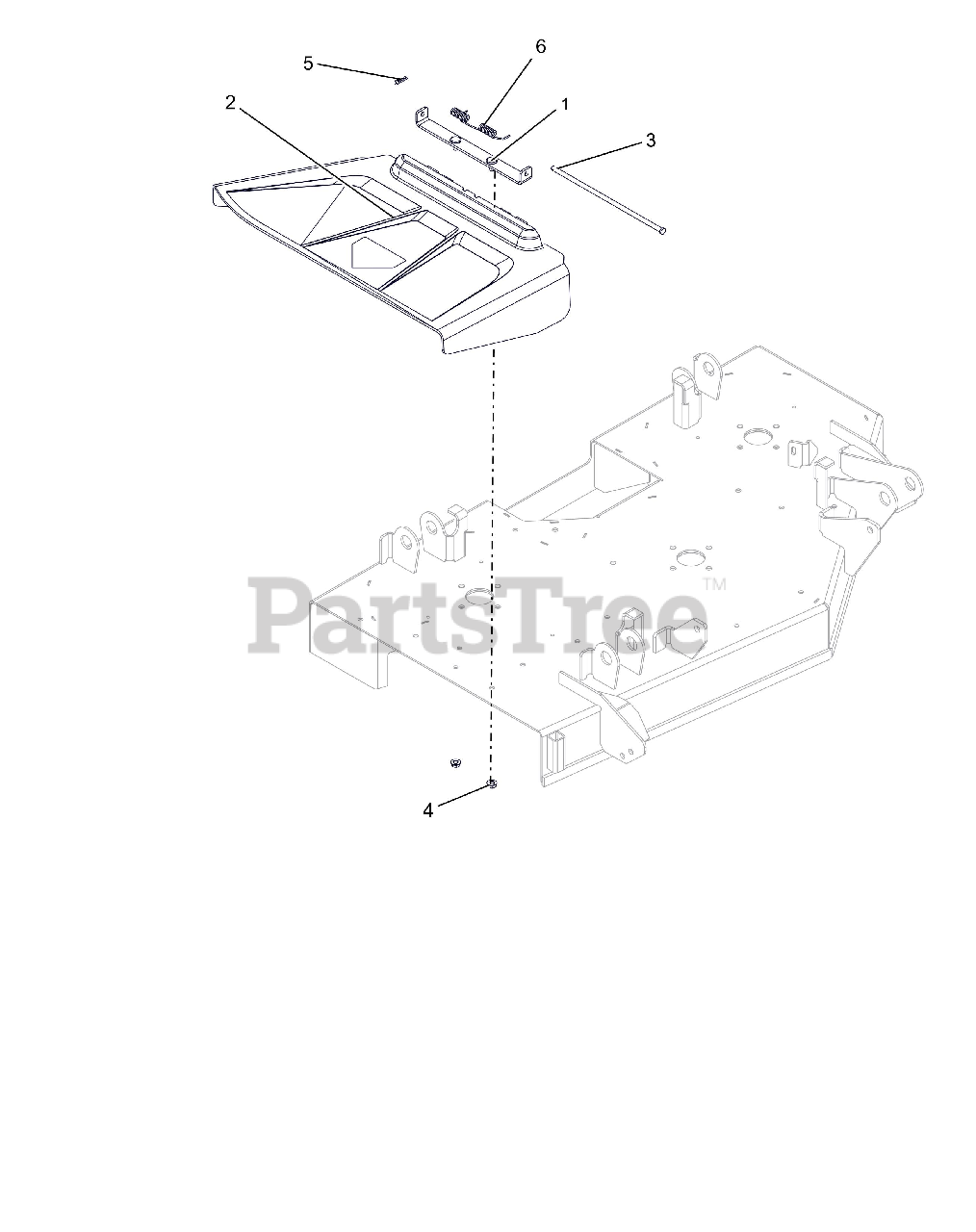

Chute Parts Diagram

  • Title

1

Ariens 04799859

WLDMT, CHUTE MT BRKT
(Superseded to 04799800)

$19.99

$

In Stock, Qty 5

0

2

Ariens 04795000

CHUTE, SIDE DISCHARGE

$44.99

$

In Stock, Qty 20+

0

3

Ariens 04815900

PIN, 5/16 X 10.5
(Superseded to 06800205)

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

6

Ariens 08300621

SPRING-TORSION

$5.99

$

In Stock, Qty 16

0
