915335 - Ariens Ikon-XD 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0379555 & Above) Engine Guard Parts Diagram

Ikon-XD 52" Zero-Turn Mower, 23hp Kawasaki FR

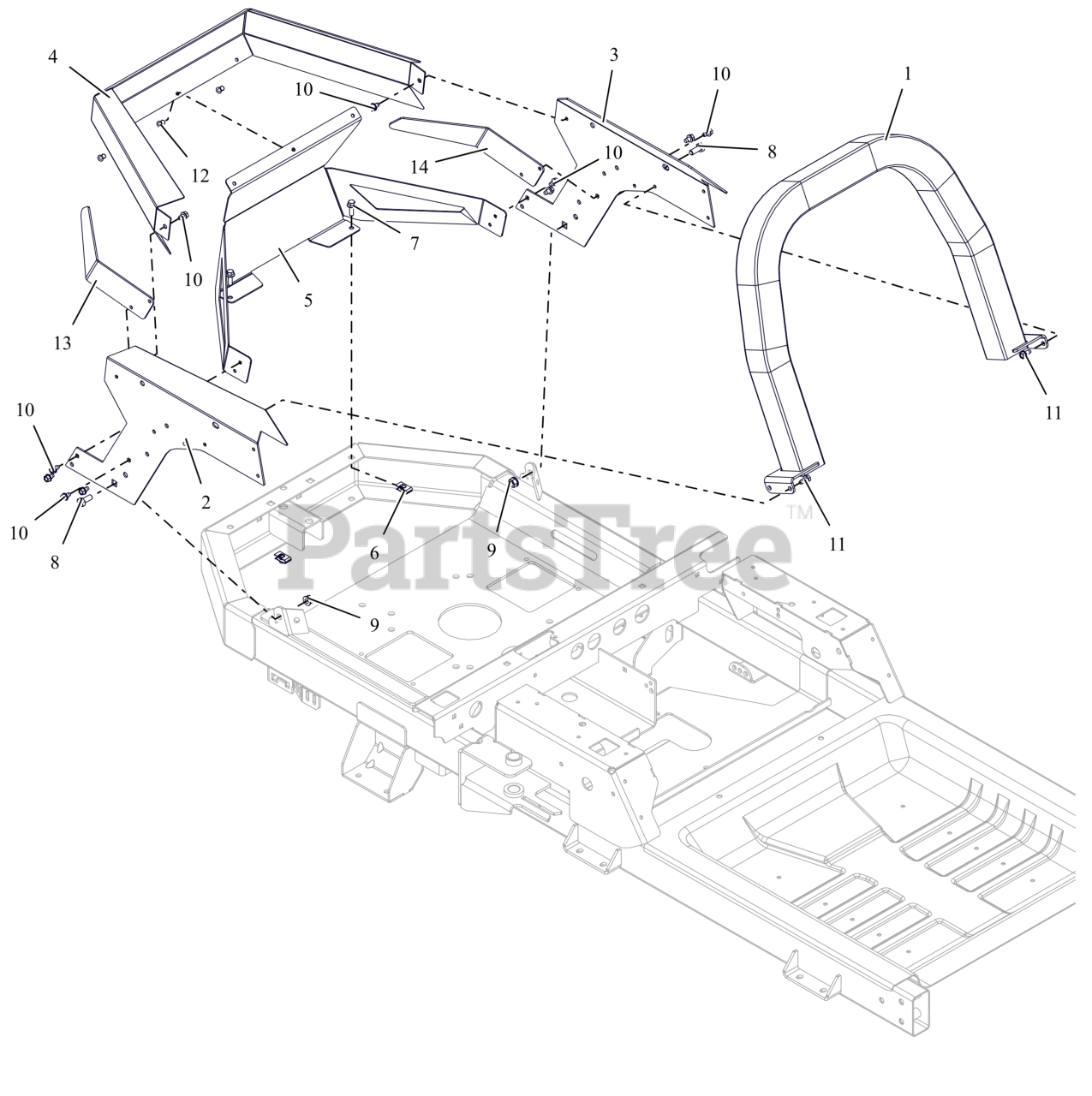

Engine Guard Parts Diagram

  • Title

1

Ariens 05296359

ENGINE-TOP GUARD (ORANGE)

$157.99

$

Usually ships in 4-12 days

0

2

Ariens 05295959

PANEL, RIGHT REAR FENDER MOUNT (ORANGE)

$42.99

$

Usually ships in 4-12 days

0

3

Ariens 05296059

PANEL, LH REAR FENDER MOUNT (ORANGE)

$42.99

$

Usually ships in 4-12 days

0

4

Ariens 05296159

GUARD, ENGINE WRAP (ORANGE)

$55.99

$

Usually ships in 4-12 days

0

5

Ariens 05296251

GUARD, ENGINE -BOTTOM (BLACK)

$67.99

$

Usually ships in 4-12 days

0

6

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$1.49

$

In Stock, Qty 8

0

11

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 05160951

SHIELD, RH, ENGINE GUARD VALVE

$

$

Currently unavailable

14

Ariens 05161051

SHIELD, LH, ENGINE GUARD VALVE

$34.99

$

Usually ships in 4-12 days

0
