915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: 001000 & Above) Deck Lift - 34" (Continued) Parts Diagram
Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

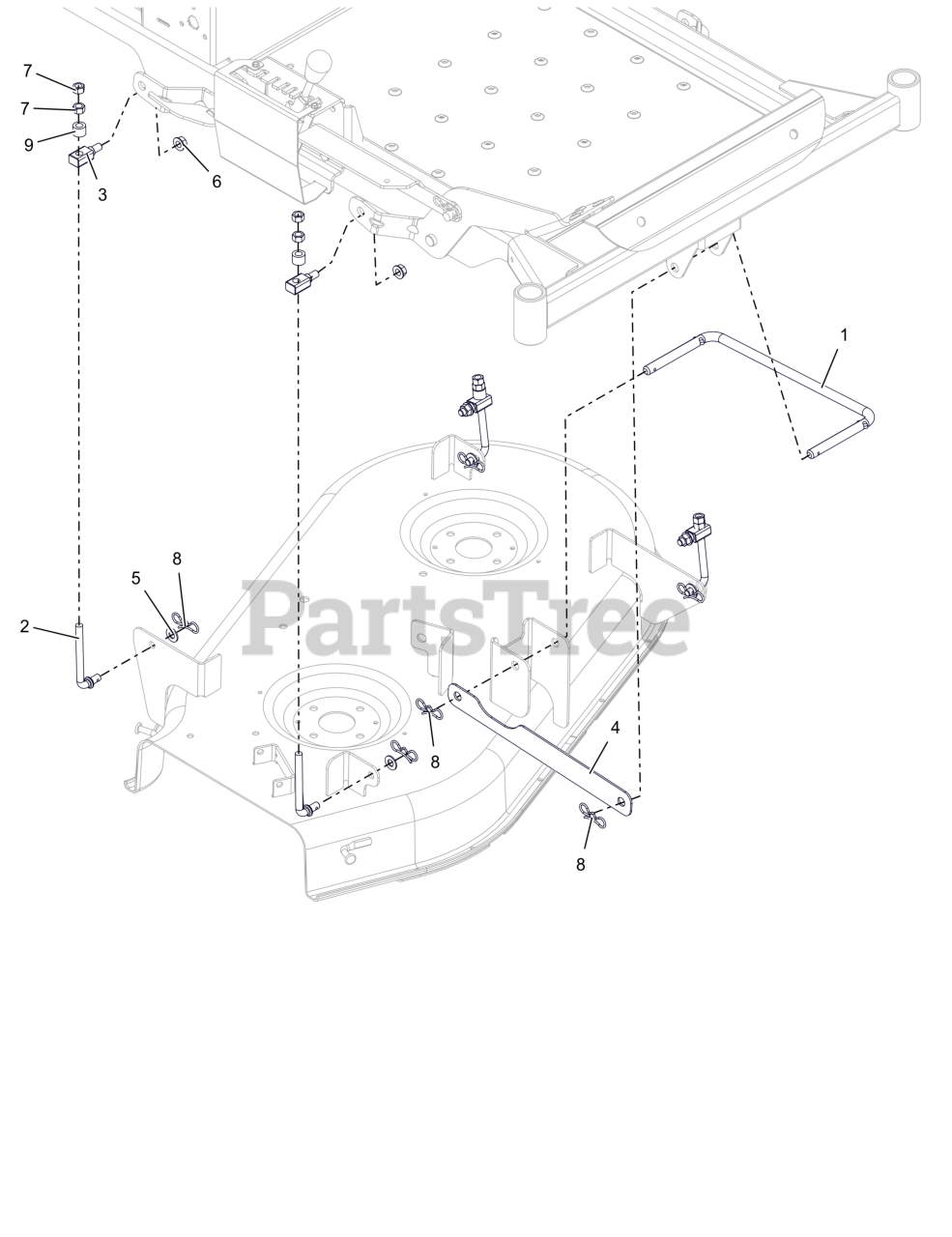

Deck Lift - 34" (Continued) Parts Diagram
Ariens 04377600
WIREFORM, DRAG LINK
$24.99
$
In Stock, Qty 15
Ariens 04377700
WIREFORM, DECK ADJUSTMENT
$18.99
$
In Stock, Qty 7
Ariens 30193500
TRUNNION- DECK LIFT
$8.49
$
Usually ships in 4-12 days
Ariens 04424900
STRAP, DRAG LINK
$20.99
$
In Stock, only 3 left!
Ariens 06401013
WSHR,FLT .406X.812X.065 ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06500917
NUT-STD .375-16 G2 ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06700220
PIN, BOWTIE .091X1.875 ZCC
$2.99
$
In Stock, Qty 20+
Ariens 08553700
BSHG-SLV .391X.688X.52 PM
$6.49
$
In Stock, Qty 13
