915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Belt Guard and Baffle 34" Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

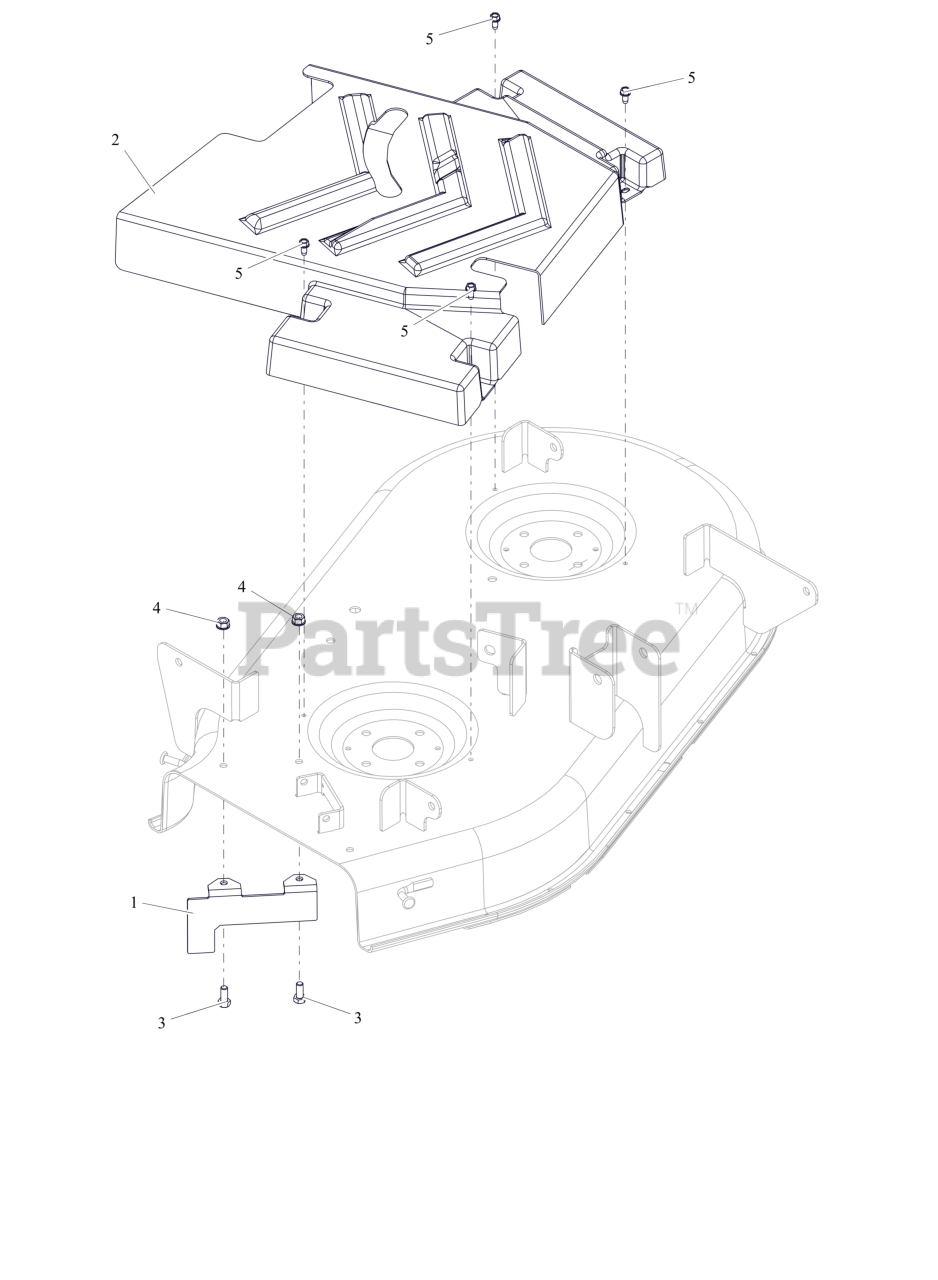

Belt Guard and Baffle 34" Parts Diagram

  • Title

1

Ariens 549311259

BRKT, BAFFLE , DISCHARGE 34"

$

$

Currently unavailable

2

Ariens 14810300

GUARD, CENTER EDGE 34 DECK

$

$

Currently unavailable

3

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 10

0

4

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 3 left!

0

5

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
