915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Control Panel Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

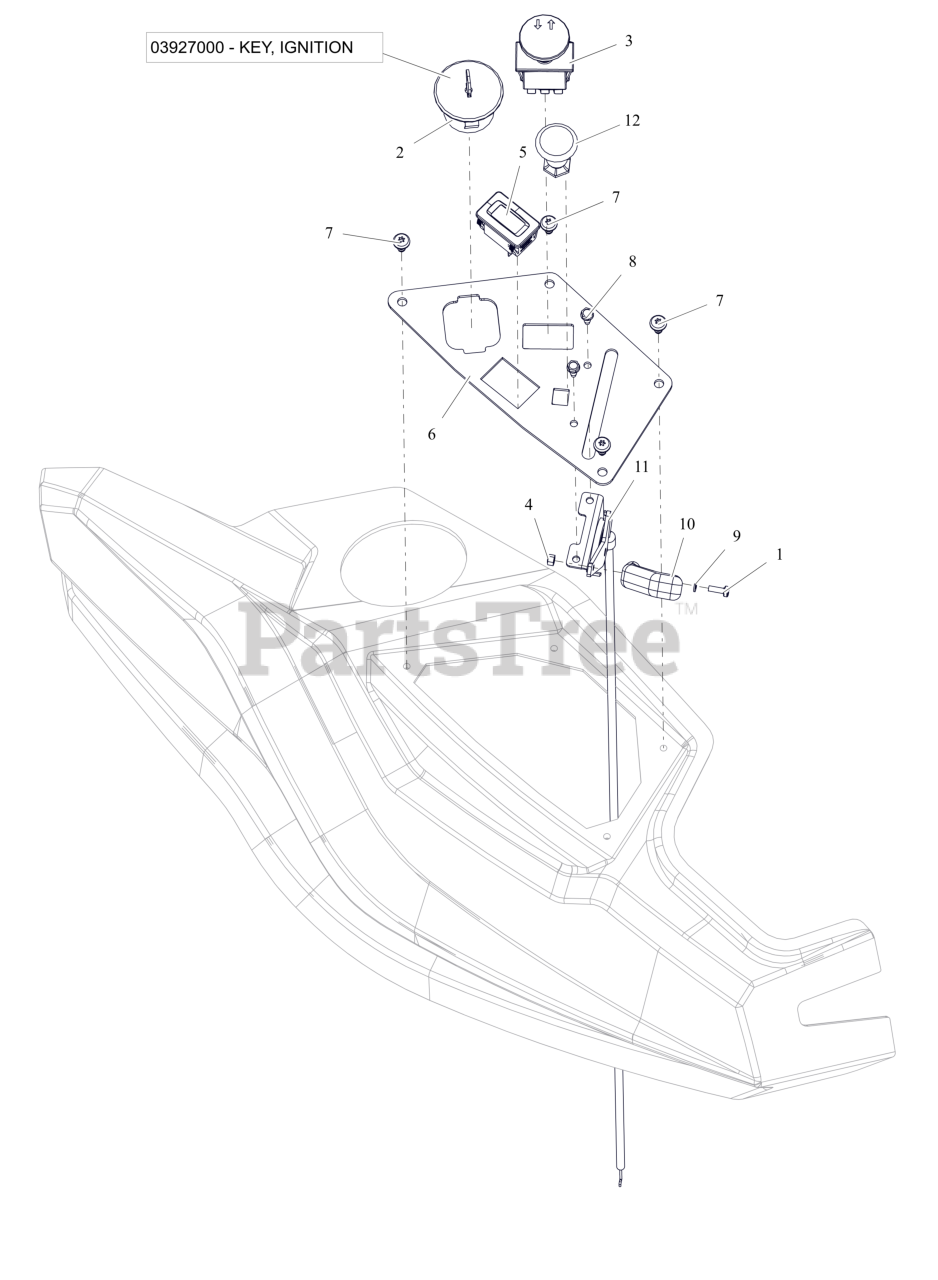

Control Panel Parts Diagram

  • Title

1

Ariens 02826300

M4 X 12 POZI PAN MACHINE SCREW

$

$

Currently unavailable

2

Ariens 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 11

0

2

Ariens 03927000

KEY, 03290500 KEYSWITCH

Note: Component Service Part

$10.99

$

In Stock, only 4 left!

0

3

Ariens 04399600

SWITCH, CLUTCH (YELLOW)

$23.99

$

In Stock, Qty 20+

0

4

Ariens 04826400

NUT, NYLOC M4

$

$

Currently unavailable

5

Ariens 05254800

HOUR METER
(Superseded to 09497400)

$25.99

$

In Stock, Qty 5

0

6

Ariens 05288059

PANEL, CONTROL (ORANGE)

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 3 left!

0

8

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

9

Ariens 08826200

CAP,TANK

$22.99

$

Usually ships in 4-12 days

0

10

Ariens 14810400

KNOB, CONTROL

$

$

Currently unavailable

11

Ariens 52804000

THROTTLE, LONCIN LC2P76F 635CC

$

$

Currently unavailable

12

Ariens 529469800

CABLE, CHOKE

$

$

Currently unavailable
