915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Engine - Ariens 635cc Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

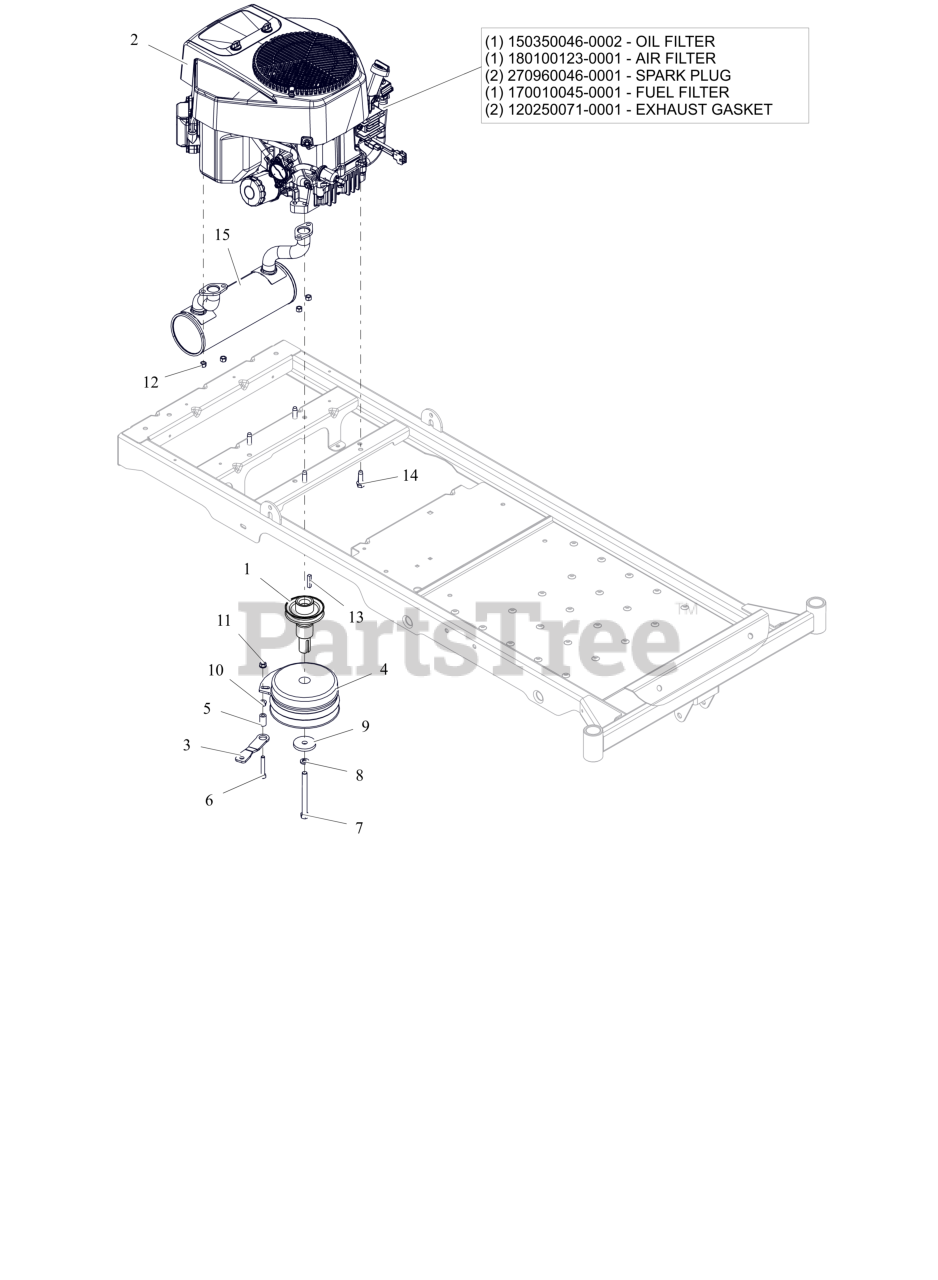

Engine - Ariens 635cc Parts Diagram

  • Title

1

Ariens 07350500

WLDMT, CRANK SHAFT ADAPTER- BRIGGS

$82.99

$

Usually ships in 4-12 days

0

2

Ariens 159340600

ENGINE, ARIENS 635cc

$

$

Currently unavailable

2

Ariens 150350046-0002

OIL FILTER

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 180100123-0001

AIR FILTER

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 270960046-0001

SPARK PLUG

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 170010045-0001

FUEL FILTER

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 120250071-0001

EXHAUST GASKET

Note: Component Service Part

$

$

Currently unavailable

3

Ariens 03956700

BRKT, CLUTCH

$

$

Currently unavailable

4

Ariens 03972700

CLUTCH, 105 FT*LB MONO POLE

$258.99

$

In Stock, only 1 left!

0

5

Ariens 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, only 1 left!

0

6

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 12

0

7

Ariens 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, only 1 left!

0

9

Ariens 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, Qty 19

0

10

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 3 left!

0

12

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 18

0

13

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

14

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 2 left!

0

15

Ariens 32112900

WLDMT, LONCIN MUFFLER 635CC

$

$

Currently unavailable
