915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Frame - 34" Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

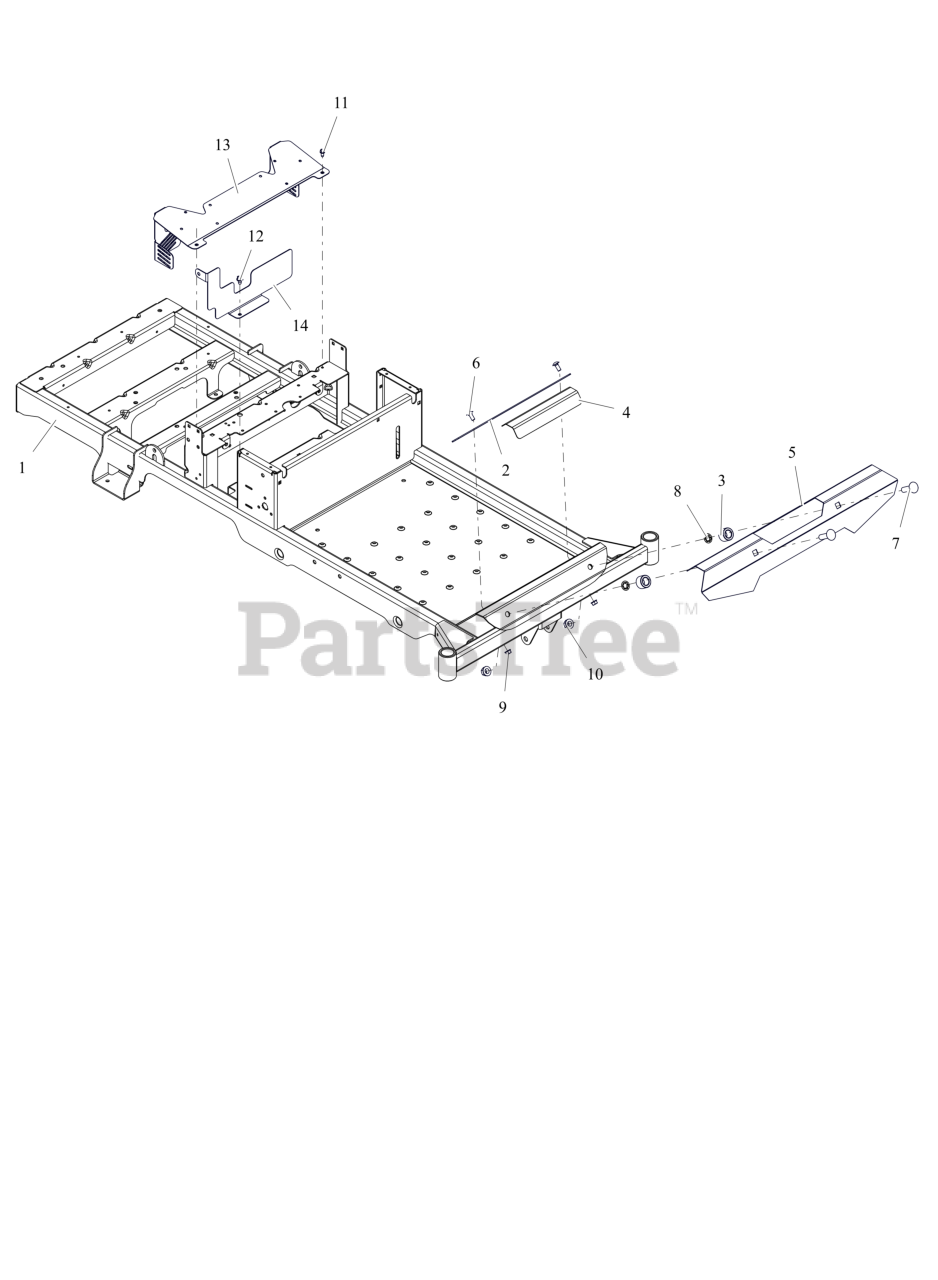

Frame - 34" Parts Diagram

  • Title

1

Ariens 51535500

KIT, EDGE FRAME W/DECALS

$747.99

$

Usually ships in 4-12 days

0

2

Ariens 03833800

GRIP, ADHESIVE (1" X 16" BLK)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 04192901

TUBE, UPPER CONTROL PIVOT

$6.99

$

Usually ships in 4-12 days

0

4

Ariens 05109100

GRIP, STEP

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 05291259

FOOTREST, (ORANGE)

$52.99

$

Usually ships in 4-12 days

0

6

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 9

0

7

Ariens 06200330

BLT,RHSN .50-13X1.75 G5 ZCC

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06500705

NUT-PUSH, .50

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 2 left!

0

10

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, Qty 20+

0

11

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 303012451

PLATE, FAN GUARD CE (BLACK)

$

$

Currently unavailable

14

Ariens 303013451

SHIELD, SEAT TRANSAXLE CE (BLACK)

$

$

Currently unavailable
