915339 - Ariens Edge 42" Zero-Turn Mower, Ariens AX 635cc engine (SN: 000101 - 000999) Fuel System Parts Diagram

Edge 42" Zero-Turn Mower, Ariens AX 635cc engine

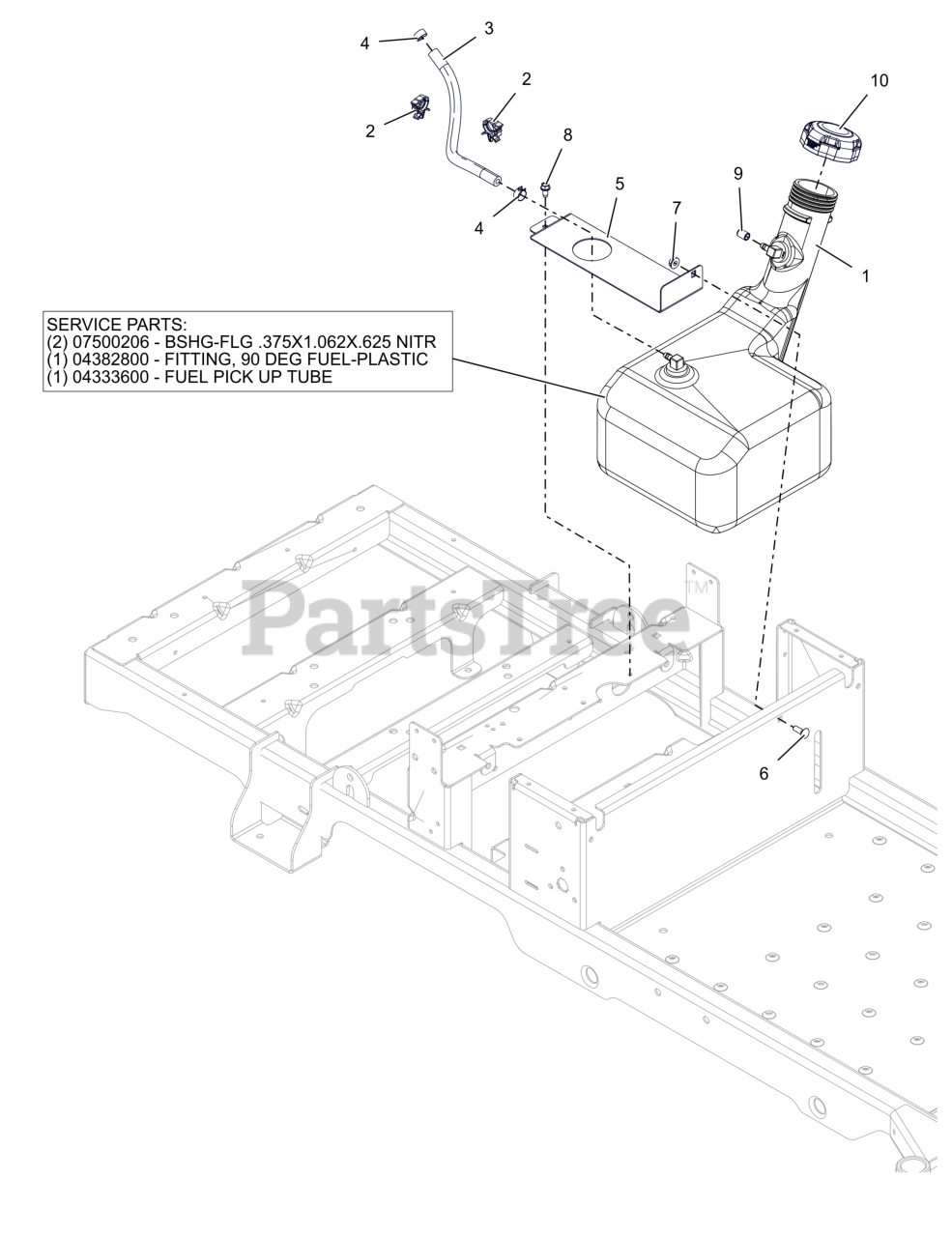

Fuel System Parts Diagram

  • Title

1

Ariens 05244700

ASM, FUEL TANK-ZOOM

$166.99

$

Usually ships in 4-12 days

0

1

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Component Service Part

$2.49

$

In Stock, Qty 20+

0

1

Ariens 04382800

FITTING, 90 DEG FUEL-PLASTIC

Note: Component Service Part

$6.49

$

In Stock, Qty 10

0

1

Ariens 04333600

FUEL PICK UP TUBE

Note: Component Service Part

$16.99

$

Usually ships in 4-12 days

0

2

Ariens 00390100

WIRE CLIP

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03771451

BRKT, TANK STRAP

$19.99

$

Usually ships in 4-12 days

0

6

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

In Stock, Qty 7

0

7

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

8

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07500604

CAP- FUEL OUTLET PORT

$9.99

$

Usually ships in 0 days

0

10

Ariens 09190200

CAP, FUEL - 2.25 RATCHET INLET VENT

$21.99

$

In Stock, Qty 20+

0
