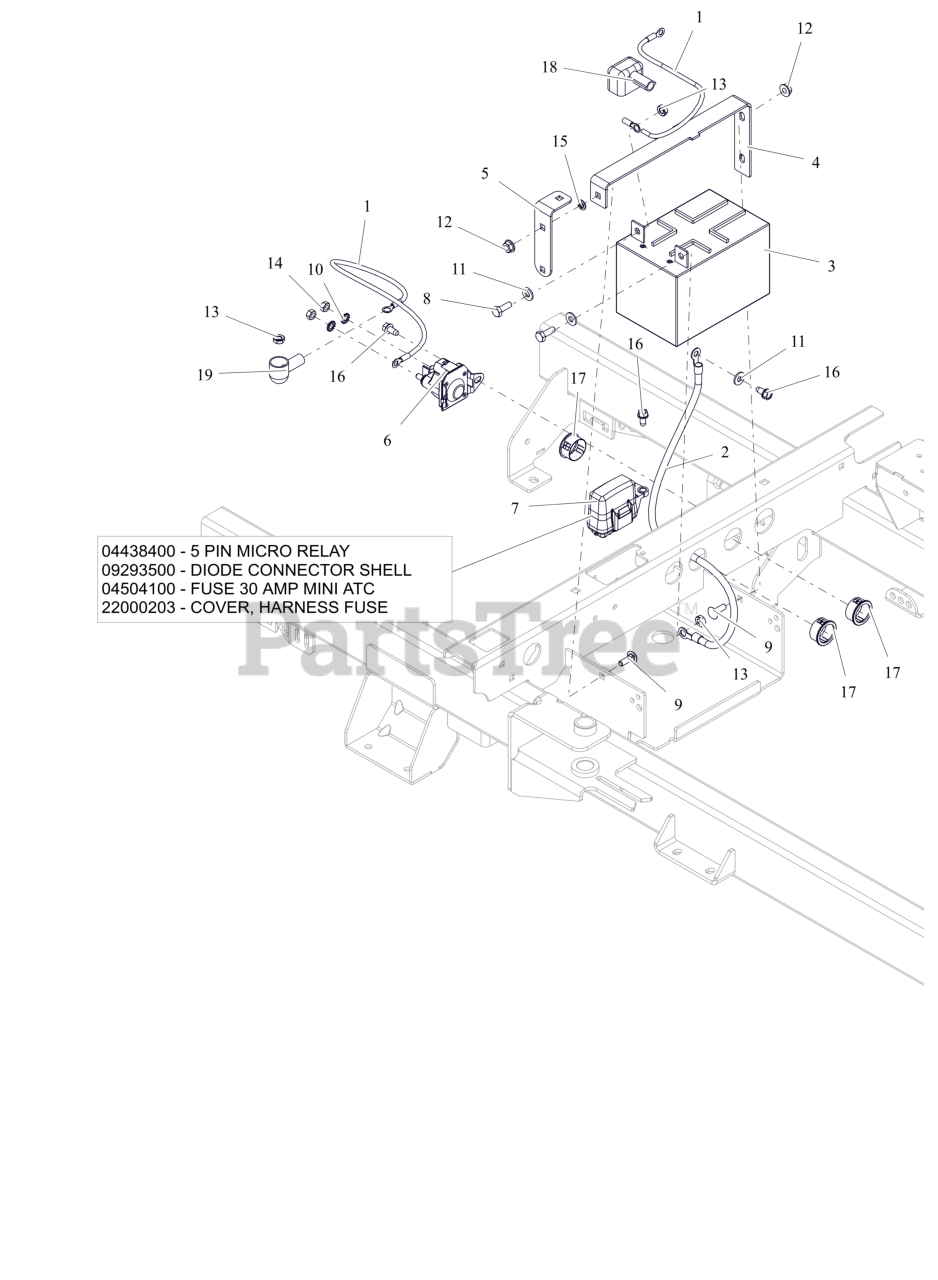

915342 - Ariens Ikon-XD 42" Zero-Turn Mower, 364cc Loncin (SN: A0396329 & Above) Electrical Parts Diagram

Ikon-XD 42" Zero-Turn Mower, 364cc Loncin

Electrical Parts Diagram

  • Title

1

Ariens 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$11.99

$

In Stock, only 2 left!

0

2

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$20.99

$

In Stock, only 3 left!

0

3

Ariens 04738800

BATTERY, 12V 12A-190CCA

$148.99

$

In Stock, Qty 20+

0

4

Ariens 04794651

BRKT, BATTERY HOLD-DOWN

$25.99

$

In Stock, only 1 left!

0

5

Ariens 04833651

BRKT, BATTERY HOLD DOWN

$21.99

$

In Stock, only 2 left!

0

6

Ariens 05167200

SOLENOID, STARTER (SEALED)

$47.99

$

In Stock, Qty 20+

0

7

Ariens 05295600

HARNESS, WIRE

$142.99

$

In Stock, only 2 left!

0

7

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

$21.99

$

In Stock, Qty 8

0

7

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

7

Ariens 04504100

FUSE,30 AMP MINI-ATC

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 22000203

COVER, FUSE

$10.99

$

Usually ships in 4-12 days

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

9

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

10

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

12

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 8

0

13

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.99

$

In Stock, only 1 left!

0

14

Ariens 06500925

NUT-STD M6-1.0 ZCC

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 6

0

16

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

19

Ariens 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 9

0
