915342 - Ariens Ikon-XD 42" Zero-Turn Mower, 364cc Loncin (SN: A0396329 & Above) Engine - Ariens 764cc Parts Diagram

Ikon-XD 42" Zero-Turn Mower, 364cc Loncin

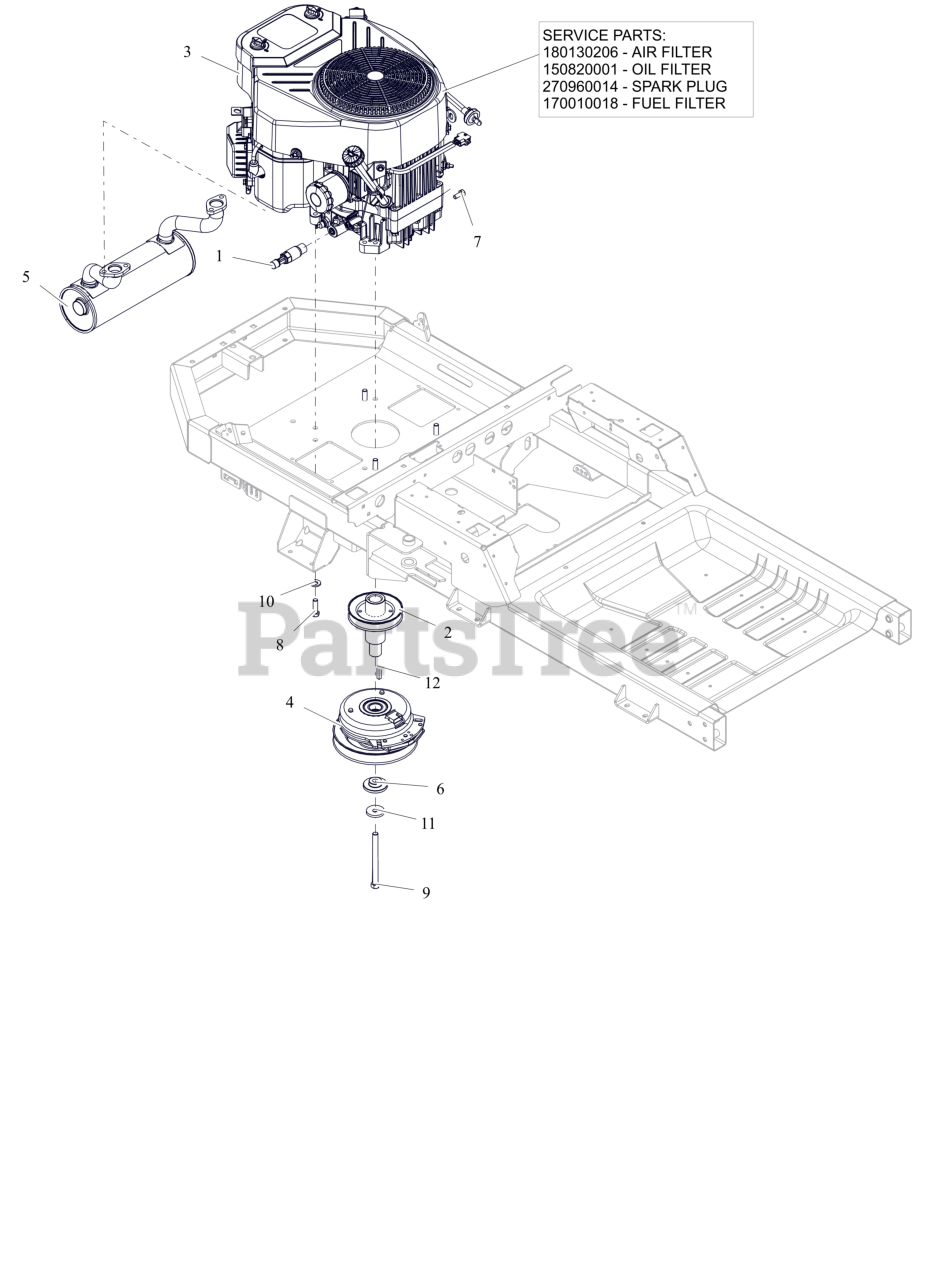

Engine - Ariens 764cc Parts Diagram

  • Title

1

Ariens 529473400

ASM, ENGINE OIL DRAIN VALVE KAWASAKI

$

$

Currently unavailable

2

Ariens 07350400

WLDMT, DRIVE SHEAVE (LONG)

$94.99

$

In Stock, only 3 left!

0

3

Ariens 159340800

ENGINE, LONCIN 764cc

$

$

Currently unavailable

3

Ariens 180130206

AIR FILTER

Note: Component Service Part

$

$

Currently unavailable

3

Ariens 150820001

OIL FILTER

Note: Component Service Part

$

$

Currently unavailable

3

Ariens 270960014

SPARK PLUG

Note: Component Service Part

$

$

Currently unavailable

3

Ariens 170010018

FUEL FILTER

Note: Component Service Part

$

$

Currently unavailable

4

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$263.99

$

In Stock, Qty 6

0

5

Ariens 329706000

ASM, LONCIN MUFFLER 2P80F

$

$

Currently unavailable

6

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 4 left!

0

7

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 05901823

BLT, HEX .44-20X5.00 G8 ZCC NT

$7.49

$

In Stock, Qty 10

0

10

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

12

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 7

0
