915342 - Ariens Ikon-XD 42" Zero-Turn Mower, 364cc Loncin (SN: A0396329 & Above) Rear Tires and Transaxles - 42" Parts Diagram

Ikon-XD 42" Zero-Turn Mower, 364cc Loncin

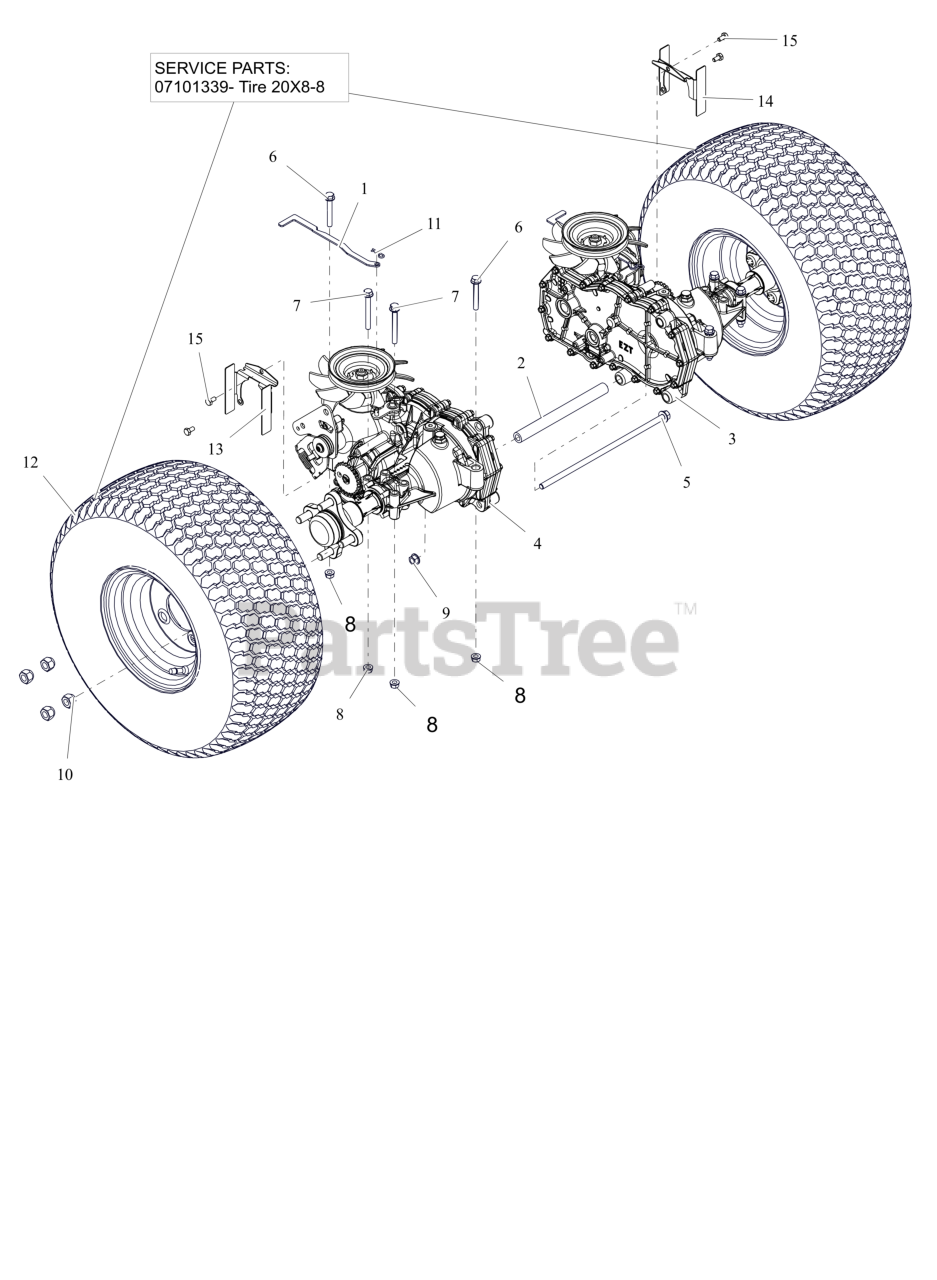

Rear Tires and Transaxles - 42" Parts Diagram

  • Title

1

Ariens 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

2

Ariens 05162451

TUBE, TRANSAXLE BRACE 8.18LG

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 05291800

TRANSAXLE

$1170.99

$

Usually ships in 4-12 days

0

4

Ariens 05291900

TRANSAXLE

$1158.99

$

Usually ships in 4-12 days

0

5

Ariens 05901902

BLT,HEX-FLG .38-16X11.5 G5 ZCC

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 3 left!

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 15

0

12

Ariens 07101337

ASSM TIRE\WHEEL, 20 X 8 -8

$148.99

$

In Stock, only 1 left!

0

12

Ariens 07101339

LAWN TIRE REAR, 4 PLY K505 20/8.00-8

Note: Component Service Part

$79.99

$

Usually ships in 4-12 days

0

13

Ariens 05091251

GUARD, PARKING BRAKE RH

$

$

Currently unavailable

14

Ariens 05092551

GUARD, PARKING BRAKE LH

$

$

Currently unavailable

15

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 5

0
