915342 - Ariens Ikon-XD 42" Zero-Turn Mower, 364cc Loncin (SN: A0396329 & Above) Transaxle Drive Parts Diagram

Ikon-XD 42" Zero-Turn Mower, 364cc Loncin

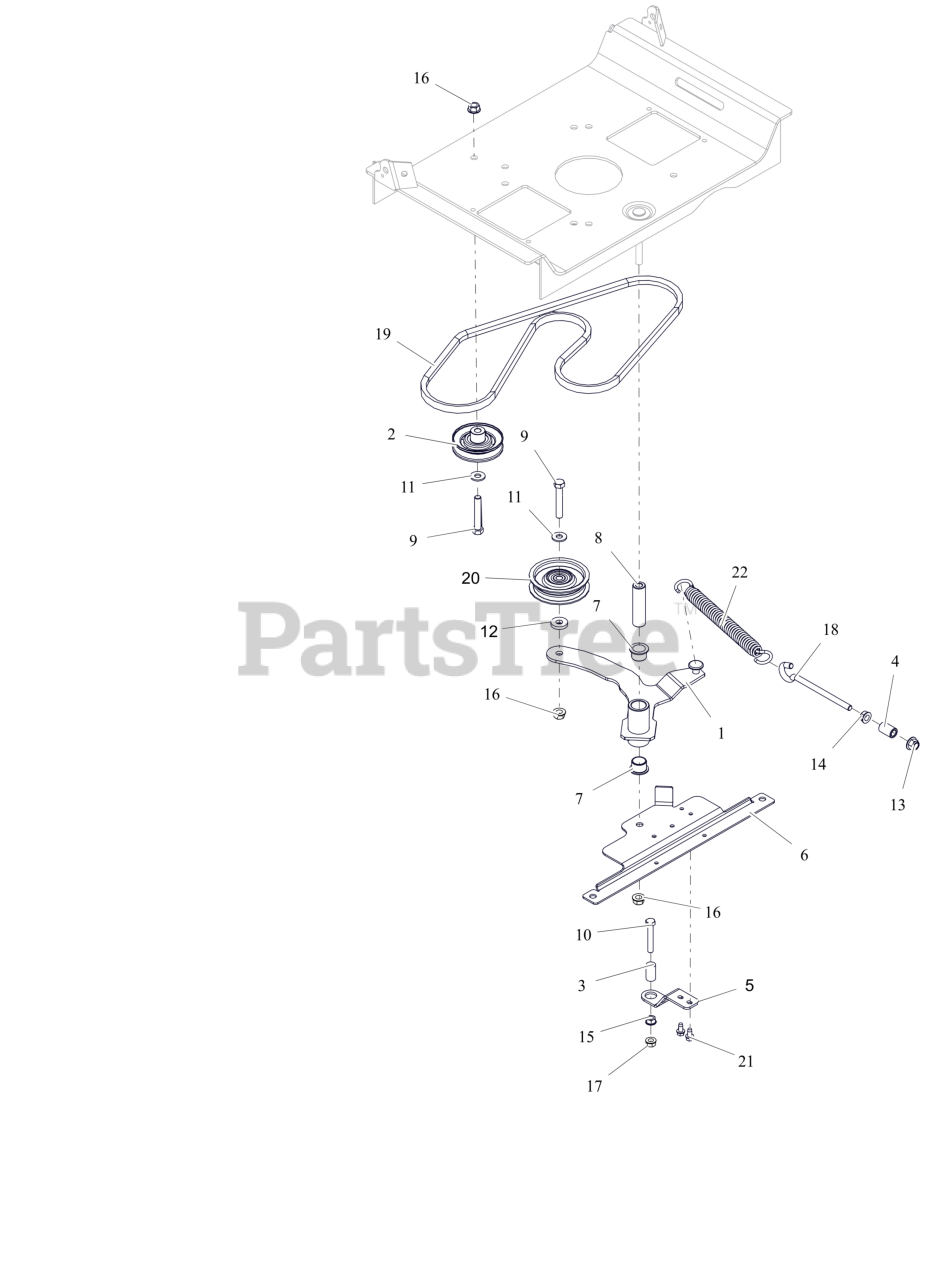

Transaxle Drive Parts Diagram

  • Title

1

Ariens 04890451

WLDMT,GRD DRIVE IDLER ARM-LGR

$60.99

$

In Stock, Qty 13

0

2

Ariens 07347200

IDLER, V-3.000 OD

$31.99

$

In Stock, Qty 13

0

3

Ariens 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.99

$

In Stock, Qty 9

0

4

Ariens 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

5

Ariens 04879351

BRKT, CLUTCH STOP (XL)

$19.99

$

In Stock, only 3 left!

0

6

Ariens 05240851

BRKT-IDLER ATTACHMENT

$19.99

$

Usually ships in 4-12 days

0

7

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.99

$

In Stock, Qty 20+

0

8

Ariens 05501237

BUSHING, SLEEVE .38X.750X2.78

$17.99

$

In Stock, Qty 5

0

9

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

10

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.99

$

In Stock, Qty 12

0

11

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$17.99

$

In Stock, only 2 left!

0

19

Ariens 07200718

V-BELT, A-RAW EDGE

$53.99

$

In Stock, Qty 20+

0

20

Ariens 07349900

SHEAVE, IDLER -V .38 x 4.00

$16.99

$

In Stock, Qty 10

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0
