915343 - Ariens Ikon-XD 52" Zero-Turn Mower, 364cc Loncin (SN: A0396329 & Above) Seat Parts Diagram

Ikon-XD 52" Zero-Turn Mower, 364cc Loncin

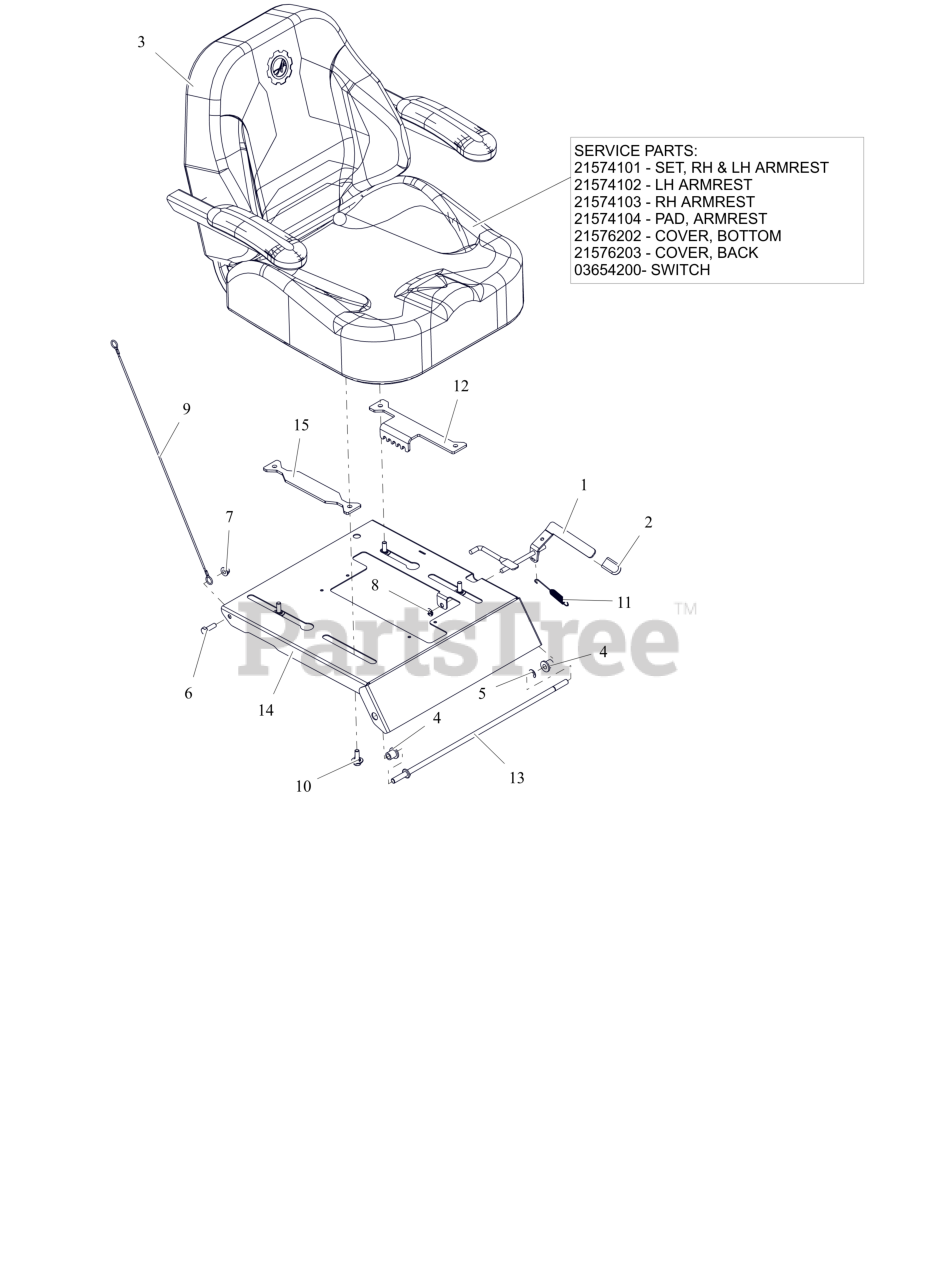

Seat Parts Diagram

  • Title

1

Ariens 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 05180900

SEAT- IKON XD

$488.99

$

Usually ships in 4-12 days

0

3

Ariens 21574101

SET, RH & LH ARMREST

Note: Component Service Part

$152.99

$

Usually ships in 4-12 days

0

3

Ariens 21574102

LH ARMREST

Note: Component Service Part

$116.99

$

Usually ships in 4-12 days

0

3

Ariens 21574103

RH ARMREST

Note: Component Service Part

$139.99

$

Usually ships in 4-12 days

0

3

Ariens 21574104

PAD, ARMREST

Note: Component Service Part

$118.99

$

Usually ships in 4-12 days

0

3

Ariens 21576202

COVER, BOTTOM

Note: Component Service Part

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 21576203

COVER, BACK

Note: Component Service Part

$111.99

$

Usually ships in 4-12 days

0

3

Ariens 03654200

SWITCH- SEAT

Note: Component Service Part

$15.99

$

In Stock, only 3 left!

0

4

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

5

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

7

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0

10

Ariens 07001930

BLT, SHLDR .31-18 X .100

$2.49

$

In Stock, Qty 20+

0

11

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0

12

Ariens 09387300

PLATE, ADJUSTABLE SEAT TRACK (BLACK)

$17.99

$

Usually ships in 4-12 days

0

13

Ariens 09448000

ROD- SEAT PIVOT

$12.99

$

Usually ships in 4-12 days

0

14

Ariens 09461059

PLATE, SEAT (ORANGE)

$51.99

$

Usually ships in 4-12 days

0

15

Ariens 09484351

PLATE, ADJUSTABLE SEAT TRACK (BLACK)

$11.99

$

Usually ships in 4-12 days

0
