915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Seat and Seat Support Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

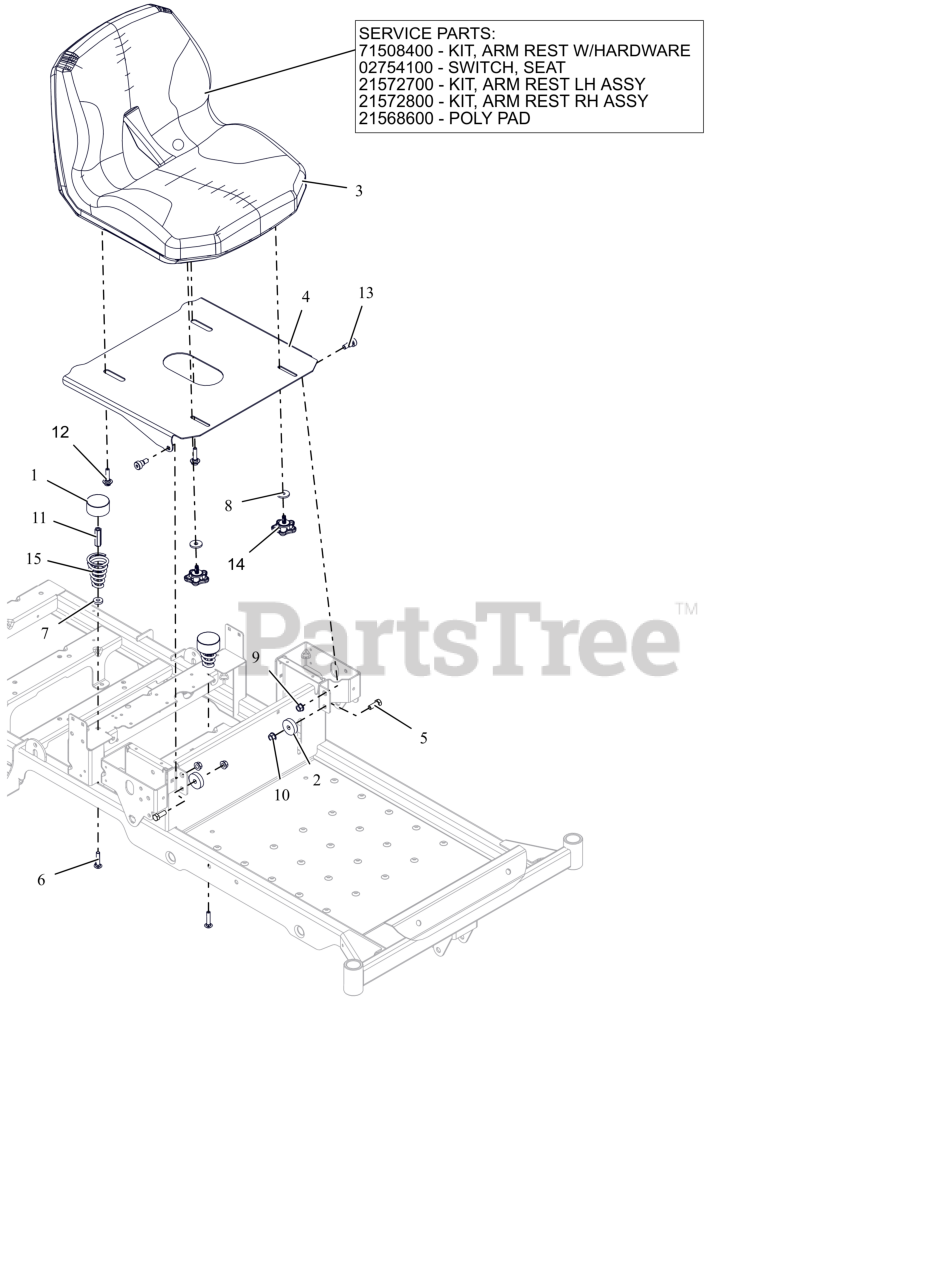

Seat and Seat Support Parts Diagram

  • Title

1

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

2

Gravely 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, Qty 17

0

3

Gravely 05286100

SEAT, EDGE 2020

$263.99

$

Usually ships in 4-12 days

0

3

Gravely 71508400

KIT- ARMREST - EDGE

Note: Component Service Part

$65.99

$

In Stock, only 1 left!

0

3

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.99

$

In Stock, Qty 20+

0

3

Gravely 21572700

KIT, ARM REST LH ASSY-PADDED

Note: Component Service Part

$

$

Currently unavailable

3

Gravely 21572800

KIT, ARM REST RH ASSY-PADDED

Note: Component Service Part

$

$

Currently unavailable

3

Gravely 21568600

POLY PAD - ZTX SEAT
(Superseded to 71508400)

Note: Component Service Part

$65.99

$

In Stock, only 1 left!

0

4

Gravely 05289253

PLATE- SEAT

$58.99

$

Usually ships in 4-12 days

0

5

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 13

0

7

Gravely 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, Qty 17

0

9

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500927

NUT, COUPLING .31-18X1.75 ZCC

$4.99

$

In Stock, only 1 left!

0

12

Gravely 07001929

BLT, SHLDR .31-18 X .175

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.49

$

In Stock, only 4 left!

0

14

Gravely 07500226

KNOB, WING STUDDED

$3.99

$

In Stock, Qty 20+

0

15

Gravely 08300021

SPRING, SEAT

$21.99

$

Usually ships in 4-12 days

0
