915345 (ZT 42) - Gravely 42" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Frame Parts Diagram
42" Zero-Turn Mower, Ariens AX 635cc Engine

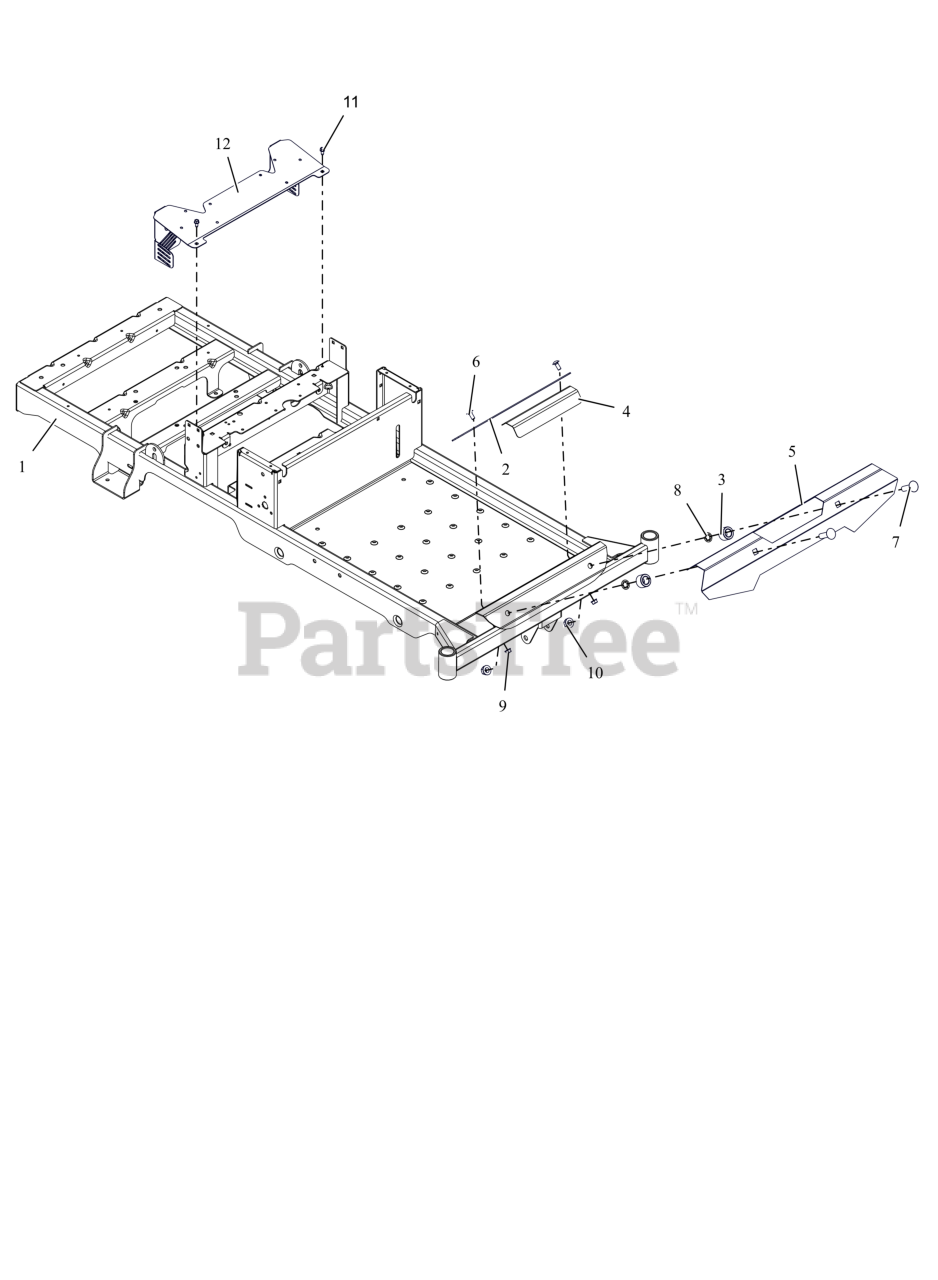

Frame Parts Diagram
Gravely 05288953
WLDMT- FRAME
$
$
Not available
Gravely 03833800
GRIP, ADHESIVE (1" X 16" BLK)
$3.99
$
Usually ships in 4-12 days
Gravely 04192901
TUBE, UPPER CONTROL PIVOT
$7.49
$
Usually ships in 4-12 days
Gravely 05109100
GRIP, STEP
$9.99
$
Usually ships in 4-12 days
Gravely 05291200
FOOTREST, RED
$
$
Currently unavailable
Gravely 06200309
BLT, RHSSN.31-18X.750 G5 ZCC
$2.99
$
In Stock, only 4 left!
Gravely 06200330
BLT,RHSN .50-13X1.75 G5 ZCC
$6.49
$
Usually ships in 4-12 days
Gravely 06500705
NUT-PUSH, .50
$3.99
$
Usually ships in 4-12 days
Gravely 06500840
NUT,LK-CTR-FLG .31-18 GF ZCC
$1.49
$
In Stock, Qty 19
Gravely 06500902
NUT-LK-CTR-FLG .500-13 GG ZCC
$1.49
$
In Stock, Qty 15
Gravely 07400122
SCR-TAP .25-20X.50 HWH ZCC
$0.99
$
In Stock, Qty 20+
Gravely 303012451
PLATE, FAN GUARD CE (BLACK)
$
$
Currently unavailable
