915402 (YJ 40) - EverRide Yellow Jacket 40" Zero-Turn Mower (SN: 000101 & Above) Baffles and Chute Parts Diagram

Yellow Jacket 40" Zero-Turn Mower

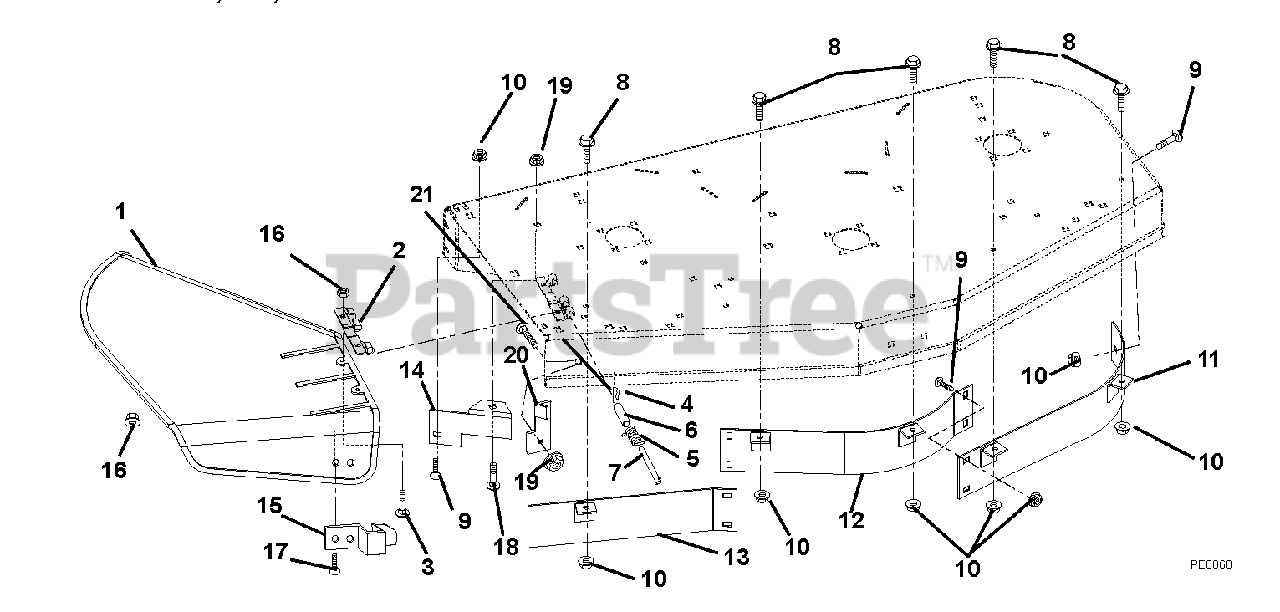

Baffles and Chute Parts Diagram

  • Title

1

Gravely 01585500

Deflector, Chute

$80.99

$

In Stock, Qty 5

0

2

Gravely 02709561

Hinge, Plate

$

$

Not available

3

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 06713500

Pin, Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 08307200

Spring, Torsion .095 x .50 x 1.00

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 02202900

Bushing, Sleeve

$6.49

$

In Stock, only 4 left!

0

7

Gravely 00475800

Pin, Clevis

$9.99

$

In Stock, Qty 10

0

8

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .31-18 x .75

$2.99

$

In Stock, Qty 5

0

9

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06545400

Nut-.312-18 Flange Nyloc
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 01576161

Weldment, Upper Left Baffle-40" (400)

Note: (400)

$

$

Not available

Gravely 01572461

Weldment, Upper Left Baffle-44" (401)

Note: (401)

$

$

Not available

Gravely 01574061

Weldment, Upper Left Baffle-48" (402)
(Superseded to 01574051)

Note: (402)

$81.99

$

In Stock, only 1 left!

0

12

Gravely 01576261

Weldment, Upper Center Baffle-40" (400)

Note: (400)

$

$

Not available

Gravely 01572561

Weldment, Upper Center Baffle-44" (401)

Note: (401)

$

$

Not available

Gravely 01574161

Weldment, Upper Center Baffle-48" (402)

Note: (402)

$

$

Not available

13

Gravely 01576361

Weldment, Upper Right Baffle-40" (400)

Note: (400)

$

$

Not available

Gravely 01572661

Weldment, Upper Right Baffle-44" (401)

Note: (401)

$

$

Not available

Gravely 01574261

Weldment, Upper Right Baffle-48" (402)

Note: (402)

$

$

Not available

14

Gravely 01576761

Deflector, 40" (400)

Note: (400)

$

$

Not available

Gravely 01574661

Deflector, 44"/48" (401, 402)

Note: (401, 402)

$

$

Not available

15

Gravely 01597761

Flat Spring

$

$

Not available

16

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

17

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

19

Gravely 06545500

Nut, Flange Nyloc .375-18
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 01599161

Bracket, Chute Lock

$

$

Not available

21

Gravely 06224200

Bolt, Round Head Square Neck .38-16 x 1.50
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0
