915402 (YJ 40) - EverRide Yellow Jacket 40" Zero-Turn Mower (SN: 000101 & Above) Mower Brackets and Rollers Parts Diagram

Yellow Jacket 40" Zero-Turn Mower

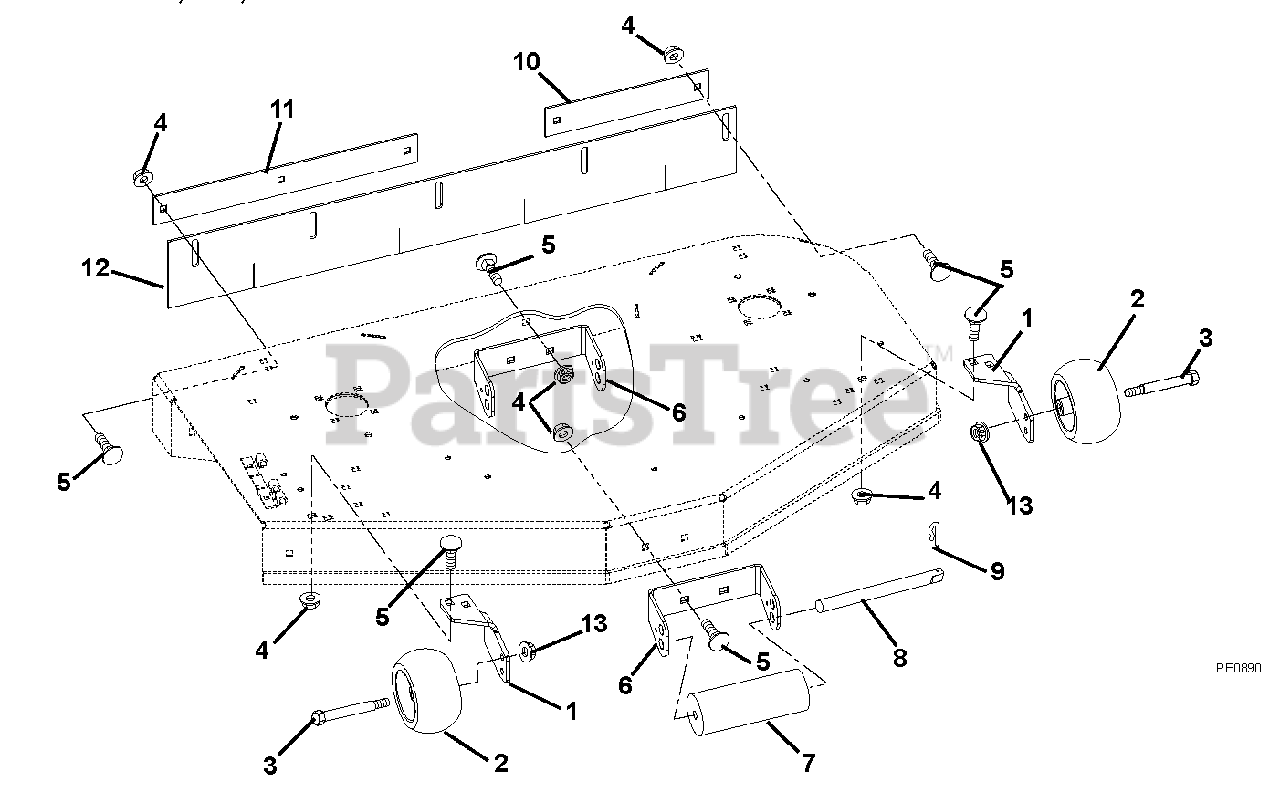

Mower Brackets and Rollers Parts Diagram

  • Title

1

Gravely 02950361

Bracket, Anti-Scalp

$

$

Not available

2

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

3

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$7.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, Qty 8

0

6

Gravely 00355661

Bracket, Roller Mount

$

$

Not available

7

Gravely 03114100

Roller

$23.99

$

In Stock, only 2 left!

0

8

Gravely 00356500

Pin, Roller

$35.99

$

In Stock, only 1 left!

0

9

Gravely 06714500

Pin, Spring Clip

$2.99

$

In Stock, Qty 20+

0

10

Gravely 01577461

Bar, Left Hand Retainer Striper

$

$

Not available

11

Gravely 01577661

Bar, Retaining Striper (401)

Note: (401)

$

$

Not available

Gravely 01577361

Bar, Retaining Striper (402)

Note: (402)

$

$

Not available

Gravely 01576961

Bar, Retaining Striper (400)

Note: (400)

$

$

Not available

12

Gravely 01577500

Striper, Rubber-44" (401)

Note: (401)

$80.99

$

Usually ships in 4-12 days

0

Gravely 01577000

Striper, Rubber-48" (402)

Note: (402)

$83.99

$

Usually ships in 4-12 days

0

Gravely 01576800

Striper, Rubber-40" (400)

Note: (400)

$62.99

$

Usually ships in 4-12 days

0

13

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
