915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 004999) Stabilizer And Roller Brackets With Roller Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

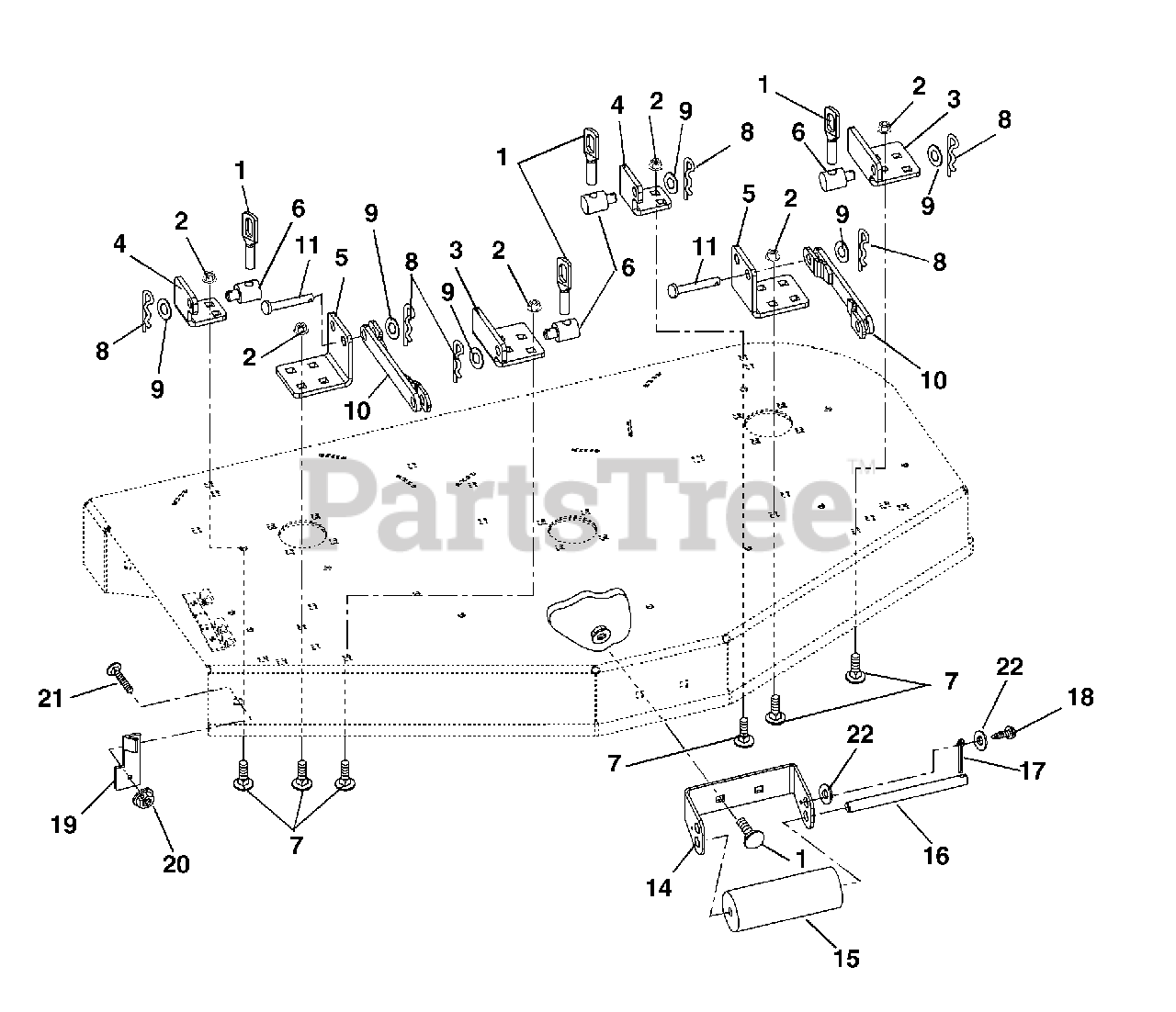

Stabilizer And Roller Brackets With Roller Parts Diagram

  • Title

1

Ariens 00160000

DECK LINK
(Superseded to 03967600)

$33.99

$

In Stock, Qty 6

0

2

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01590251

BRACKET, MOUNT,FRONT

$38.99

$

In Stock, only 2 left!

0

4

Ariens 01604551

BRACKET, REAR MOUNT

$46.99

$

Usually ships in 4-12 days

0

5

Ariens 01573551

BRACKET, STABILIZER

$33.99

$

Usually ships in 4-12 days

0

6

Ariens 01590400

TRUNNION-.50

$45.99

$

In Stock, Qty 8

0

7

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

9

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

10

Ariens 01573651

WMT, STABILIZER ARM
(Superseded to 00270200)

$26.99

$

Usually ships in 4-12 days

0

11

Ariens 03138100

PIN-CLEV .494X1.25 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 2 left!

0

12

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

14

Ariens 01572951

BRACKET, ROLLER MOUNT

$66.99

$

Usually ships in 4-12 days

0

15

Ariens 03114100

ROLLER

$22.99

$

In Stock, only 2 left!

0

16

Ariens 01575600

PIN, RETAINER

$55.99

$

Usually ships in 4-12 days

0

17

Ariens 06713000

@PIN-CTR .25X1.00 YWZC

$1.49

$

In Stock, only 3 left!

0

18

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 01599151

BRACKET, CHUTE LOCK

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0
