915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 - 009999) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

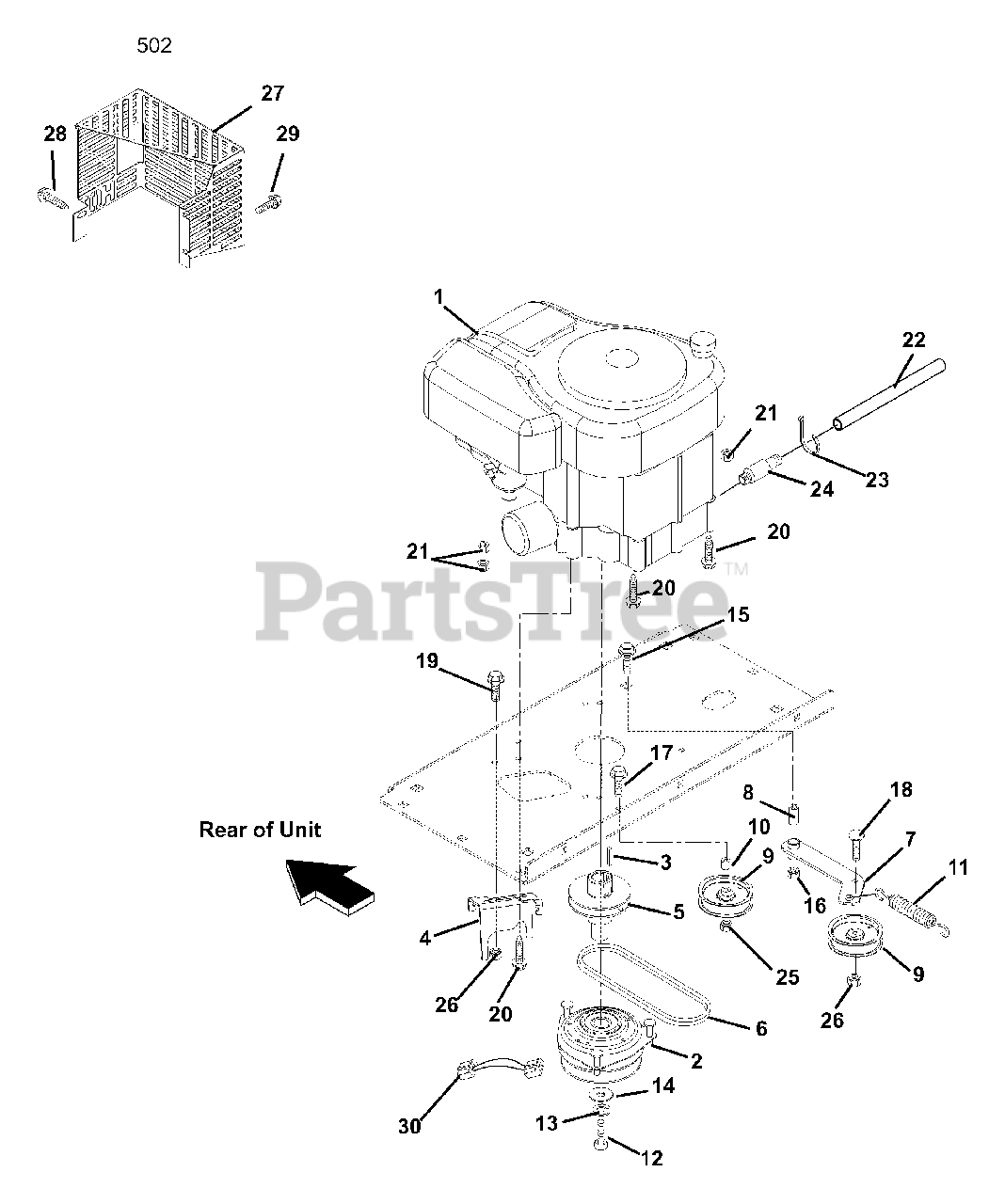

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 51512200

15HP B&S ENGINE (SERVICE ASSY)

$

$

Not available

2

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

$302.99

$

Usually ships in 4-12 days

0

3

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$4.99

$

Usually ships in 4-12 days

0

4

Ariens 00363751

STOP, CLUTCH

$52.99

$

In Stock, only 1 left!

0

5

Ariens 01602500

EXTENSION SHAFT
(Superseded to 00363200)

$329.99

$

Usually ships in 4-12 days

0

6

Ariens 07221000

V-BELT, HA-RAW EDGE

$34.99

$

In Stock, Qty 6

0

7

Ariens 00186300

WMT, IDLER
(Superseded to 51516000)

$168.99

$

Usually ships in 4-12 days

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 11

0

9

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

10

Ariens 00186400

BSHG,SPCR .41 X .75 X .88 PM

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

12

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, only 3 left!

0

13

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

14

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

15

Ariens 06225500

@BLT-RDHDSQNK .50-13X2.50 G5YZ

$6.49

$

Usually ships in 4-12 days

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

18

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

19

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 00191400

TUBE, OIL DRAIN

$9.99

$

Usually ships in 4-12 days

0

23

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

24

Ariens 07067800

VALVE, OIL DRAIN

$40.99

$

Usually ships in 4-12 days

0

25

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 01596700

MUFFLER GUARD, 31CI

Note: (502)

$

$

Not available

28

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (502)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07049500

BLT-SERHFWH .312-18X.50 YWZC

Note: (502)

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 09087000

ADAPTER, CLUTCH HARNESS

$

$

Not available
