915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 020000 & Above) Frame, Hood, Footrest, Casters And Tires Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

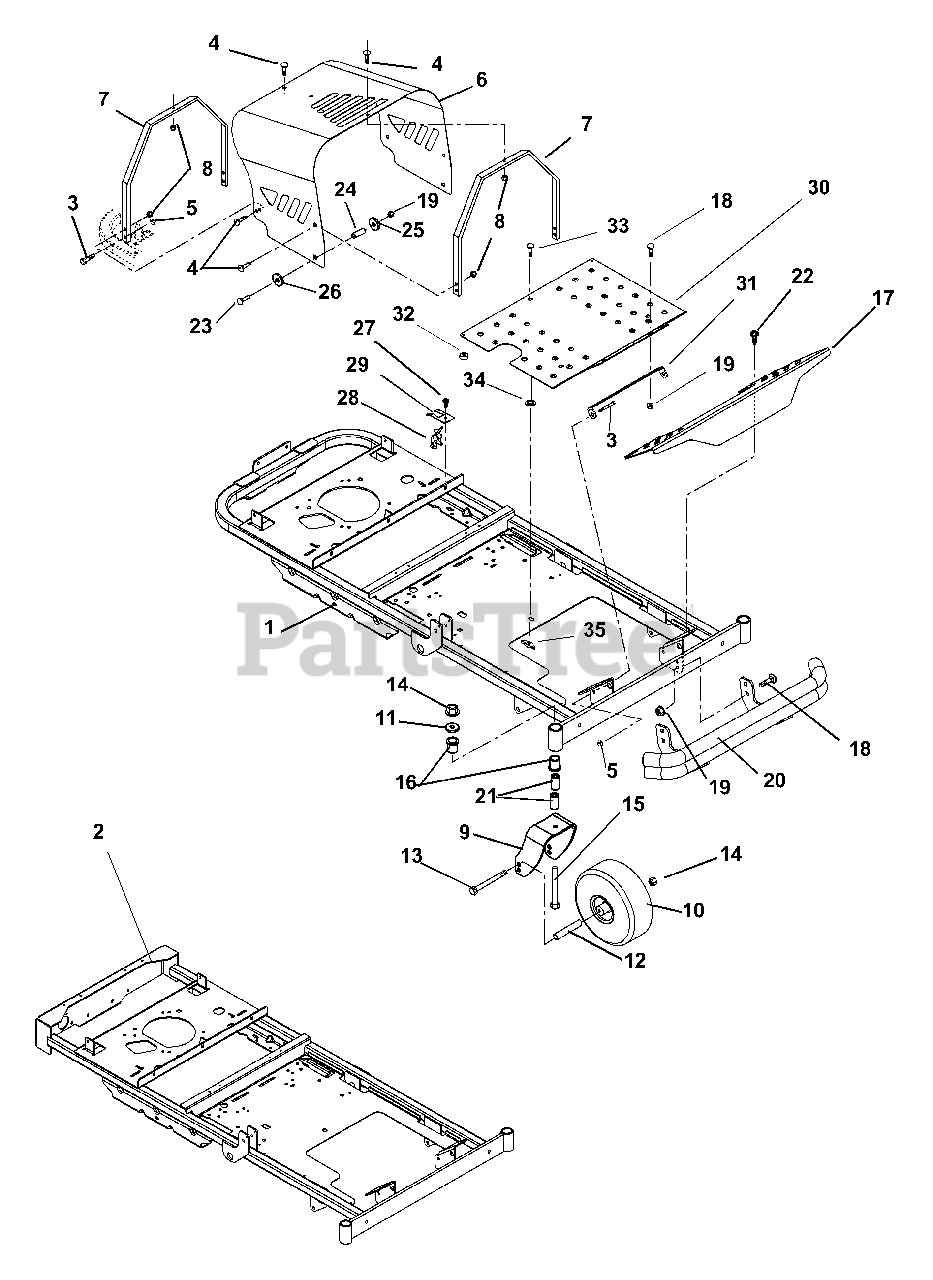

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Ariens 00458351

WMT, FIXED AXLE FRAME

Note: (075, 077)

$

$

Not available

2

Ariens 00458751

WMT, FRAME (CE FIXED)

Note: (502)

$

$

Not available

3

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

4

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

6

Ariens 00454259

ENGINE HOOD, CE ZOOM

$

$

Not available

7

Ariens 01605151

BRACE, HOOD

$114.99

$

In Stock, only 1 left!

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00469351

FORK, CASTER- WELDED
(Superseded to 03368551)

$72.99

$

In Stock, only 2 left!

0

10

Ariens 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$74.99

$

In Stock, Qty 13

0

11

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 13

0

12

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

13

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 18

0

14

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 19

0

16

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

17

Ariens 00457859

FOOTREST

$

$

Not available

18

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

19

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00482151

WMT, BUMPER

$

$

Not available

21

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$5.99

$

In Stock, Qty 20+

0

22

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 7

0

24

Ariens 00363800

BSHG, SPCR .390X.625X1.25 PM

$18.99

$

In Stock, only 1 left!

0

25

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

26

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00366700

HOOD CLIP

$9.49

$

In Stock, only 3 left!

0

29

Ariens 00372700

BRACKET, HOOD CLIP

$29.99

$

Usually ships in 4-12 days

0

30

Ariens 00457951

PLATE, DECK ACCESS

$

$

Not available

31

Ariens 00458051

BRACKET, DECK ACCESS

$

$

Not available

32

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 2 left!

0

33

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

34

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

35

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$7.99

$

In Stock, Qty 11

0
