915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Baffles and Chute Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

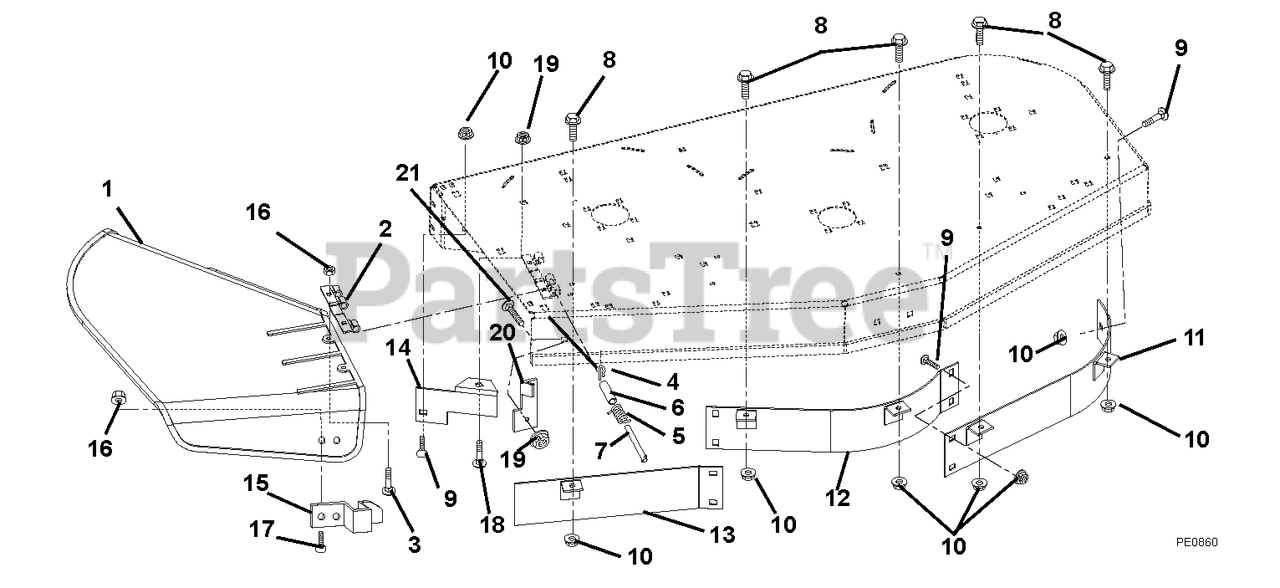

Baffles and Chute Parts Diagram

  • Title

1

Ariens 01585500

DEFLECTOR, CHUTE

$78.99

$

In Stock, Qty 5

0

2

Ariens 02709563

HINGE PLATE

$

$

Not available

3

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

5

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, Qty 6

0

7

Ariens 00475800

PIN, 5/16 X 5.80"

$9.49

$

In Stock, only 3 left!

0

8

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 13

0

9

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

10

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

11

Ariens 01576163

BAFFLE-LEFT FRONT-40"

Note: (600)

$

$

Not available

Ariens 01572463

BAFFLE-LEFT FRONT-44"

Note: (601)

$

$

Not available

Ariens 01574063

BAFFLE-LEFT FRONT 48"

Note: (602)

$

$

Not available

12

Ariens 01576263

BAFFLE-CENTER FRONT-40"

Note: (600)

$

$

Not available

Ariens 01572563

BAFFLE-CENTER FRONT-44"

Note: (601)

$

$

Not available

Ariens 01574163

BAFFLE-CENTER FRONT 48"

Note: (602)

$

$

Not available

13

Ariens 01576363

BAFFLE-RIGHT FRONT-40"

Note: (600)

$

$

Not available

Ariens 01572663

BAFFLE-RIGHT FRONT-44"

Note: (601)

$

$

Not available

Ariens 01574263

BAFFLE-RIGHT FRONT 48"

Note: (602)

$

$

Not available

14

Ariens 01576763

DEFLECTOR, 40" (400)

Note: (600)

$

$

Not available

Ariens 01574663

DEFLECTOR 44"/48" (401, 402)

Note: (601, 602)

$

$

Not available

15

Ariens 01597763

FLAT SPRING

$

$

Not available

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

17

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

18

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

19

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01599163

BRACKET, CHUTE LOCK

$

$

Not available

21

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0
