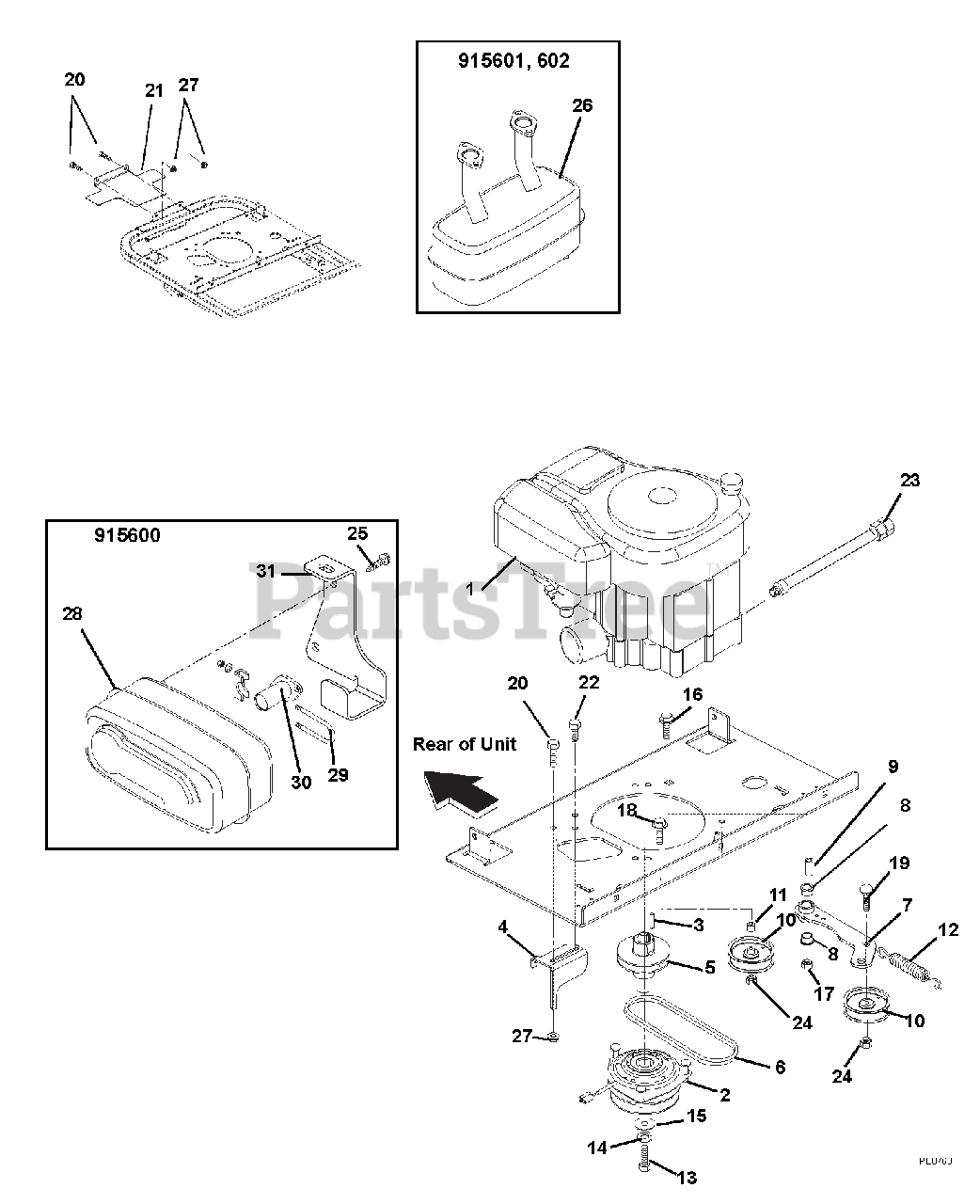

915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Engine, Exhaust, Belts and Idlers Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Engine, Exhaust, Belts and Idlers Parts Diagram

  • Title

1

Ariens 08200104

ENGINE, 18 HP KOHLER SINGLE

Note: (915600)

$

$

Not available

1

Ariens 08200105

ENGINE, 20 HP KOHLER COUR TWIN

Note: (915601)

$

$

Not available

1

Ariens 08200106

ENGINE, 23 HP KOHLER COUR TWIN

Note: (915602)

$

$

Not available

2

Ariens 00191700

CLUTCH,ELECTRIC PTO

$362.99

$

Usually ships in 4-12 days

0

3

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 00363751

STOP, CLUTCH

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 00363200

EXTENSION, CRANK SHAFT

$323.99

$

Usually ships in 4-12 days

0

6

Ariens 07241400

BELT,HA WRAPPED

$51.99

$

In Stock, only 4 left!

0

7

Ariens 00473500

WMT, IDLER ARM

$129.99

$

In Stock, only 1 left!

0

8

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.49

$

In Stock, Qty 17

0

9

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, Qty 10

0

10

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 14

0

11

Ariens 00186400

BSHG,SPCR .41 X .75 X .88 PM

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$15.99

$

In Stock, Qty 16

0

13

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 10

0

14

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

15

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

16

Ariens 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

17

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 7

0

19

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 19

0

20

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00276651

HEAT SHIELD, TWIN

Note: (915601, 602)

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (915600)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (915601, 602)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 00595900

HOSE, HYD .38-15-0K M6N0-F6J0

$44.99

$

Usually ships in 4-12 days

0

24

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915600)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 00391700

MUFFLER, TWIN KOHLER (EES)

Note: (915601, 602)

$134.99

$

In Stock, only 4 left!

0

27

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (915601, 602)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (915600)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 00435100

MUFFLER, KOHLER SINGLE

Note: (915600)

$92.99

$

In Stock, only 4 left!

0

29

Ariens 00255400

MUFFLER CLAMP

Note: (915600)

$6.49

$

In Stock, Qty 6

0

30

Ariens 00253900

WMT, MANIFOLD
(Superseded to 00440000)

Note: (915600)

$44.99

$

In Stock, only 2 left!

0

31

Ariens 00432000

BRKT, MUFFLER (KOHLER COURAGE)

Note: (915600)

$20.99

$

Usually ships in 4-12 days

0

32

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (915600)

$3.99

$

In Stock, Qty 20+

0

32

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (915601, 602)

$3.99

$

In Stock, Qty 20+

0
