916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above)

AMP 34" Rear-Engine Rider, Battery Powered

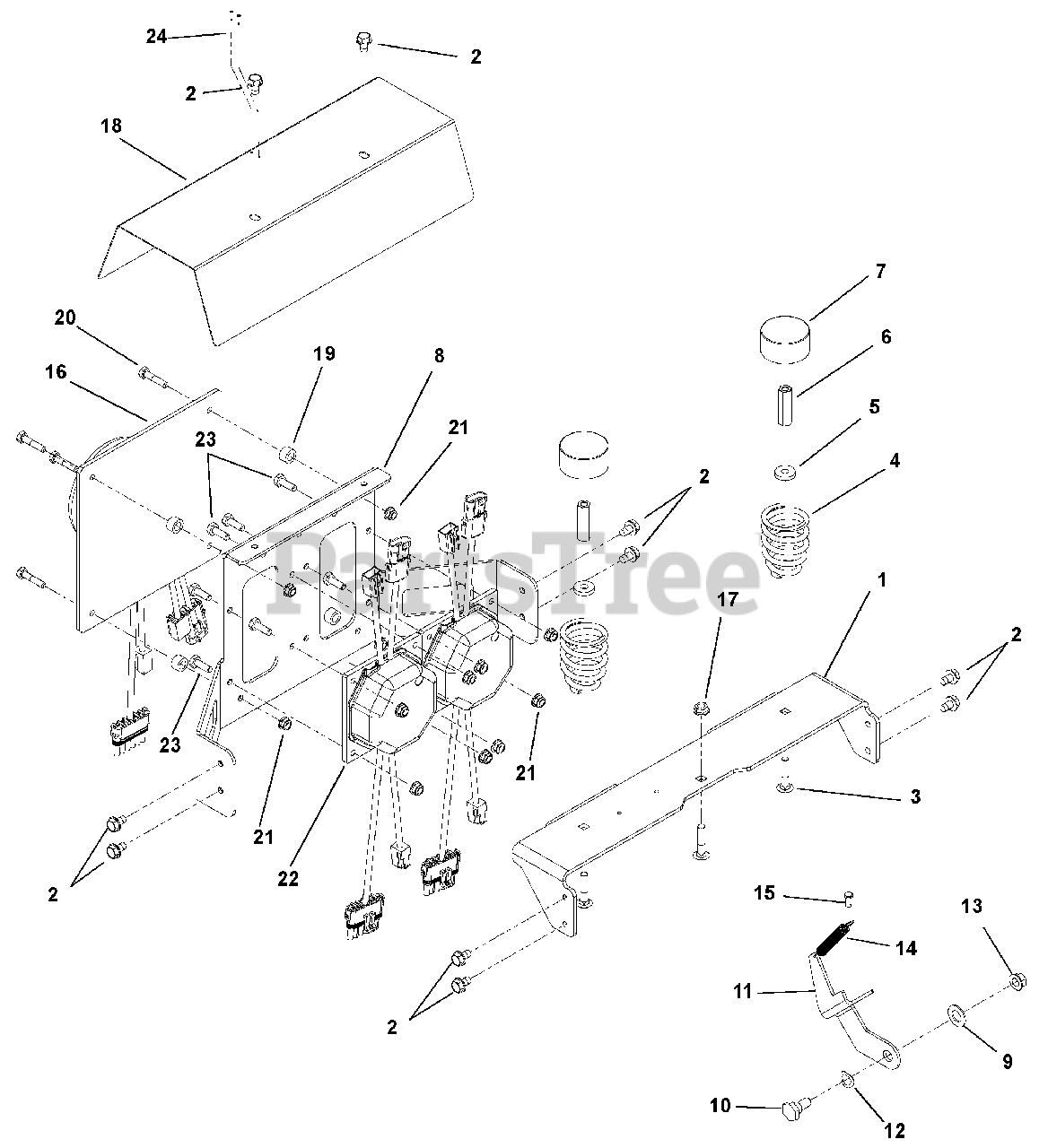

916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above) > Parts Diagrams (14) > Controllers And Seat Suspension

  • Title
03367351

1

BRKT, SEAT SPRING

Part# 03367351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

07411500

2

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06212100

3

@BLT-RDHDSQNK .31-18X1.50 G5YZ

Part# 06212100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

08300021

4

SPRING, SEAT

Part# 08300021

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

06439100

5

WSHR-FL-STL .328X.87X.179 YWZC

Part# 06439100

OEM Warranty Repair Part for Ariens

Not available

06500015

6

NUT, COUPLING 5/16-18 X 1 3/4

Part# 06500015

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00337700

7

HUB CAP

Part# 00337700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03381251

8

SUPPORT, CONTROLLER

Part# 03381251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

06425300

9

WSHR-FL-STL.531X1.00X.063 YWZC

Part# 06425300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07000034

10

BLT,SHLDR EP .38-16X.30 HEX YZ

Part# 07000034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

03826451

11

LATCH, SEAT

Part# 03826451

OEM Warranty Repair Part for Ariens

Not available

06400005

12

WSHR-WAVE .50X.75X.015 .13FRHT

Part# 06400005

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06542000

13

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

08314900

14

SG-TENS .035X.45X2.75 WLD 3.5

Part# 08314900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06809700

15

PIN-CLEV .250X.406

Part# 06809700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03829500

16

ASSY, DRIVE CONTROLLER

Part# 03829500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $467.24

06543100

17

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

03835151

18

SHIELD, WATER

Part# 03835151

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

05522100

19

BSHG-SLV .377X.624X.370

Part# 05522100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

05947400

20

@BLT-HEX .25-20X1.25 GR5 YWZC

Part# 05947400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06500012

21

@NUT-LK-NYL-FLG .25-20 YWZC

Part# 06500012

OEM Warranty Repair Part for Ariens

Not available

03829600

22

ASSY-DECK MOTOR CONTROLLER

Part# 03829600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $464.34

05946800

23

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

OEM Warranty Repair Part for Ariens

Not available

07400102

24

SCR-TAP 6-32X.75 PH PAN HD

Part# 07400102

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47
