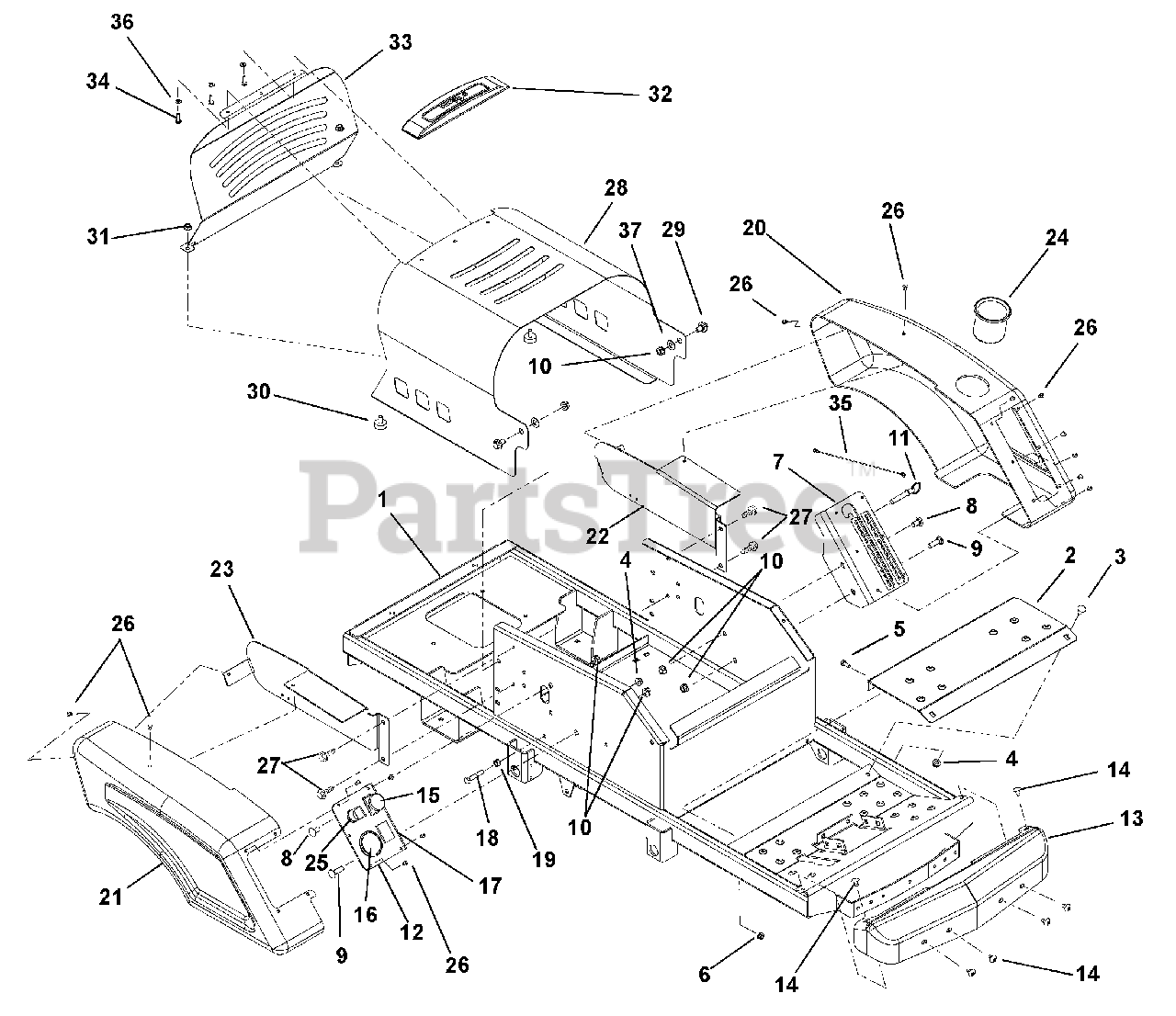

916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above) Frame, Body And Gauges Parts Diagram

AMP 34" Rear-Engine Rider, Battery Powered

Frame, Body And Gauges Parts Diagram

  • Title

1

Ariens 03293359

WELDMENT, FRAME

$

$

Not available

2

Ariens 03379651

FOOTREST

$

$

Not available

3

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05932000

BLT-HEX .25-20X.63

$1.99

$

In Stock, only 1 left!

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

7

Ariens 03390251

WELDMENT, CUT HEIGHT BRACKET

$

$

Not available

8

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

9

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

In Stock, only 2 left!

0

12

Ariens 03782151

PANEL, CONTROL (AMP)

$

$

Not available

13

Ariens 03379500

BUMPER, PLASTIC FRONT

$

$

Not available

14

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 19

0

16

Ariens 03796800

METER, AMPERE (-80-0A)

$

$

Not available

17

Ariens 03796700

METER, BATTERY DISCHARGE 48V

$56.99

$

Usually ships in 4-12 days

0

18

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

19

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

20

Ariens 03826300

FENDER, AMP - LH

$

$

Not available

21

Ariens 03826200

FENDER, AMP - RH

$

$

Not available

22

Ariens 03826651

PLATE, FENDER SUPPORT-LH

$

$

Not available

23

Ariens 03826551

PLATE, FENDER SUPPORT - RH

$

$

Not available

24

Ariens 01528500

CUPHOLDER

$15.99

$

In Stock, only 3 left!

0

25

Ariens 03796600

SWITCH-IGNITION 2-POS W/KEY

$15.99

$

Usually ships in 4-12 days

0

26

Ariens 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 12

0

27

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03398359

HOOD, AMP

$

$

Not available

29

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

30

Ariens 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

31

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

32

Ariens 03755000

TRIM-HOOD, ARIENS SMALL

$9.99

$

Usually ships in 4-12 days

0

33

Ariens 03826751

PLATE, BACK HOOD

$

$

Not available

34

Ariens 07400035

SCREW,PHLPS PAN HEAD 12-11X5/8

$3.49

$

Usually ships in 4-12 days

0

35

Ariens 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

36

Ariens 06423600

WSHR-FL-STL.250X.500X.049 WYZC

$

$

Not available

37

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 17

0
