916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above) Mower Deck, Motors And Blades Parts Diagram

AMP 34" Rear-Engine Rider, Battery Powered

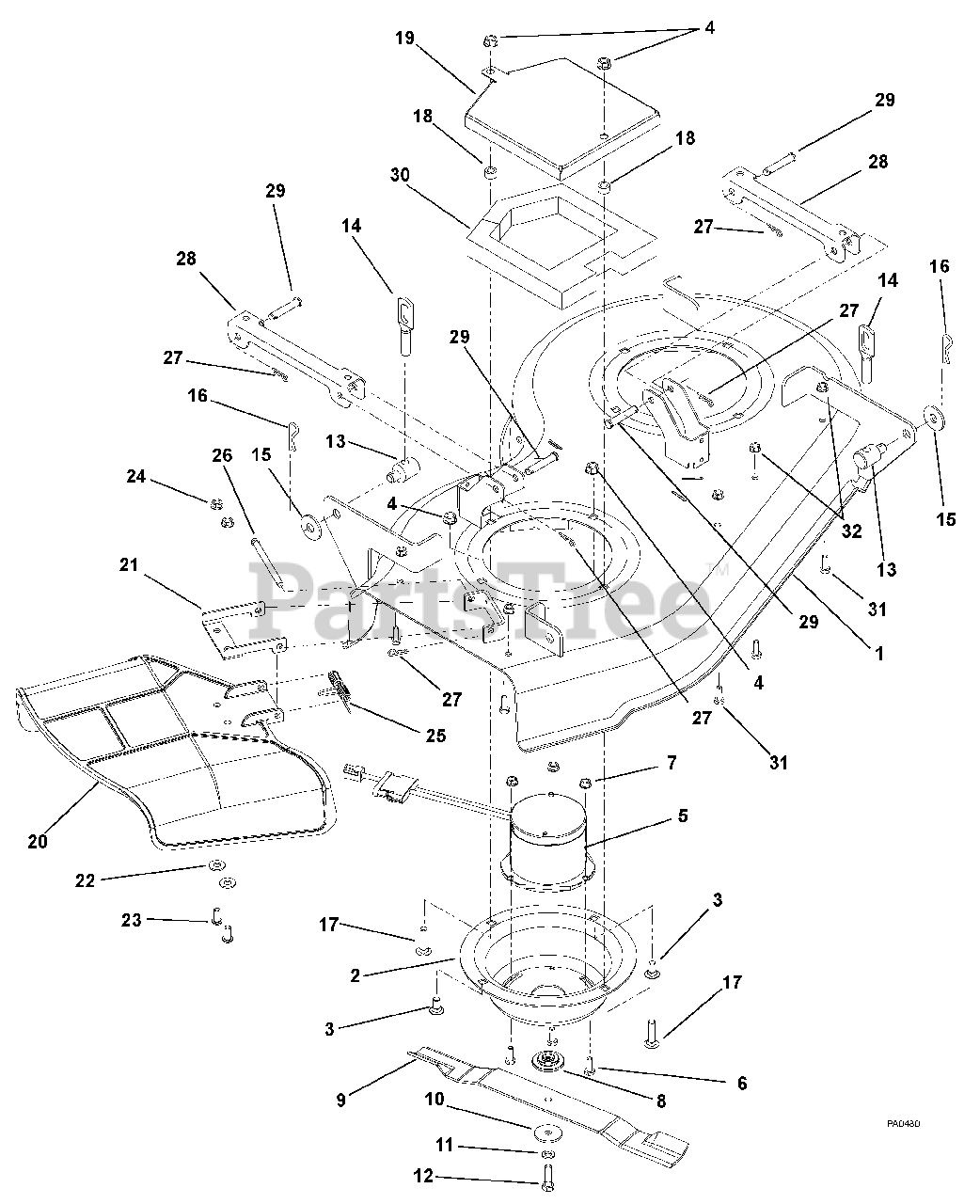

Mower Deck, Motors And Blades Parts Diagram

  • Title

1

Ariens 03299459

34" STAMPED DECK ELECTRIC

$

$

Not available

2

Ariens 03372359

SUMP,DECK -AMP

$

$

Not available

3

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, Qty 5

0

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03729200

MOTOR, 1.7 HP ELEC. BRUSHLESS

$246.99

$

Usually ships in 4-12 days

0

6

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 10

0

7

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

8

Ariens 03722300

ADAPTER, MOWER BLADE

$

$

Not available

9

Ariens 01968000

BLADE, MOWER - 17.38

$13.99

$

Usually ships in 4-12 days

0

10

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 3 left!

0

11

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

12

Ariens 05930900

BLT-HEX .38-24X1.25 GR8 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 01590400

TRUNNION-.50

$45.99

$

In Stock, Qty 8

0

14

Ariens 00160000

DECK LINK
(Superseded to 03967600)

$33.99

$

In Stock, Qty 6

0

15

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

17

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05500916

BSHG-SPCR .380X.625X.625

$

$

Not available

19

Ariens 03768059

COVER, MOTOR

$

$

Not available

20

Ariens 00499900

MOLDED CHUTE, ZOOM
(Superseded to 03994300)

$54.99

$

In Stock, only 4 left!

0

21

Ariens 00662651

CHUTE REINFORCEMENT

$22.99

$

In Stock, only 1 left!

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 3 left!

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 01258100

SPRING, TORSION

$9.49

$

In Stock, only 1 left!

0

26

Ariens 06800002

PIN, 5/16 X 3.88"

$9.49

$

In Stock, only 4 left!

0

27

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 15

0

28

Ariens 03764059

BRKT-STABILIZER LINK

$51.99

$

Usually ships in 4-12 days

0

29

Ariens 06800102

PIN-CLEV .375 X 2.00 YWZC

$3.99

$

In Stock, Qty 16

0

30

Ariens 03830000

FOAM, DECK MOTOR COVER

$

$

Not available

31

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

32

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0
