916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above) Parking Brake Parts Diagram

AMP 34" Rear-Engine Rider, Battery Powered

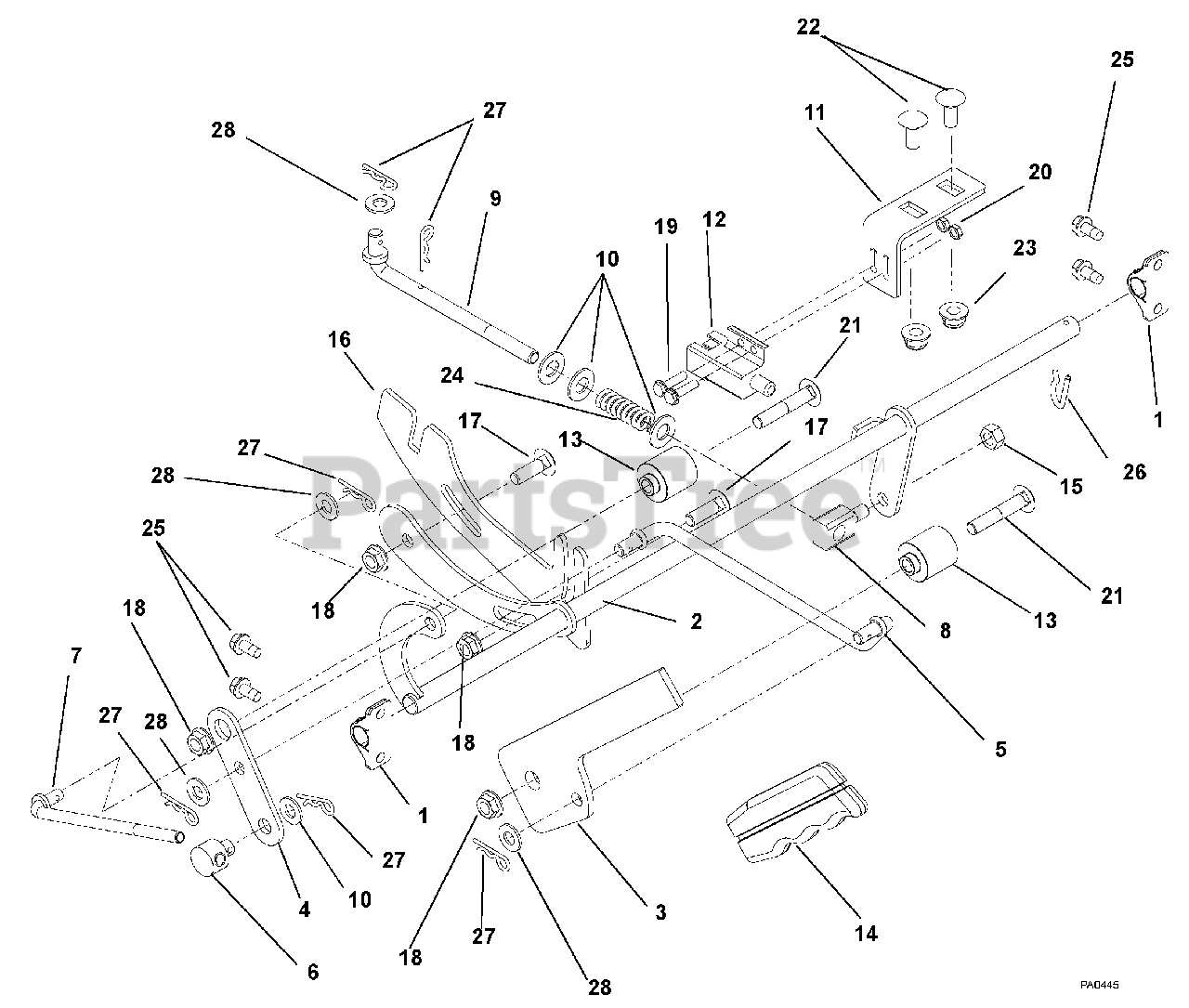

Parking Brake Parts Diagram

  • Title

1

Ariens 03757501

BUSHING-.50 CLAMP BLOCK MOLDED

$3.99

$

In Stock, only 4 left!

0

2

Ariens 03824500

WMT, BRAKE CROSS SHAFT

$

$

Not available

3

Ariens 03824651

HANDLE, PARKING BRAKE

$

$

Not available

4

Ariens 03824751

BRACKET, MIDDLE PARKING BRAKE

$

$

Not available

5

Ariens 03824800

ROD, PARKING BRAKE HANDLE

$

$

Not available

6

Ariens 01596400

TRUNNION, BRAKE .31-18 UNC

$51.99

$

Usually ships in 4-12 days

0

7

Ariens 00349800

BRAKE LINK

$

$

Not available

8

Ariens 09267300

PIN, PIVOT/TRUNNION

$6.99

$

In Stock, only 3 left!

0

9

Ariens 00498600

BRAKE LINK- .375-24

$

$

Not available

10

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03829951

BRACKET, PARKING SWITCH MOUNT

$

$

Not available

12

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

13

Ariens 00476300

SPCR, FLG .32X.49X.192X1.00

$16.99

$

Usually ships in 4-12 days

0

14

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (Yellow)

$3.99

$

In Stock, Qty 10

0

15

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03825000

INTERLOCK, FWD/REV

$

$

Not available

17

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

21

Ariens 06213900

BLT-RDHDSQSHK .31-18X1.75 YWZC
(Superseded to 06200335)

$3.99

$

In Stock, only 1 left!

0

22

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

24

Ariens 08312500

SG-COMP .093X.59X1.50

$14.99

$

Usually ships in 4-12 days

0

25

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

27

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

28

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0
