916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above) Seat And Support Parts Diagram

AMP 34" Rear-Engine Rider, Battery Powered

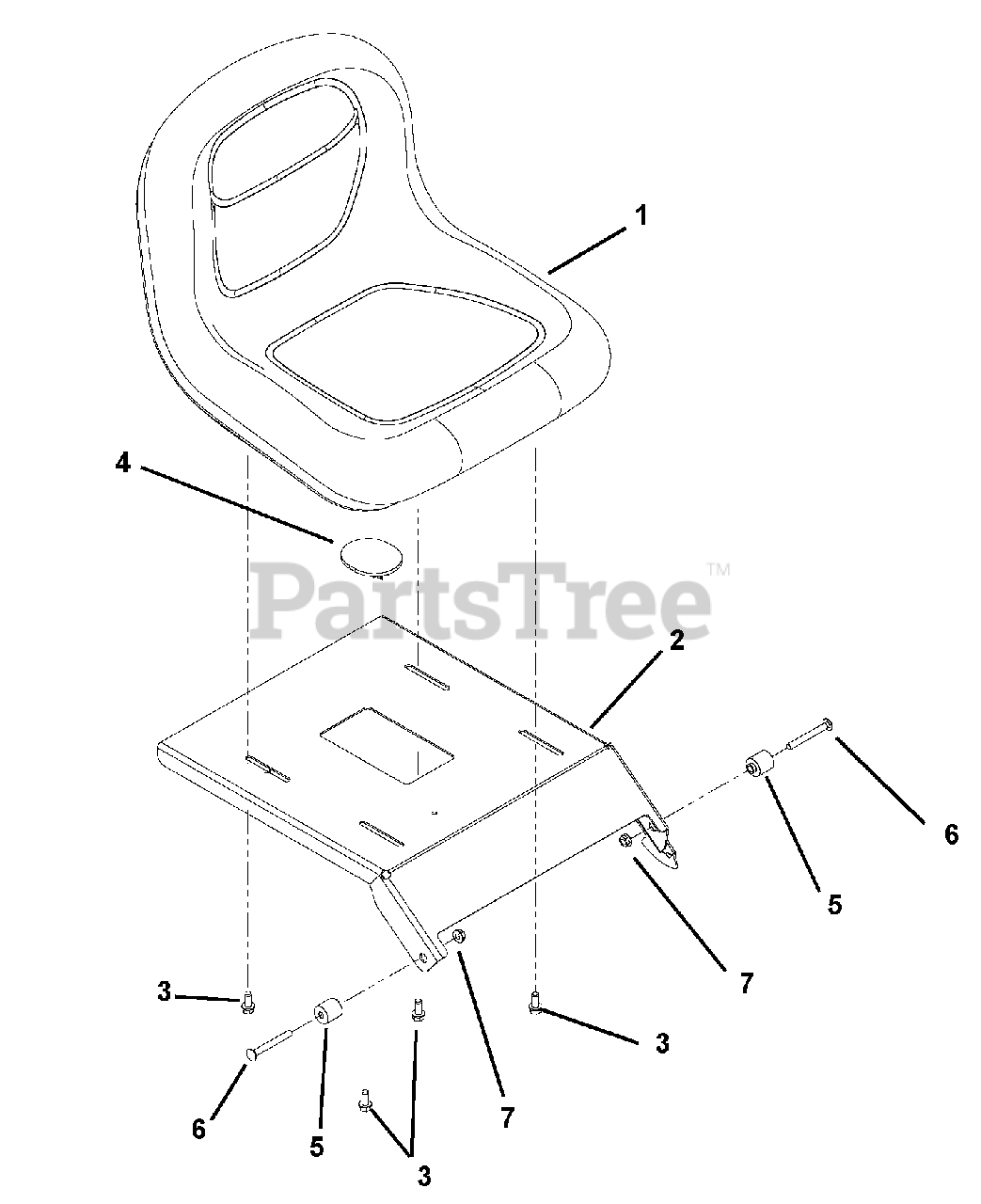

Seat And Support Parts Diagram

  • Title

1

Ariens 03872800

SEAT, MILSCO XB150 GRAY

$

$

Not available

2

Ariens 03874251

WMT, SEAT PLATE

$

$

Not available

3

Ariens 05900033

5/16-18X3/4 HX/W/HD WHIZ
(Superseded to 07001820)

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 03654200

SWITCH- SEAT

$15.99

$

In Stock, only 2 left!

0

7

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00476300

SPCR, FLG .32X.49X.192X1.00

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$3.49

$

In Stock, only 2 left!

0
