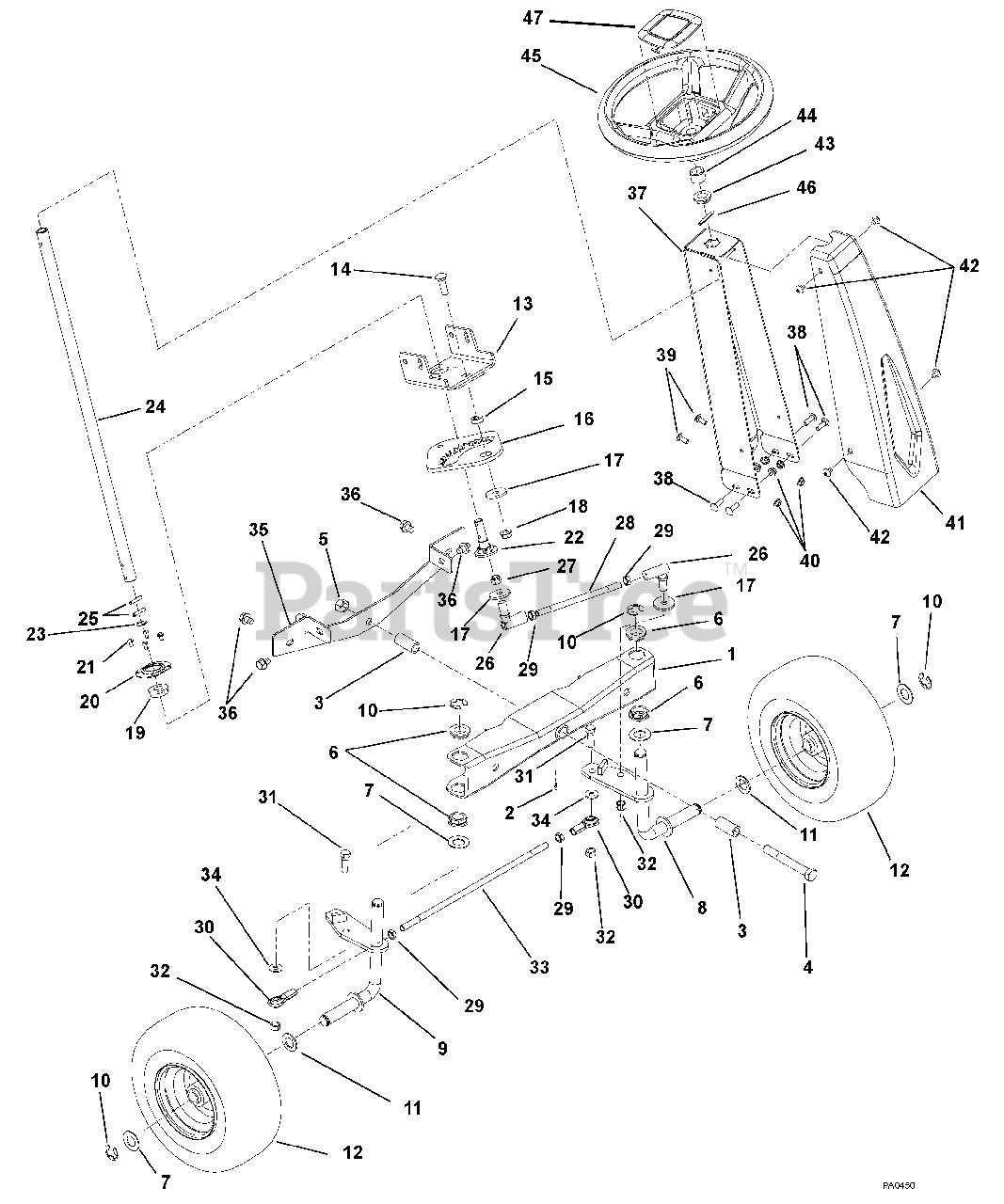

  • Title
03735951

1

WELDMENT, PIVOTING AXLE

Part# 03735951

OEM Warranty Repair Part for Ariens

Not available

07012600

2

FTG-LUBE .25-28X.256 YWZC

Part# 07012600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05516400

3

BSHG-SLV .500X.750X1.560

Part# 05516400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05961900

4

@BLT-HEX .50-13X4.00 GR5 YWZC

Part# 05961900

OEM Warranty Repair Part for Ariens

Not available

06536300

5

@NUT-LK-CTR .50-13 YWZC

Part# 06536300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01212800

6

FLANGE BUSHING

Part# 01212800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06416100

7

WSHR-HDND-THRST .755X1.40X.062

Part# 06416100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03368400

8

WMT, AMP SPINDLE, LH

Part# 03368400

OEM Warranty Repair Part for Ariens

Not available

03293500

9

WMT, AMP SPINDLE, RH

Part# 03293500

OEM Warranty Repair Part for Ariens

Not available

05707400

10

RG-RTNG-EXT .750X.050

Part# 05707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06413300

11

WSHR-HDND-THRST .760X1.25X.094

Part# 06413300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07100740

12

TIRE/WHEEL 11X4 4P K500

Part# 07100740

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.08

03751851

13

SUPPORT, STEERING GEAR

Part# 03751851

OEM Warranty Repair Part for Ariens

Not available

06224100

14

@BLT-RDHDSQNK .38-16X1.25 G5YZ

Part# 06224100 (Superseded to 06200415)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02768400

15

STEER GEAR SPACER .38X.75X.269

Part# 02768400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

03795000

16

GEAR, STEERING

Part# 03795000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

06442400

17

WSHR-FL-STL .406X1.375X.135 YZ

Part# 06442400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06542000

18

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05505300

19

BSHG-FLG .625X1.156X.375 SI

Part# 05505300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

01310000

20

RETAINING PLATE

Part# 01310000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

07414900

21

SCR-TAP 10-24X.375 TORX PHD YZ

Part# 07414900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03841600

22

PINION- (8620)

Part# 03841600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.25

06400015

23

WASHER, .500X.750X.020 THRUST

Part# 06400015

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02749100

24

STEERING SHAFT

Part# 02749100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

05800138

25

PIN,.188X1.0 HVY SPIRAL SPRING

Part# 05800138

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

02917100

26

BALL JOINT

Part# 02917100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

06538800

27

NUT-LK-NYL .375-24 W/INSR YWZC

Part# 06538800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03368600

28

ROD. STEERING - AMP

Part# 03368600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.08

06534700

29

NUT-JAM .375-24 YWZC

Part# 06534700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03563100

30

ROD END, .38 RH

Part# 03563100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

05958000

31

@BLT-HEX .38-16X1.25 GR5 YWZC

Part# 05958000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529600

32

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03368700

33

ROD, FRONT TIE - AMP

Part# 03368700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06435700

34

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03829851

35

SUPPORT,AXLE MOUNTING

Part# 03829851

OEM Warranty Repair Part for Ariens

Not available

07412900

36

@SCR-TAP .38-16X.50 HWH TR YWZ

Part# 07412900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03376751

37

BACK, STEERING COLUMN

Part# 03376751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.30

06200007

38

@BLT-RHDSSQNK .31-18X1.00 G5YZ

Part# 06200007

OEM Warranty Repair Part for Ariens

Not available

06220800

39

@BLT-RHDSSQNK .31-18X.75 G5YZ

Part# 06220800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06543100

40

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

03376800

41

COWL, STEERING COLUMN

Part# 03376800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.06

07400009

42

SCR-TAP SERRDHDTX .31-18X.50BP

Part# 07400009 (Superseded to 07411500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01212800

43

FLANGE BUSHING

Part# 01212800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03781700

44

SLEEVE, STEERING

Part# 03781700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.14

03781800

45

STEERING WHEEL- AMP

Part# 03781800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $77.42

05803700

46

PIN-ROLL .250X1.75

Part# 05803700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03781801

47

COVER, STEERING WHEEL

Part# 03781801

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.21
