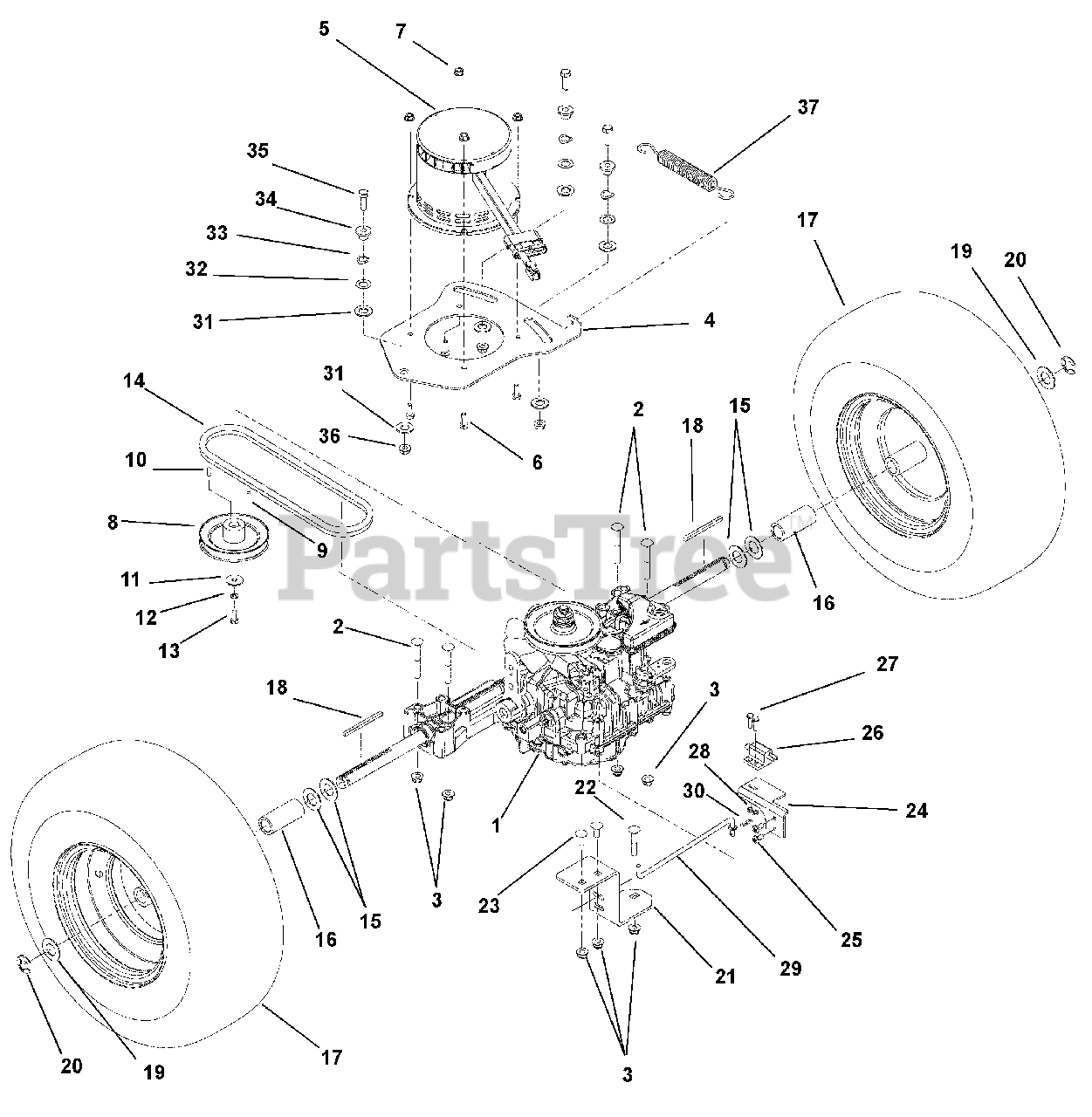

916002 - Ariens AMP 34" Rear-Engine Rider, Battery Powered (SN: 000101 & Above) > Parts Diagrams (14) > Transaxle, Drive Motor And Rear Wheels

  • Title
03397300

1

TRANSMISSION,TUFF TORQ 21.53:1

Part# 03397300 (Superseded to 03699900)

OEM Warranty Repair Part for Ariens

Not available

06219400

2

@BLT-RDHDSQNK .31-18X2.50 G5YZ

Part# 06219400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06545400

3

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03367759

4

PLATE, MOTOR MOUNT

Part# 03367759

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

03367400

5

MOTOR, 4 HP ELECTRIC BRUSHLESS

Part# 03367400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $416.44

05947700

6

@BLT-HEX .25-20X1.00 GR5 YWZC

Part# 05947700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06500012

7

@NUT-LK-NYL-FLG .25-20 YWZC

Part# 06500012

OEM Warranty Repair Part for Ariens

Not available

07318900

8

SHEAVE, PUMP .592 X 4.345

Part# 07318900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $50.25

06607500

9

KEY-STR 5MMX25MMX5MM

Part# 06607500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06000800

10

SCR-SET .25-20X.38 SKHCUP OH

Part# 06000800

OEM Warranty Repair Part for Ariens

Not available

06426600

11

WSHR-FL-STL .281X1.000X.063

Part# 06426600

OEM Warranty Repair Part for Ariens

Not available

06308400

12

@WSHR-LK .25X.062 REG YWZC

Part# 06308400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05975900

13

@BLT-HEX M6-1X16 YWZC

Part# 05975900

OEM Warranty Repair Part for Ariens

Not available

07204800

14

V-BELT, SAE 380-RAW EDGE

Part# 07204800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.73

06400333

15

WSHR-THRST .756 X 1.5 X .03

Part# 06400333

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05510001

16

BSHG-SLV .750X1.250X2.56

Part# 05510001

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

07100512

17

TIRE/WHEEL ASSY 18X6.50 2 PLY

Part# 07100512

OEM Warranty Repair Part for Ariens

Not available

06600213

18

KEY-SQ .188X3.0X.188 SAE 8630

Part# 06600213

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06416100

19

WSHR-HDND-THRST .755X1.40X.062

Part# 06416100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05707400

20

RG-RTNG-EXT .750X.050

Part# 05707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03734851

21

STRAP, TORQUE

Part# 03734851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06220200

22

@BLT-RDHDSQNK .31-18X1.75 G5YZ

Part# 06220200

OEM Warranty Repair Part for Ariens

Not available

06215700

23

@BLT-RDHDSQNK .31-18X.75 G5YZ

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03778551

24

BRACKET, N.M.I.R. MTG.

Part# 03778551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

07400032

25

SCR-.25X.62 PN HD BOSSSCREW YZ

Part# 07400032

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

03657100

26

SWITCH- SINGLE POLE N.O.

Part# 03657100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06116900

27

@SCR-MCH 10-24X.75 HWH YWZC

Part# 06116900

OEM Warranty Repair Part for Ariens

Not available

06536000

28

@NUT-LK-NYL 10-24 W/INSRT YWZC

Part# 06536000

OEM Warranty Repair Part for Ariens

Not available

03736700

29

ROD, DUMP VALVE

Part# 03736700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06701900

30

PIN-HAIR INT .06X.18X.77

Part# 06701900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06443300

31

WSHR-FL-NYL .518X1.000X.080

Part# 06443300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06436000

32

WSHR-FL-STL .505X.875X.024 YWZ

Part# 06436000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400005

33

WSHR-WAVE .50X.75X.015 .13FRHT

Part# 06400005

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05514900

34

BSHG-FLG .325X.500X.513X.875

Part# 05514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

05901311

35

BLT-HEX .31-18X1.00 GR8 YWZC

Part# 05901311

OEM Warranty Repair Part for Ariens

Not available

06543100

36

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

08300433

37

SPRING, EXTENSION

Part# 08300433 (Superseded to 08300507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54
