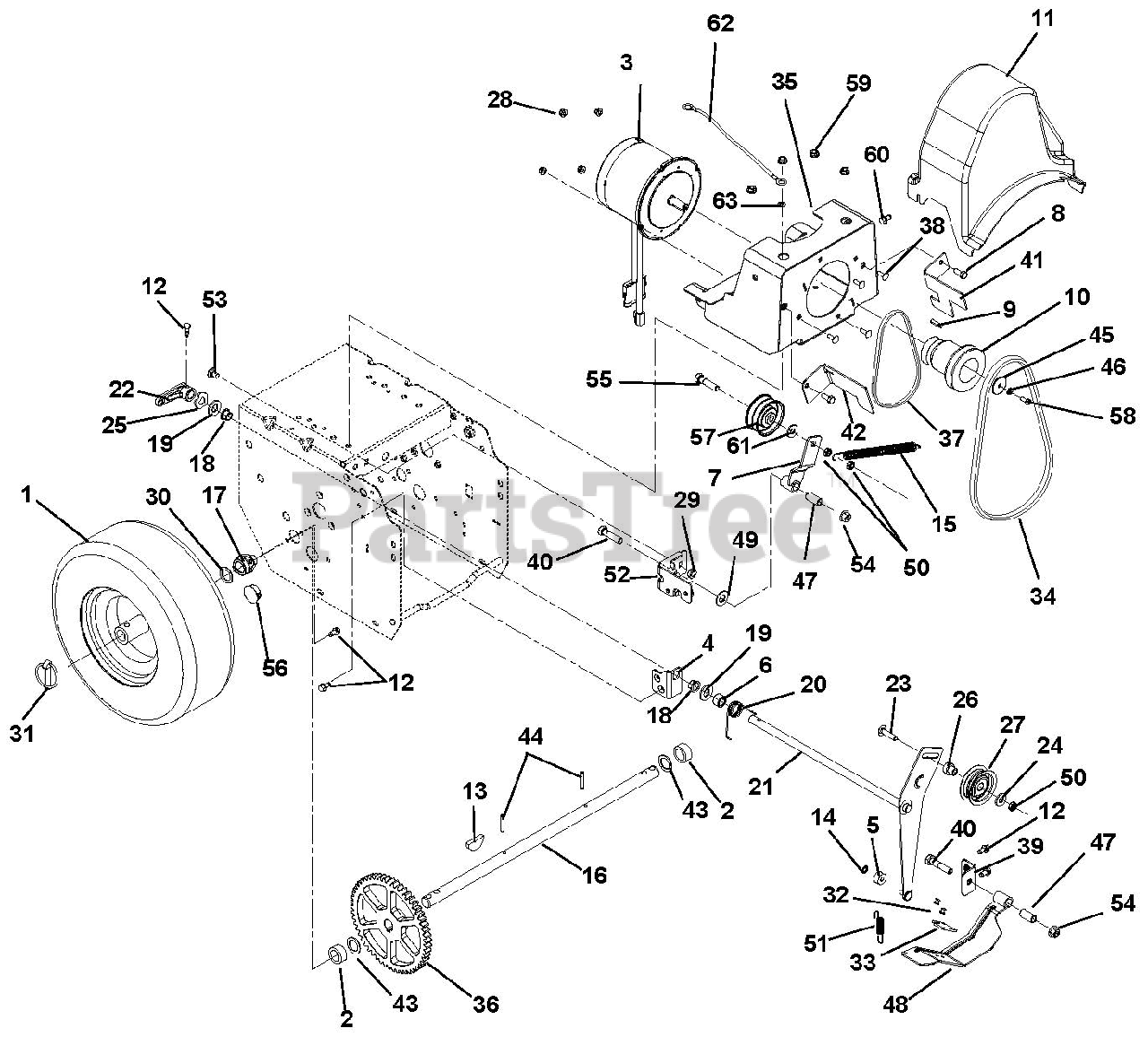

916302 - Ariens AMP Compact 24" Snow Blower, Battery Powered (SN: 000101 & Above) Drive Motor And Belt Drive Parts Diagram

AMP Compact 24" Snow Blower, Battery Powered

Drive Motor And Belt Drive Parts Diagram

  • Title

1

Ariens 07100223

TIRE/WHEEL, RH 4.10-6 PIN K478
(Superseded to 07101229)

$99.99

$

Usually ships in 4-12 days

0

1

Ariens 07100224

TIRE/WHEEL, LH 4.10-6 PIN K478
(Superseded to 07101228)

$93.99

$

In Stock, only 1 left!

0

1

Ariens 07100725

TIRE, 4.10-6 K478

$48.99

$

Usually ships in 4-12 days

0

2

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 03367400

MOTOR, 4 HP ELECTRIC BRUSHLESS

$

$

Not available

4

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$13.99

$

Usually ships in 4-12 days

0

5

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

6

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 16

0

7

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$17.99

$

Usually ships in 4-12 days

0

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06607500

KEY-STR 5MMX25MMX5MM

$3.99

$

In Stock, only 2 left!

0

10

Ariens 07333100

SHEAVE, ELECTRIC MOTOR

$

$

Not available

11

Ariens 03881000

COVER, COMPACT BELT

$21.99

$

In Stock, only 2 left!

0

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 19

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 5

0

15

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$15.99

$

In Stock, Qty 20+

0

16

Ariens 00494200

SHAFT, AXLE

$70.99

$

Usually ships in 4-12 days

0

17

Ariens 05500101

BSHG .75X1.125X.65

$10.99

$

In Stock, only 3 left!

0

18

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

19

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

20

Ariens 08300326

SG-TORS .075 X .955

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 00495167

WELDMENT, ATTACHMENT IDLER ARM
(Superseded to 04892167)

$38.99

$

Usually ships in 4-12 days

0

22

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

23

Ariens 06200124

BLT-RDHDSQSHNK.31-18X1.13 G5YZ
(Superseded to 06200334)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 7

0

26

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

27

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

28

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

31

Ariens 07053700

PIN-LOK .31X1.75

$2.99

$

In Stock, only 4 left!

0

32

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (included with item 48)

$1.49

$

In Stock, only 3 left!

0

33

Ariens 00180500

PAD, BRAKE

Note: (included with item 48)

$10.99

$

In Stock, only 2 left!

0

34

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$29.99

$

In Stock, Qty 20+

0

35

Ariens 04077851

WMT, BATTERY/MOTOR SUPPORT

$131.99

$

Usually ships in 4-12 days

0

36

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$40.99

$

Usually ships in 4-12 days

0

37

Ariens 07200110

V-BELT, 3L-WRAPPED

$23.99

$

In Stock, Qty 9

0

38

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

39

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

40

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

41

Ariens 03982451

FINGER, LH BELT

$18.99

$

Usually ships in 4-12 days

0

42

Ariens 03982351

FINGER, RH BELT

$18.99

$

Usually ships in 4-12 days

0

43

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

44

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

45

Ariens 06443900

WSHR-FL-STL .265X1.370X.179

$18.99

$

Usually ships in 4-12 days

0

46

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

47

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

48

Ariens 51600200

BRAKE ARM W/PAD

Note: (includes items 32 and 33)

$

$

Not available

49

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

51

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.99

$

In Stock, only 4 left!

0

52

Ariens 00657051

WELDMENT, FRAME BRACKET

$31.99

$

Usually ships in 4-12 days

0

53

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

54

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

56

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

$3.99

$

Usually ships in 4-12 days

0

57

Ariens 07300525

IDLER,1.875" OD
(Superseded to 52007100)

$29.99

$

In Stock, only 2 left!

0

58

Ariens 05900044

BLT-HEX M6X1.0X25 C10.9 EP80YZ

$

$

Not available

59

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

60

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

Usually ships in 4-12 days

0

61

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 15

0

62

Ariens 03287100

CABLE-GROUND .25 X 13.00 X .31

Note: (916302)

$17.99

$

In Stock, only 2 left!

0

63

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (916302)

$0.99

$

In Stock, only 1 left!

0
