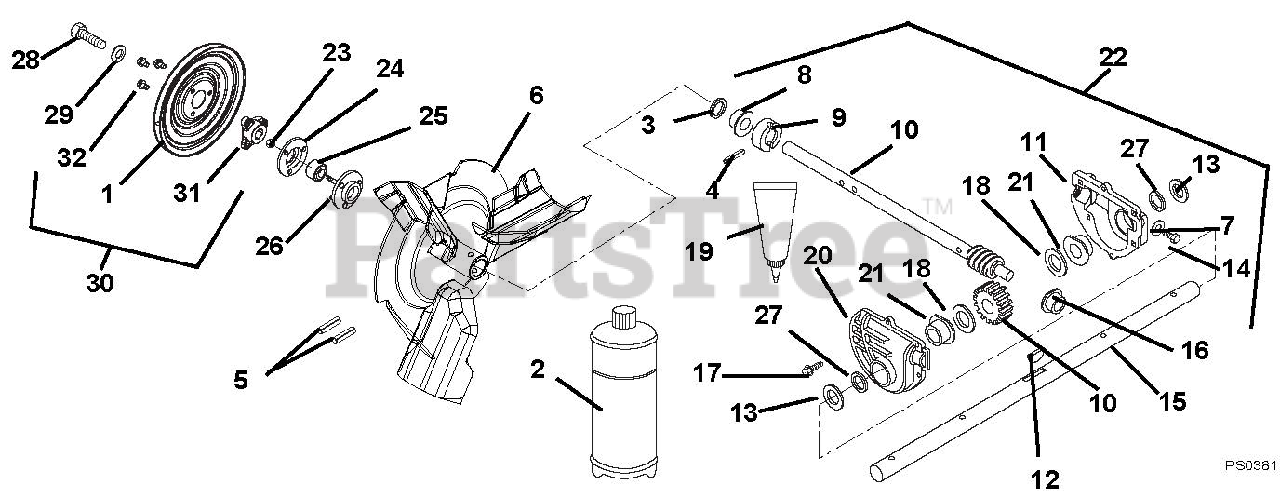

916302 - Ariens AMP Compact 24" Snow Blower, Battery Powered (SN: 000101 & Above) Gear Case And Impeller Parts Diagram

AMP Compact 24" Snow Blower, Battery Powered

Gear Case And Impeller Parts Diagram

  • Title

1

Ariens 00268951

PULLEY,SPIN FORM SINGLE GROOVE

$63.99

$

Usually ships in 4-12 days

0

2

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

Note: (Gear Case Capacity = 2.5 oz.)

$18.99

$

In Stock, Qty 20+

0

3

Ariens 05600004

SEAL-OIL.748X1.378X.276 RBR OD

$8.49

$

In Stock, Qty 7

0

4

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

$7.49

$

In Stock, Qty 11

0

5

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

6

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$84.99

$

In Stock, only 2 left!

0

7

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, only 2 left!

0

8

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 10

0

9

Ariens 00272100

THRUST COLLAR, .75" ID

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 53212500

SHAFT AND WORM GEAR ASSEMBLY

$116.99

$

In Stock, only 3 left!

0

11

Ariens 00291100

GEARCASE CASTING, MACHINED LH
(Superseded to 52004900)

$60.99

$

Usually ships in 4-12 days

0

12

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$3.49

$

In Stock, Qty 8

0

13

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

14

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$3.99

$

In Stock, only 1 left!

0

15

Ariens 00263000

SHAFT, RAKE - 24" (.750 DIA)

$84.99

$

Usually ships in 4-12 days

0

16

Ariens 05520600

BSHG-FLG .502X1X.750

$9.99

$

In Stock, only 2 left!

0

17

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$3.49

$

In Stock, Qty 14

0

18

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$19.99

$

In Stock, Qty 7

0

20

Ariens 00291200

GEARCASE CASTING, MACHINED RH
(Superseded to 52003300)

$107.99

$

Usually ships in 4-12 days

0

21

Ariens 05531100

BSHG-FLG .753X1.127X.500X1.501

$8.49

$

In Stock, only 2 left!

0

22

Ariens 53212700

GEARCASE, 24" ALUM, SMALL CD

Note: (contains 3-4, 7-12, 14-21, 27)

$273.99

$

In Stock, only 2 left!

0

23

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 7

0

25

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 3 left!

0

26

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 4 left!

0

27

Ariens 05618900

SEAL-OIL .750X1.375X.250

$12.99

$

In Stock, only 4 left!

0

28

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 3 left!

0

29

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

30

Ariens 52001800

PULLEY WITH HUB

Note: (Includes items 1, 31, 32)

$73.99

$

Usually ships in 4-12 days

0

31

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.99

$

Usually ships in 4-12 days

0

32

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0
