916303 - Ariens AMP Compact 24" Snow Blower, Battery Powered (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

AMP Compact 24" Snow Blower, Battery Powered

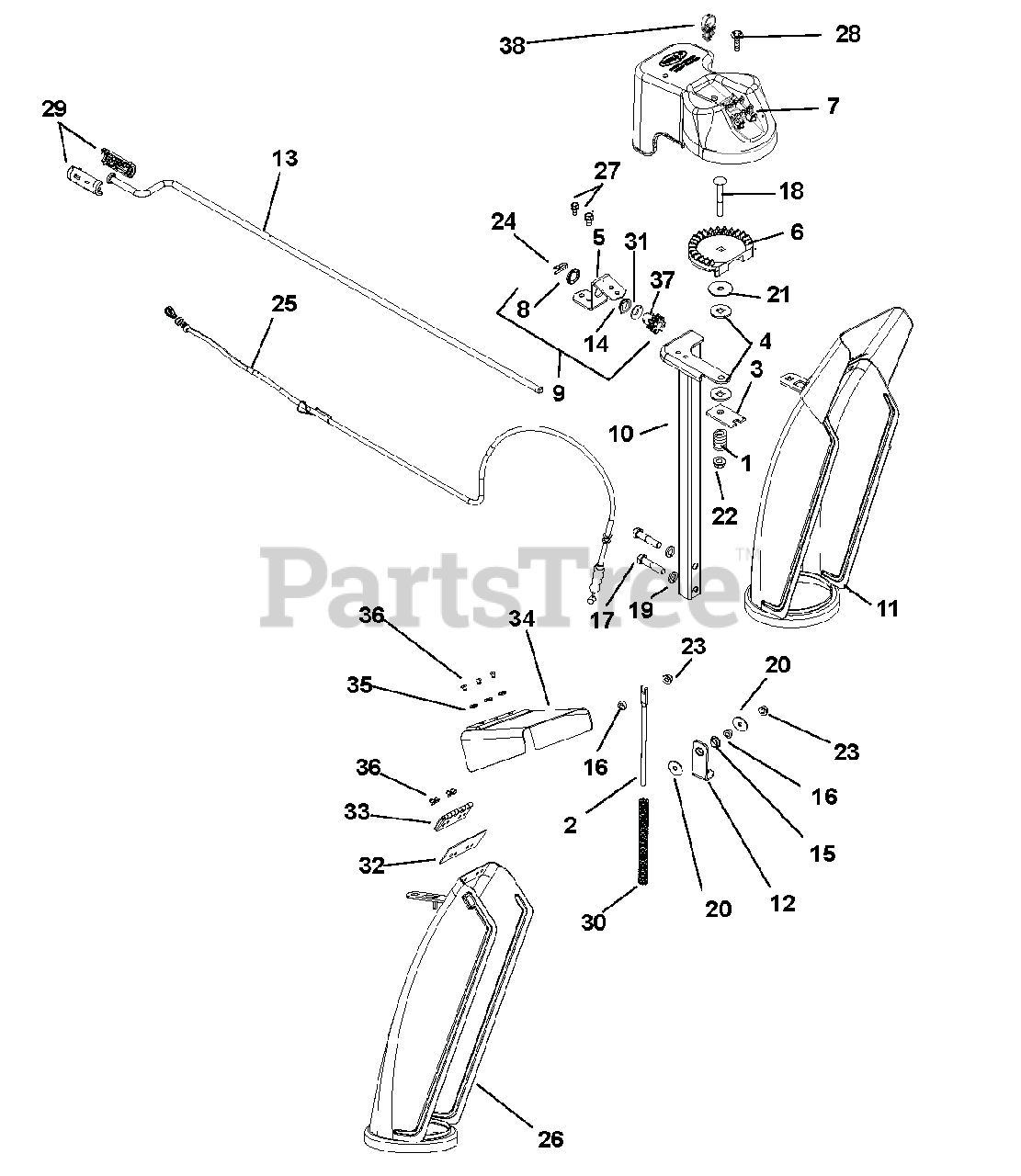

Discharge Chute Crank Parts Diagram

  • Title

1

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

2

Ariens 00389000

ROD, DEFLECTOR CAP

$15.99

$

In Stock, only 3 left!

0

3

Ariens 00398000

PLATE, FRICTION

$7.99

$

In Stock, Qty 7

0

4

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

5

Ariens 01972451

BRACKET, PINION GEAR
(Superseded to 01972400)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 8

0

7

Ariens 04456700

GEAR COVER ASSY SM SHEAR BOLT
(Superseded to 52006400)

$39.99

$

Usually ships in 4-12 days

0

8

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 5

0

9

Ariens 52000100

PINION GEAR W/BRACKET

Note: (Includes Items 5, 8, 14, 31 and 37)

$35.99

$

In Stock, only 2 left!

0

10

Ariens 03883751

CHUTE PEDESTAL, TALL COMPACT

$42.99

$

Usually ships in 4-12 days

0

11

Ariens 52002900

CHUTE, DISCHARGE W/REM.CAP,DEC
(Superseded to 52008600)

Note: (Includes Items 26, 32, 33, 34, 35, and 36)

$118.99

$

Usually ships in 4-12 days

0

12

Ariens 04115359

BRACKET, CABLE ANCHOR

$62.99

$

Usually ships in 4-12 days

0

13

Ariens 04338000

ROD, CHUTE CRANK, COMP&SNOTEK

$54.99

$

Usually ships in 4-12 days

0

14

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 7

0

15

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

16

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 7

0

17

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

18

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

20

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

21

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$1.49

$

In Stock, only 3 left!

0

22

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

24

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 18

0

25

Ariens 06900508

CABLE, DEFLECTOR - COMPACT

$43.99

$

In Stock, only 4 left!

0

26

Ariens 04092759

CHUTE, COMPACT-TALL W/REMOTE

$77.99

$

Usually ships in 4-12 days

0

27

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

In Stock, only 2 left!

0

29

Ariens 07500129

KNOB, CHUTE CRANK - SNAP BLK
(Superseded to 07500510)

$3.99

$

In Stock, Qty 5

0

30

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.99

$

In Stock, only 1 left!

0

31

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 19

0

32

Ariens 00628500

CAP SEAL 5.25

$4.49

$

Usually ships in 4-12 days

0

33

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

34

Ariens 04092859

CAP, COMPACT-W/REMOTE
(Superseded to 52110200)

$45.99

$

Usually ships in 4-12 days

0

35

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$2.49

$

Usually ships in 4-12 days

0

36

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

37

Ariens 03735300

PINION GEAR - CHUTE

$

$

Not available

38

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0
