917.250550 - Craftsman Lawn Tractor (1999 & Before) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

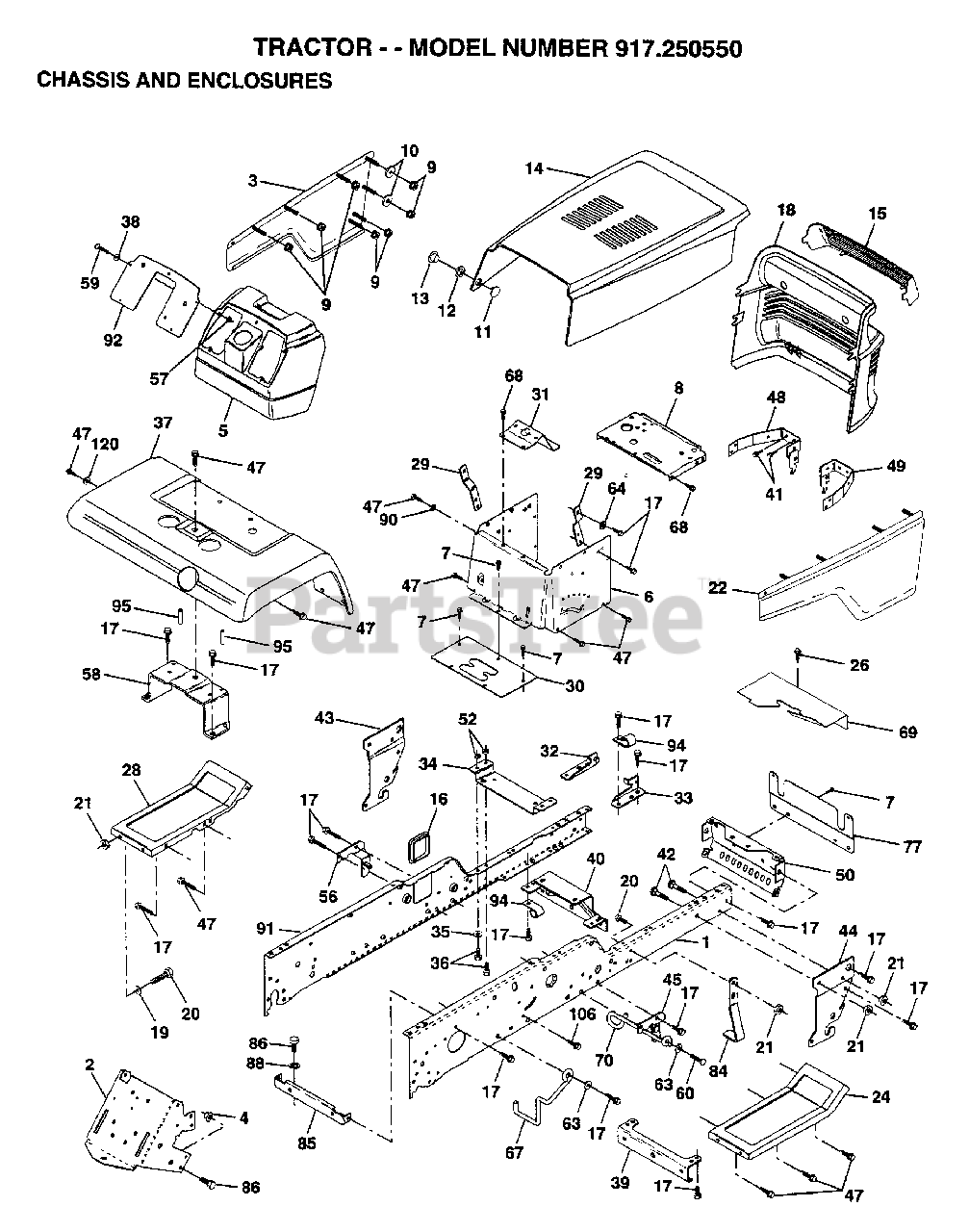

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 144737

SUB= 150383
(Superseded to 532144737)

$

$

Not available

2

Electrolux/AYP 140506

DRAWBAR GT
(Superseded to 175282)

$

$

Not available

3

Electrolux/AYP 136671X459

PANEL.ASM.SIDE.LH

$

$

Not available

4

Electrolux/AYP 73800700

NUT.7/16
(Superseded to 873800700)

$

$

Not available

5

Electrolux/AYP 145203

DASH.PLASTIC.BLK

$

$

Not available

6

Electrolux/AYP 145053

DASH.1PC.LOWER
(Superseded to 532145053)

$

$

Not available

7

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$

$

Not available

8

Electrolux/AYP 145166

SUPPORT.DASH.BTRY
(Superseded to 532145166)

$

$

Not available

9

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

10

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$7.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 137270

RIVET.RATCHET.MAL
(Superseded to 537137270)

$

$

Not available

12

Electrolux/AYP 137269

WASHER.NYLON
(Superseded to 532137269)

$

$

Not available

13

Electrolux/AYP 137271

RIVET.RATCH.FEMAL
(Superseded to 532137271)

$

$

Not available

14

Electrolux/AYP 136673X459

HOOD.ASM.YT/GT

$

$

Not available

15

Electrolux/AYP 136374

SUB= 918136374
(Superseded to 532136374)

$

$

Not available

16

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

17

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 136373X428

SUB= 136375

$

$

Not available

19

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$

$

Not available

21

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$

$

Not available

22

Electrolux/AYP 136670X459

PANEL.ASM.SIDE.RH

$

$

Not available

24

Electrolux/AYP 145243X459

FOOTREST.RH.LT-GT

$

$

Not available

26

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$

$

Not available

28

Electrolux/AYP 145244X459

FOOTREST.LH.LT-GT
(Superseded to 583700101)

$45.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 145349

BRACKET.SUPT.DASH
(Superseded to 532145349)

$

$

Not available

30

Electrolux/AYP 137143X014

SADDLE SILKSCRN
(Superseded to 532144451)

$

$

Not available

31

Electrolux/AYP 145183

BRAKET.SUPT.STEER
(Superseded to 532145183)

$

$

Not available

32

Electrolux/AYP 141315

BRACKET ASM FRAME
(Superseded to 532141315)

$

$

Not available

33

Electrolux/AYP 141314

BRACKET ASM FRAME
(Superseded to 532141314)

$

$

Not available

34

Electrolux/AYP 142131

BRACKET.ENG.SUPT.
(Superseded to 532142131)

$9.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 19

0

36

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 121642X459

FENDER

$127.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$3.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 136961

BRACKET.AXLE.FRT.
(Superseded to 532175278)

$

$

Not available

40

Electrolux/AYP 142132

SUB= 156111
(Superseded to 532156111)

$

$

Not available

41

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

42

Murray 72140608

SUB= 72110608

$

$

Not available

43

Electrolux/AYP 136939

BRACKET.SUS.FT.LH
(Superseded to 532136939)

$

$

Not available

44

Electrolux/AYP 136940

BRACKET.SUS.FT.RH
(Superseded to 532136940)

$

$

Not available

45

Electrolux/AYP 138460

SUB= 155887
(Superseded to 532155887)

$

$

Not available

47

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$

$

Not available

48

Electrolux/AYP 142133

SUB= 157105

$

$

Not available

49

Electrolux/AYP 142134

SUB= 157107

$

$

Not available

50

Electrolux/AYP 136575

BRACKET.CHASSIS.
(Superseded to 532136575)

$

$

Not available

52

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

56

Electrolux/AYP 138461

SUB= 155886
(Superseded to 532138461)

$

$

Not available

57

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

58

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 2 left!

0

60

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$6.99

$

In Stock, Qty 8

0

63

Murray 19131614

WASHER
(Superseded to 819131612)

$

$

Not available

64

Electrolux/AYP 144283

WASHER.SERRATED.
(Superseded to 532144283)

$

$

Not available

67

Electrolux/AYP 140737

GUIDE BELT TRANS
(Superseded to 532140737)

$

$

Not available

68

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$

$

Not available

69

Electrolux/AYP 137308

SHIELD.FRONT

$

$

Not available

70

Electrolux/AYP 137159

GUIDE.BELT.MID.SP
(Superseded to 532177679)

$3.49

$

In Stock, only 2 left!

0

77

Electrolux/AYP 137308

SHIELD.FRONT

$

$

Not available

84

Electrolux/AYP 142992

STOP.OVER.CENTER
(Superseded to 532142992)

$

$

Not available

85

Electrolux/AYP 144911

BRACKET.SUPT.TRAN
(Superseded to 193923)

$

$

Not available

86

Electrolux/AYP 74760716

BOLT
(Superseded to 874780716)

$

$

Not available

88

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.49

$

In Stock, Qty 15

0

90

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 144735

SUB= 151630
(Superseded to 532144735)

$

$

Not available

92

Electrolux/AYP 143485X013

PLATE.DASH.SLKSCR

$

$

Not available

94

Electrolux/AYP 100207K

CLIP GTV
(Superseded to 532100207)

$

$

Not available

95

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$

$

Not available

106

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

120

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$

$

Not available

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available
