917.250550 - Craftsman Lawn Tractor (1999 & Before) IGNITION / ELECTRICAL Parts Diagram

Lawn Tractor

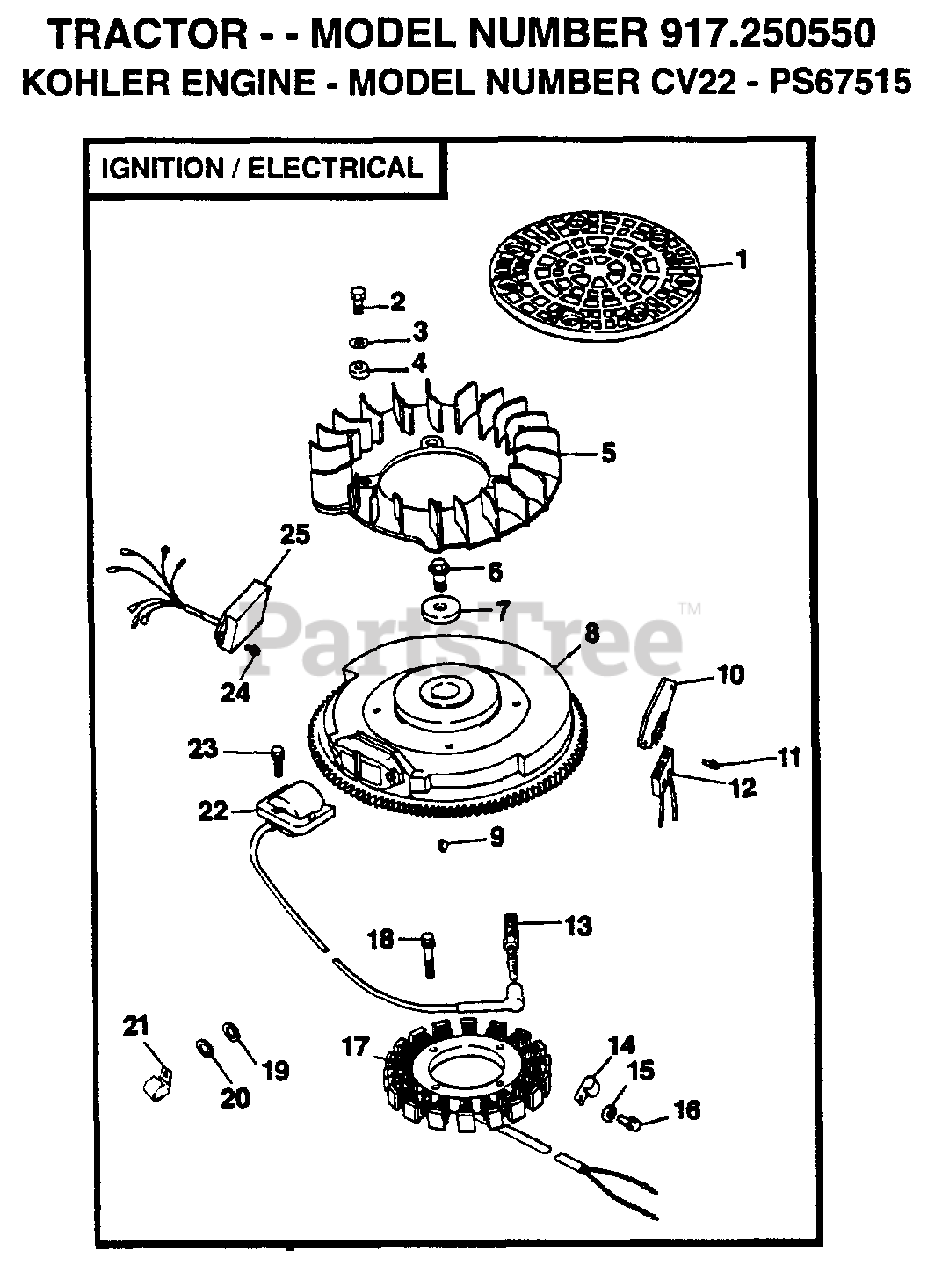

IGNITION / ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 24-162-17

SCREEN, GRASS

$

$

Not available

2

Electrolux/AYP M-0401025

SCREW

$

$

Not available

3

Kohler X-25-92

WASHER
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 24-112-04

SPACER

$

$

Not available

5

Electrolux/AYP 24-157-03

FAN

$

$

Not available

6

Kohler M-0639016

SCREW
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

7

Electrolux/AYP 12-112-01

SCREW

$

$

Not available

8

Electrolux/AYP 24-025-05

FLYWHEEL ASSY

$

$

Not available

9

Kohler X-42-15

KEY
(Superseded to X-42-15-S)

$2.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 25-403-03

RECTIFIER-REGULATOR

$

$

Not available

11

Electrolux/AYP 24-086-06

SCREW

$

$

Not available

12

Kohler 236602

CONNECTOR
(Superseded to 236602-S)

$7.99

$

In Stock, Qty 11

0

13

Electrolux/AYP 12-132-02

SPARK PLUG

$

$

Not available

14

Electrolux/AYP 48-154-02

CLIP

$

$

Not available

15

Electrolux/AYP 12-468-03

WASHER

$

$

Not available

16

Electrolux/AYP 12-086-14

SCREW

$

$

Not available

17

Electrolux/AYP 24-085-01

STATOR

$

$

Not available

18

Kohler M-0548025

SCREW
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

19

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

20

Kohler X-25-92

WASHER
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 47-154-01

CLIP

$

$

Not available

22

Electrolux/AYP 24-584-03

MODULE, IGNITION

$

$

Not available

23

Kohler M-0560020

SCREW
(Superseded to M-560020-S)

$

$

Not available

24

Kohler M-0448010

SCREW HEX FLANG M4 X .7 X 10
(Superseded to M-448010-S)

$2.49

$

Usually ships in 2-5 days

0

25

Electrolux/AYP 24-584-05

No Desciption for Part

$

$

Not available

Electrolux/AYP 24-176-27

No Desciption for Part

$

$

Not available

Electrolux/AYP 24-518-04

LEAD

$

$

Not available

Electrolux/AYP 24-113-18

DECAL

$

$

Not available
