917.252520 - Craftsman Lawn Tractor (1999 & Before) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

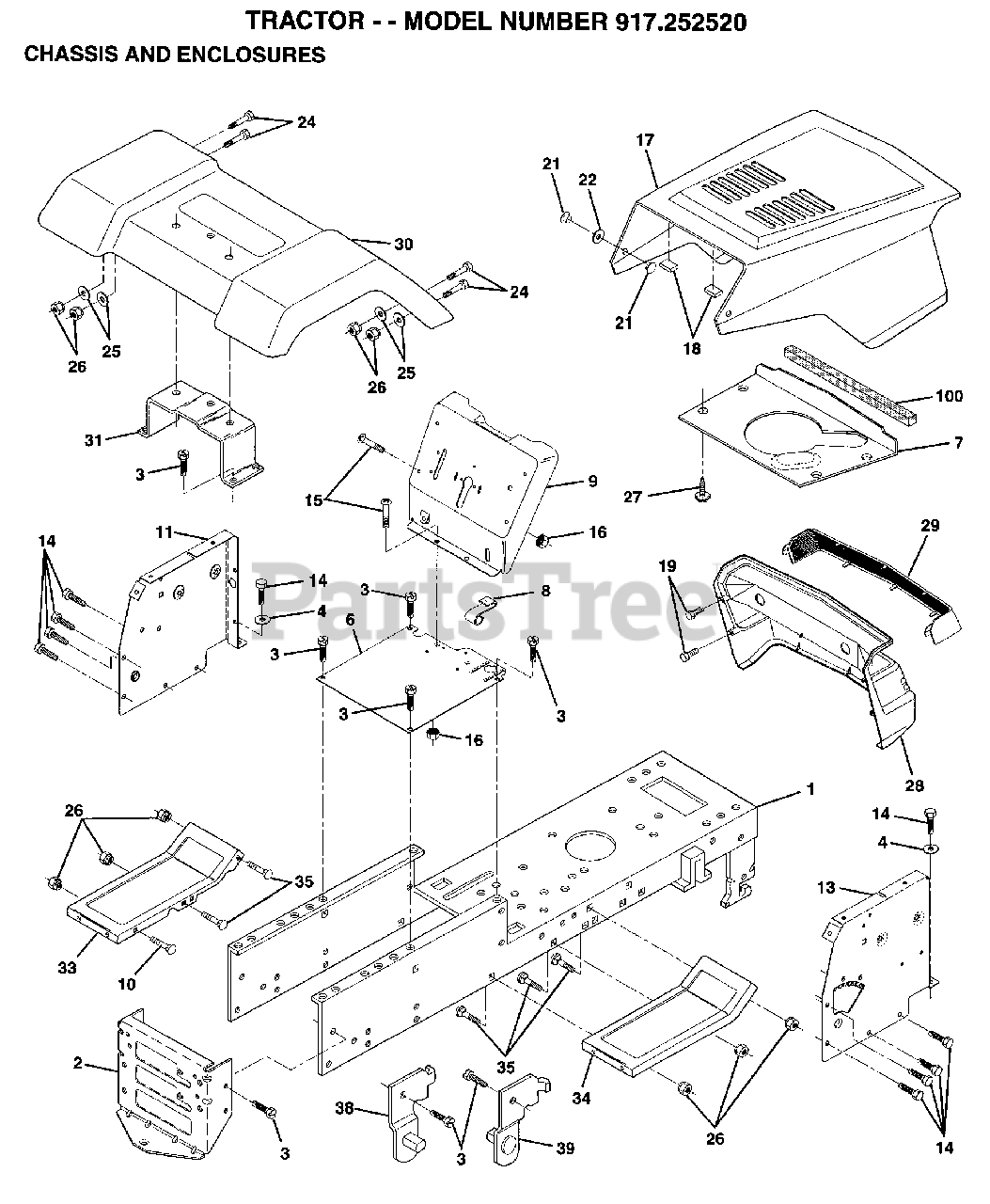

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

6

Electrolux/AYP 145206

SUB= 145206X431

$

$

Not available

7

Electrolux/AYP 126842X

"SHIELD,HEAT HOOD"

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$

$

Not available

9

Electrolux/AYP 145938X001

DASH

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 135464

DASH PANEL LH
(Superseded to 146956)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 126276X

SUB= 155936

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$

$

Not available

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

16

Electrolux/AYP STD541431

NUT

$

$

Not available

17

Electrolux/AYP 131445X459

SUB= 154988X574

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

19

Electrolux/AYP 17521312

SCREW SLTD HXHD
(Superseded to 532189747)

$20.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 122933X

"RIVET,PLASTIC"
(Superseded to 532122933)

$

$

Not available

22

Electrolux/AYP 124479X

SUB= 532124479

$

$

Not available

24

Electrolux/AYP STD523710

WASHER

$

$

Not available

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP STD541437

NUT

$

$

Not available

27

Electrolux/AYP 17030814

SUB= 91817030814
(Superseded to 532161464)

$

$

Not available

28

Electrolux/AYP 140137

SUB= 142034

$

$

Not available

29

Electrolux/AYP 124029X

SUB= 124029X599

$

$

Not available

30

Electrolux/AYP 147310X459

SUB= 168744X459
(Superseded to 584377801)

$250.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$20.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X459

FOOTREST.LH.LT-GT
(Superseded to 583700101)

$45.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X459

FOOTREST.RH.LT-GT

$

$

Not available

35

Electrolux/AYP STD533707

BOLT

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$

$

Not available

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

100

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$9.49

$

Usually ships in 3-10 days

0
