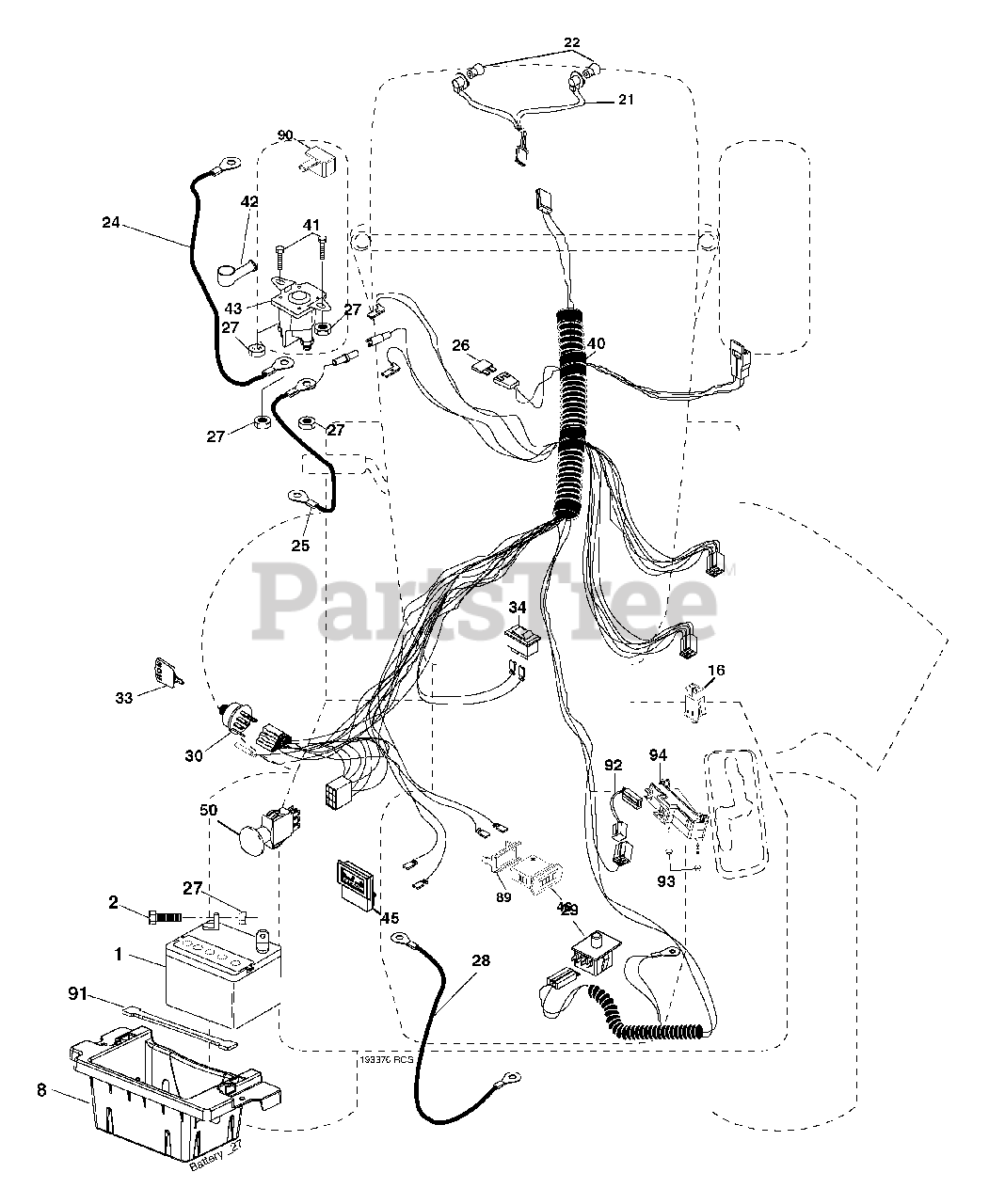

917.279080 (960130007) - Craftsman Yard Tractor (2004-12) (Sears) Electrical Parts Diagram

Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532186491

Cable Starter

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532183759

Harness Asm Light W/Bulbs

$47.99

$

In Stock, only 2 left!

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124780

Cable Starter
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146148

Cable Battery

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

Fuse

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

Cable Ground

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532192749

Switch Seat

$21.99

$

In Stock, Qty 6

0

30

Husqvarna 532193350

Switch Ign

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch Light/Reset

$8.99

$

In Stock, Qty 11

0

40

Husqvarna 532193376

Harness Ign.

$

$

Not available

41

Husqvarna 871110408

Bolt 1/4-20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

45

Husqvarna 532122822

Ammeter Rectangular

$18.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

Hourmeter Snap-In
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

Switch, PTO
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0

90

Husqvarna 532180449

Cover Terminal Battery
(Superseded to 532435395)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

Strap Battery

$9.99

$

In Stock, Qty 18

0

92

Husqvarna 532193465

Harness Pigtail Reverse Switch

$15.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532192540

Screw Plastite 10-1/4 x 2.0

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse Switch

$37.99

$

In Stock, only 2 left!

0
