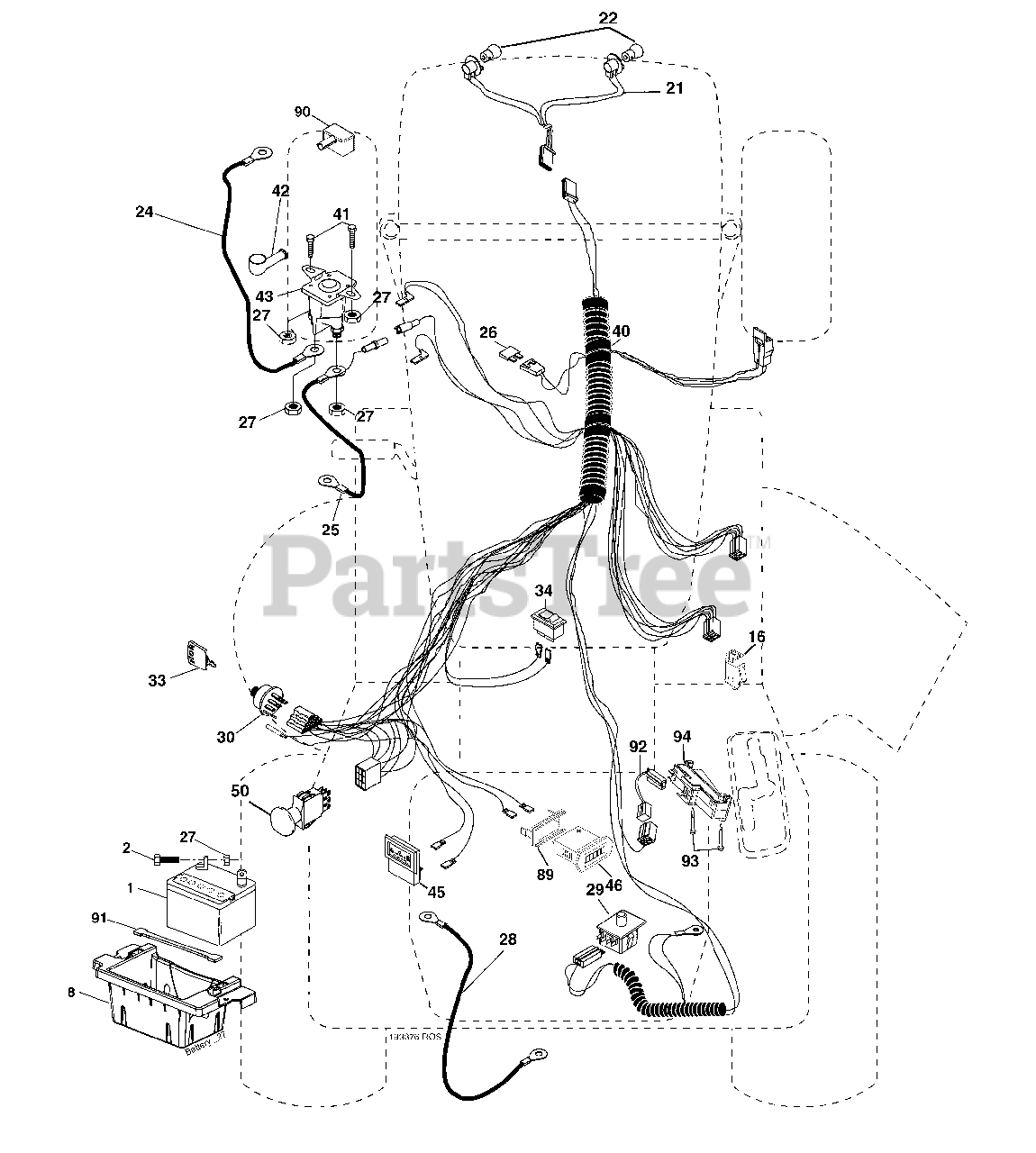

917.279081 (960130007) - Craftsman Yard Tractor (2005-08) (Sears) Electrical Parts Diagram

Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 532186491

Box Battery

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 10

0

21

Husqvarna 532183759

Harness Asm Light W/4152j

$34.99

$

In Stock, Qty 7

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124780

Cable Battery 6 Ga. 11" red
(Superseded to 532004799)

$17.99

$

In Stock, only 1 left!

0

25

Husqvarna 532146148

Cable Battery 6 Ga. 22" red w/16 wire

$26.99

$

In Stock, only 1 left!

0

26

Husqvarna 532175158

Fuse 20 AMP

$5.99

$

In Stock, Qty 16

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

Cable Ground black

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532192749

Switch Seat DP w/ROS

$20.99

$

In Stock, only 4 left!

0

30

Husqvarna 532193350

Switch Ign

$26.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch Light/Reset

$9.49

$

In Stock, Qty 8

0

40

Husqvarna 532193376

Harness Ign.

$

$

Not available

41

Husqvarna 817720408

Bolt 1/4-20 x 1/2
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$6.99

$

In Stock, Qty 9

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$22.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122822

Ammeter

$28.99

$

In Stock, only 2 left!

0

46

Husqvarna 532169635

Hourmeter Snap-In
(Superseded to 532169642)

$

$

Not available

50

Husqvarna 532196112

Switch PTO
(Superseded to 582107604)

$34.99

$

In Stock, Qty 12

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$

$

Not available

90

Husqvarna 532180449

Cover Terminal
(Superseded to 532435395)

$5.99

$

In Stock, only 1 left!

0

91

Husqvarna 532190270

Strap Battery

$8.49

$

In Stock, Qty 9

0

92

Husqvarna 532193465

Harness Pigtail Revers Switch

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532192540

Screw Plastic 10-14 x 2.0
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse ROS

$26.99

$

In Stock, only 3 left!

0
