917.279081 (960130007) - Craftsman Yard Tractor (2005-08) (Sears) Engine Parts Diagram

Yard Tractor

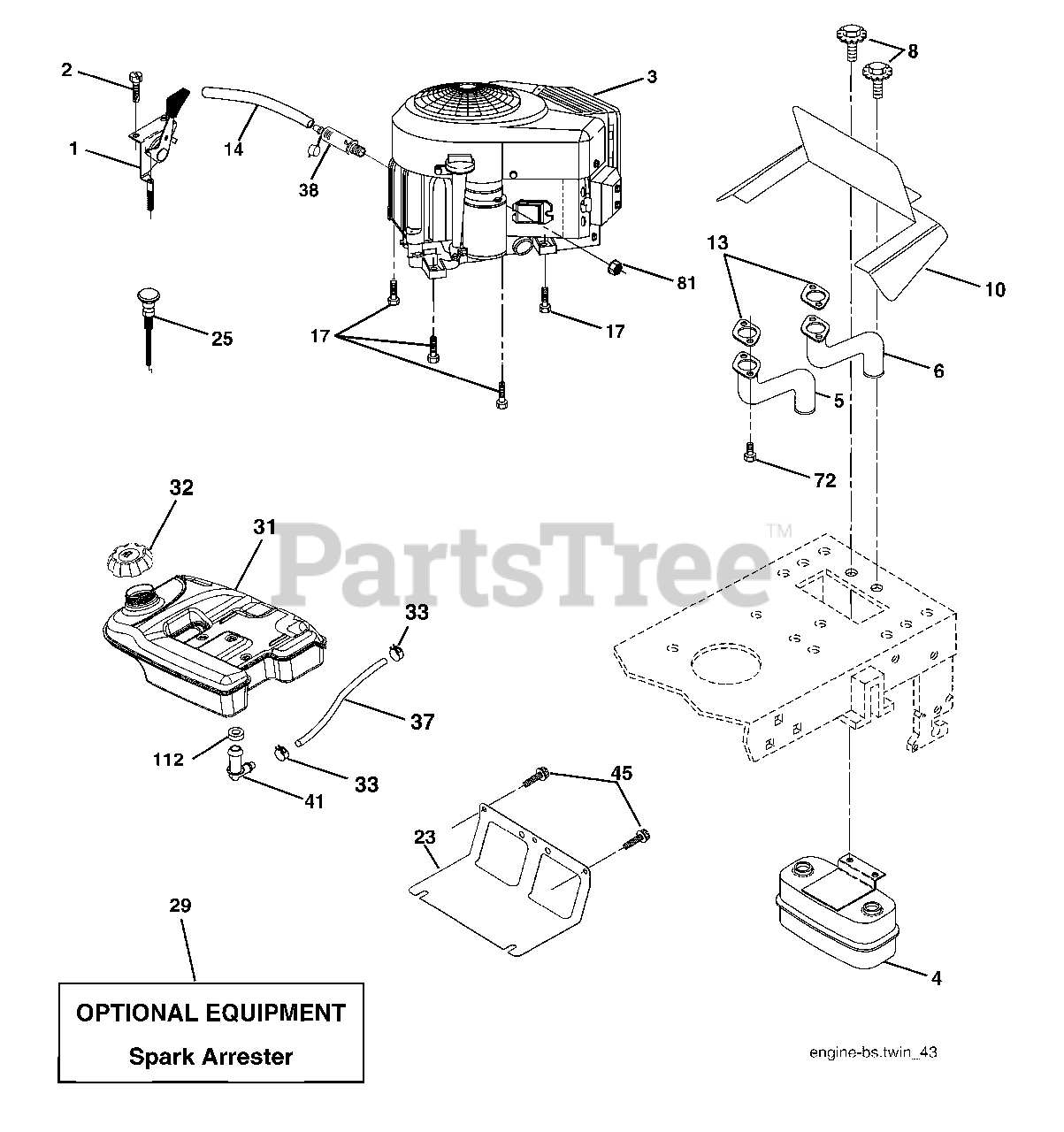

Engine Parts Diagram

  • Title

1

Husqvarna 532190454

Control Th/ch Flag
(Superseded to 532190196)

$

$

Not available

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine Briggs 446677

Note: Order Parts From Engine Manufacturer

$

$

Not available

4

Husqvarna 532149723

Muffler

$74.99

$

In Stock, Qty 6

0

5

Husqvarna 532159955

Exhaust Tube LH
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

6

Husqvarna 532160589

Exhaust Tube RH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

8

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532162797

Shield Heat Muffl er
(Superseded to 532146629)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$4.99

$

In Stock, Qty 19

0

17

Husqvarna 817060624

Screw 3/8-16 x 1-1/2

$7.49

$

In Stock, only 1 left!

0

23

Husqvarna 532169837

Shield Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132782

Control Choke
(Superseded to 532132781)

$

$

Not available

29

Husqvarna 532137180

Kit Spark Arrestor

Note: Flat Scrn

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532179022

Tank Fuel

$

$

Not available

32

Husqvarna 532181803

Cap Asm Fuel
(Superseded to 532179124)

$37.99

$

In Stock, only 1 left!

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, Qty 16

0

37

Husqvarna 532142158

Line Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 1 left!

0

38

Husqvarna 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, Qty 16

0

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 20+

0

45

Husqvarna 817000612

Screw Hex Wsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 532183906

Screw Socket Head 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 Starter Nut
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

112

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$3.99

$

In Stock, Qty 20+

0
