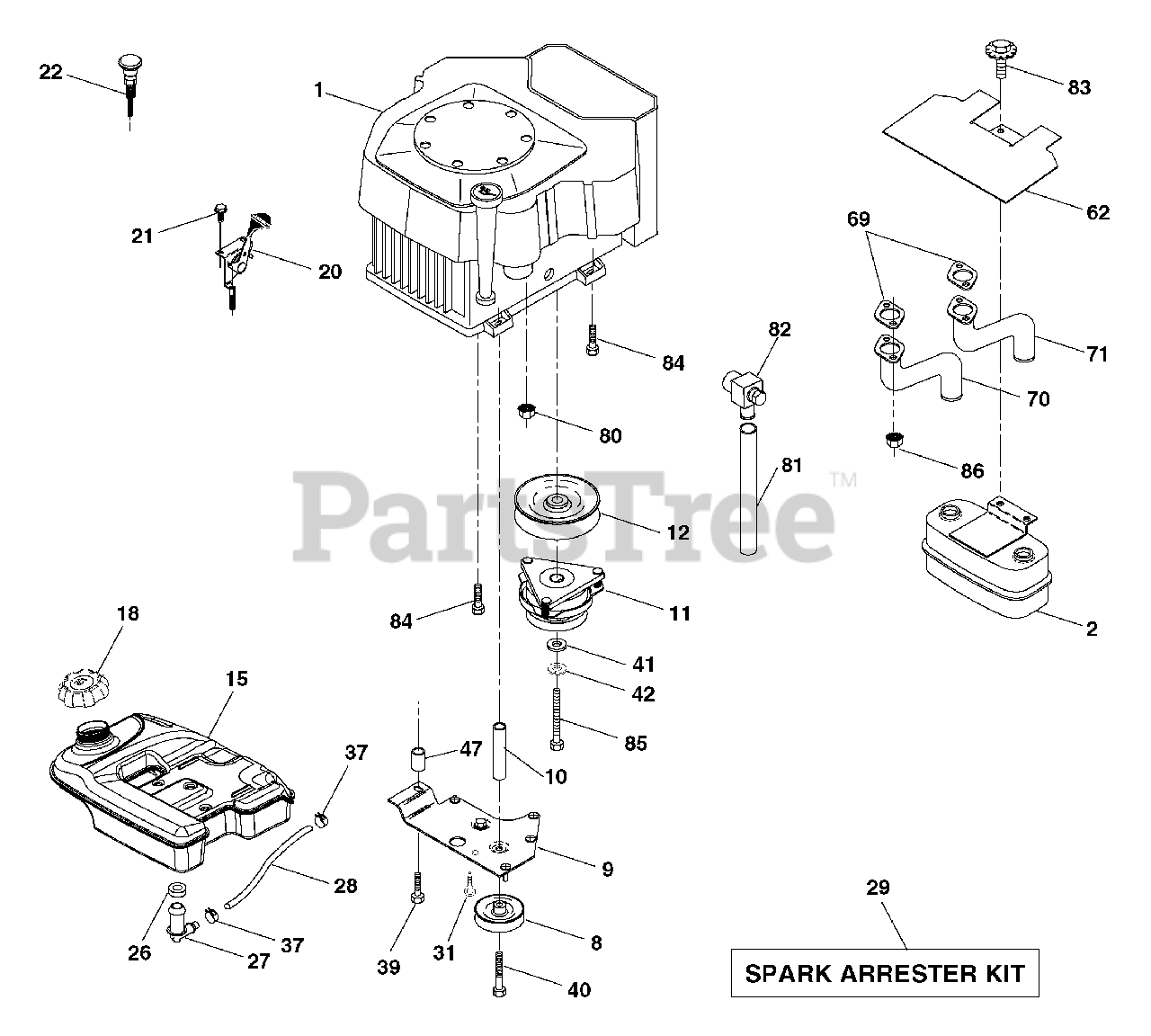

917.279100 (960230003) - Craftsman Yard Tractor (2004-12) (Sears) Engine Parts Diagram

Yard Tractor

Engine Parts Diagram

  • Title

1

Engine Kohl, Model No. CV730

Note: (Order parts from engine manufacturer)

$

$

Not available

2

Husqvarna 532149723

Muffler Side

$51.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532121361

Pulley V-Idler
(Superseded to 532139123)

$43.99

$

In Stock, Qty 6

0

9

Husqvarna 532177748

Keeper Asm. Belt Engine VGT

$

$

Not available

10

Husqvarna 532175287

Bushing

$

$

Not available

11

Husqvarna 532179335

Clutch Electric

$376.99

$

In Stock, Qty 6

0

12

Husqvarna 532143996

Pulley Engine VGT Elect Clutch

$53.99

$

In Stock, only 4 left!

0

15

Husqvarna 532179115

Tank Fuel Rear 5.0

$

$

Not available

18

Husqvarna 532181803

Cap Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532182937

Control Throttle
(Superseded to 532177328)

$31.99

$

In Stock, Qty 6

0

21

Husqvarna 532191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 532416358)

$

$

Not available

22

Husqvarna 532189541

Control Choke
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0

26

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 532139277

Stem Tank Fuel

$7.99

$

In Stock, only 3 left!

0

28

Husqvarna 532124703

Fuel Line
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

Clip Push-In Hinged

$3.49

$

In Stock, Qty 12

0

37

Husqvarna 532123487

Clamp Hose

$3.49

$

In Stock, only 4 left!

0

39

Husqvarna 817490636

Screw TT 3/8-16 x 2-1/4 unc
(Superseded to 596564004)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 unc

$

$

Not available

41

Husqvarna 532126197

Washer 1-1/2 OD X 15/32 ID X .250

$7.99

$

In Stock, Qty 6

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

47

Husqvarna 532175288

Bushing

$

$

Not available

62

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$

$

Not available

69

Husqvarna 532186054

Gasket

$3.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532175545

Tube Exhaust LH

$

$

Not available

71

Husqvarna 532175546

Tube Exhaust RH

$

$

Not available

80

Husqvarna 532163305

Nut Flange M8-1.25
(Superseded to 873030800)

$

$

Not available

81

Husqvarna 532188800

Oil Drain Tube

$

$

Not available

82

Husqvarna 532188799

Valve Drain Oil

$

$

Not available

83

Husqvarna 532171877

Bolt 5/16-18 unc x 1-3/4 W/Sems

$7.49

$

In Stock, only 2 left!

0

84

Husqvarna 817060624

Screw 3/8-16 x 1-1/2

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532179953

Bolt Hex 7/16-20 x 3.75 Gr. 5
(Superseded to 501606601)

$3.49

$

In Stock, only 4 left!

0

86

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.25

$3.49

$

In Stock, only 3 left!

0
