917.279180 (YTH 2242 T) - Craftsman Yard Tractor (2006-05) (Sears) Hydro Transaxle Parts Diagram

Yard Tractor

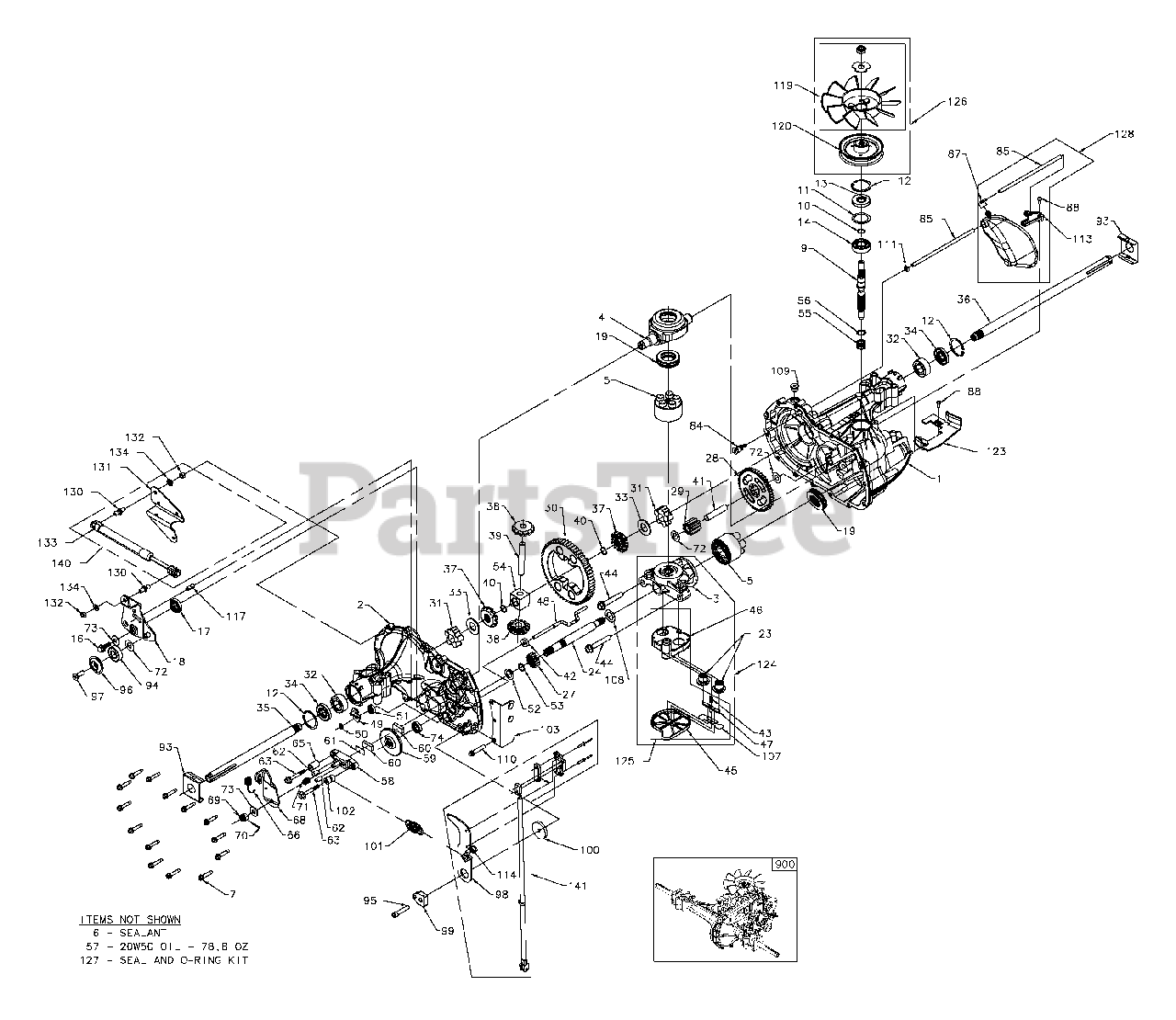

Hydro Transaxle Parts Diagram

  • Title

1

Husqvarna 170351

Kit, Main Housing
(Superseded to 583038301)

$971.99

$

Usually ships in 3-10 days

0

1

Main Housing, Machined

$

$

Not available

1

Bushing.865 X.985 X.790

$

$

Not available

2

Husqvarna 170352

Kit, Side Housing
(Superseded to 583038401)

$338.99

$

Usually ships in 3-10 days

0

2

Side Housing, Machined

$

$

Not available

2

Bushing.865 X.985 X.790

$

$

Not available

2

Bushing.624 X.719 X.562

$

$

Not available

3

Husqvarna 170353

Kit, Center Section
(Superseded to 583038501)

$278.99

$

Usually ships in 3-10 days

0

3

Center Section, Machined

$

$

Not available

3

Bushing.707 X.788 X.591

$

$

Not available

4

Husqvarna 170354

Swashplate, Trunnion Machined
(Superseded to 583038601)

$70.99

$

Usually ships in 3-10 days

0

5

Husqvarna 169898

Kit, Cylinder Block (1000)
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

5

Block - Cylinder

$

$

Not available

5

Piston

$

$

Not available

5

Spring, Compression

$

$

Not available

5

Washer Thrust

$

$

Not available

6

Husqvarna 178322

Sealant Tube
(Superseded to 583087501)

$133.99

$

Usually ships in 3-10 days

0

7

Husqvarna 170356

Hex Flange Screw 1/4-20 X 1.25
(Superseded to 583038801)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 170358

Shaft, Input
(Superseded to 583039001)

$132.99

$

Usually ships in 3-10 days

0

10

Husqvarna 170359

Retaining Ring
(Superseded to 583039101)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 170360

Spacer
(Superseded to 583039201)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 169870

Retaining Ring
(Superseded to 583034101)

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 170361

Seal, Lip.67 X 1.58 X.276
(Superseded to 583039301)

$40.99

$

Usually ships in 3-10 days

0

14

Husqvarna 173158

Bearing, Ball 6203 (Bdr)
(Superseded to 583057201)

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 170362

Hex Flange Head Screw 1/4-20 X 1.25
(Superseded to 583039401)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 170363

Seal, Lip 18 X 32 X 7
(Superseded to 583039501)

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 178781

Arm, Control
(Superseded to 583090101)

$60.99

$

Usually ships in 3-10 days

0

19

Husqvarna 173159

Bearing, Thrust (10cc)

$

$

Not available

23

Husqvarna 170420

Check Plug Assembly, .027 Washer
(Superseded to 583042201)

$60.99

$

Usually ships in 3-10 days

0

24

Husqvarna 170366

Shaft Motor
(Superseded to 583039801)

$302.99

$

Usually ships in 3-10 days

0

27

Husqvarna 170367

Gear, Pinion, 13t
(Superseded to 583039901)

$34.99

$

Usually ships in 3-10 days

0

28

Husqvarna 170368

Gear 1 OT / 48t
(Superseded to 583787701)

$113.99

$

Usually ships in 3-10 days

0

29

Husqvarna 170369

Gear, 1 OT Jackshaft
(Superseded to 583040101)

$47.99

$

Usually ships in 3-10 days

0

30

Husqvarna 170370

60T Bullgear
(Superseded to 583787801)

$236.99

$

Usually ships in 3-10 days

0

31

Husqvarna 170371

Sleeve Bearing.75 X 1.75 X.625
(Superseded to 583040301)

$30.99

$

Usually ships in 3-10 days

0

32

Husqvarna 170389

Sleeve Bearing (Outboard).75 X 1.575 X.625
(Superseded to 583040501)

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 142991

Washer
(Superseded to 532142991)

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 170390

Lip Seal, Axle Shaft
(Superseded to 583040601)

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 170391

Shaft, Axle (Keyed, R.H.)

$

$

Not available

36

Husqvarna 170392

Shaft, Axle (Keyed, L.H.)
(Superseded to 583040801)

$182.99

$

Usually ships in 3-10 days

0

37

Husqvarna 401260

Miter Gear (Splined)

$40.99

$

Usually ships in 3-10 days

0

38

Husqvarna 401261

Miter Gear

$40.99

$

Usually ships in 3-10 days

0

39

Husqvarna 150809

Differential Shaft (310-0750)

$

$

Currently unavailable

40

Husqvarna 170393

Retaining Ring
(Superseded to 583040901)

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 170394

Pin, Jackshaft
(Superseded to 583041001)

$51.99

$

Usually ships in 3-10 days

0

42

Husqvarna 170395

Magnet, Ring

$

$

Not available

43

Husqvarna 170396

Spring, Bypass
(Superseded to 583041101)

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 150797

Bolt 3/8-24 X 2-1/2
(Superseded to 582976101)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 170397

Filter

$

$

Not available

46

Husqvarna 170398

Base, Filter

$

$

Not available

47

Husqvarna 170399

Actuator, Bypass

$

$

Not available

48

Husqvarna 170400

Rod, Bypass Actuator
(Superseded to 583041201)

$21.99

$

Usually ships in 3-10 days

0

49

Husqvarna 196599

Arm, Bypass
(Superseded to 583234201)

$30.99

$

Usually ships in 3-10 days

0

50

Husqvarna 170402

Retaining Ring.25 External
(Superseded to 583041401)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 170403

Seal, Lip.741 X.25 X.25
(Superseded to 583041501)

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 170404

Washer, Flat 0.050" (210-1000)
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 170405

Retaining Ring
(Superseded to 583041601)

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 170406

Bearing, Center Block

$

$

Not available

55

Husqvarna 142977

Spring, Helical Compression
(Superseded to 532142977)

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 142978

Washer, Block Thrust
(Superseded to 532142978)

$7.49

$

Usually ships in 3-10 days

0

57

20vv50

Oil

$

$

Not available

58

Husqvarna 142929

Kit, Brake Yoke
(Superseded to 584289701)

$40.99

$

Usually ships in 3-10 days

0

59

Husqvarna 170408

Rotor, Brake
(Superseded to 583041801)

$

$

Not available

60

Husqvarna 142883

Brake Puck
(Superseded to 532142883)

$8.99

$

In Stock, only 2 left!

0

61

Husqvarna 142882

Brake Puck Plate
(Superseded to 584289601)

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 170409

Pin, Brake Actuating

$

$

Currently unavailable

63

Husqvarna 170410

HFHCS 1/4-20 X 2 W/patch, Special Flange
(Superseded to 584281401)

$

$

Not available

65

Husqvarna 170411

Spacer, Brake Torsion Spring

$

$

Currently unavailable

66

Husqvarna 189386

Spring, Brake Arm Bias
(Superseded to 583183301)

$14.99

$

Usually ships in 3-10 days

0

68

Husqvarna 404026

Arm-brake, RH

$

$

Currently unavailable

69

Husqvarna 170415

Nut, Castle 5/16-24

$

$

Not available

70

Husqvarna 170416

Pin, Cotter 3/32x3/4

$

$

Currently unavailable

71

Husqvarna 170417

Brake Spring

$

$

Currently unavailable

72

Husqvarna 170418

Washer (310-0750)

$

$

Currently unavailable

73

Husqvarna 142884

Washer, Flat
(Superseded to 532142884)

$5.99

$

Usually ships in 3-10 days

0

74

Husqvarna 170419

Seal, Oil

$

$

Not available

84

Husqvarna 170425

Fitting, 5/16 X Sae 5/32 Tube
(Superseded to 583042601)

$37.99

$

Usually ships in 3-10 days

0

85

Husqvarna 170426

Hose, Expansion Tank
(Superseded to 583042701)

$9.99

$

Usually ships in 3-10 days

0

87

Husqvarna 401264

Cap, Barbed Vent
(Superseded to 583269501)

$36.99

$

Usually ships in 3-10 days

0

88

Husqvarna 178334

Bolt, Self Tapping (BDR)

$

$

Not available

93

Husqvarna 170431

Spring Clip, Housing
(Superseded to 583042901)

$27.99

$

Usually ships in 3-10 days

0

94

Husqvarna 178783

Bearing, Ball

$

$

Not available

95

Husqvarna 178784

Screw, 5/16-24x 1 1/2 Socket Head Cap (310-3000)

$

$

Not available

96

Husqvarna 178786

Spacer, Locating
(Superseded to 583090301)

$9.99

$

Usually ships in 3-10 days

0

97

Husqvarna 178787

Screw (310-3000)

$

$

Not available

98

Husqvarna 404027

Arm, Return

$

$

Currently unavailable

99

Husqvarna 178792

Puck, Adjusting
(Superseded to 583090401)

$17.99

$

Usually ships in 3-10 days

0

100

Husqvarna 178793

Washer, .325 OD xl.6 Idx.15 Tk
(Superseded to 583090501)

$17.99

$

Usually ships in 3-10 days

0

101

Husqvarna 178794

Spring, Extension
(Superseded to 583090601)

$8.99

$

Usually ships in 3-10 days

0

102

Husqvarna 178795

Spacer, .56 ODx.26 ID X.87
(Superseded to 582209601)

$6.99

$

Usually ships in 3-10 days

0

103

Husqvarna 178796

Bracket, Torque
(Superseded to 583090701)

$24.99

$

Usually ships in 3-10 days

0

107

Husqvarna 170432

Deflector
(Superseded to 583043001)

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 170433

Washer, Motor Shaft.71 Id X 1.150d X .03 Thick
(Superseded to 583043101)

$2.99

$

Usually ships in 3-10 days

0

109

Husqvarna 170434

Plug, Straight Thread 9/16-18

$

$

Currently unavailable

110

Husqvarna 161159

Screw, Torx Head 5/16-18 (310-3000)
(Superseded to 532161159)

$6.49

$

Usually ships in 3-10 days

0

111

Husqvarna 170435

O-ring .7 X .301 ID
(Superseded to 583043201)

$4.99

$

Usually ships in 3-10 days

0

113

Husqvarna 170437

Bracket, Support Expansion Tank
(Superseded to 583043301)

$8.99

$

Usually ships in 3-10 days

0

114

Husqvarna 178797

Spring Guide

$

$

Not available

117

Husqvarna 178799

Pin, Spring 5/16 X.75

$2.49

$

Usually ships in 3-10 days

0

119

Husqvarna 191031

Kit, Fan - Washer - Nut
(Superseded to 583197801)

$60.99

$

Usually ships in 3-10 days

0

119

Fan, 7 In

$

$

Not available

119

Hex Lock Nut 1/2-20 (Nylon Insert) Washer

$

$

Not available

119

OR Slotted, .53 X 1.63 X.06

$

$

Not available

120

Husqvarna 170440

Pulley
(Superseded to 583043501)

$

$

Not available

123

Husqvarna 401265

Belt Keeper
(Superseded to 583269601)

$97.99

$

Usually ships in 3-10 days

0

124

Husqvarna 191033

Center Section Filter Bypass Assembly

$242.99

$

Usually ships in 3-10 days

0

124

Center Section

$

$

Not available

124

Base Filter W/ Poppet

$

$

Not available

124

Check Plug Assembly,.027 Washer Spring

$

$

Not available

124

Bypass Actuator,

$

$

Not available

124

Bypass Deflector Bottom,

$

$

Not available

124

Filter Bushing,.707 X.788 X.591

$

$

Not available

125

Husqvarna 170445

Kit, Filter

$

$

Not available

125

Bottom, Filter Spring,

$

$

Not available

125

Bypass Actuator,

$

$

Not available

125

Bypass Deflector

$

$

Not available

125

Base, Filter W/ Poppet

$

$

Not available

126

Husqvarna 170446

Kit, Fan/pulley
(Superseded to 583044001)

$133.99

$

Usually ships in 3-10 days

0

126

Hex Jam 1/20-20 (Nylon Inser) Washer

$

$

Not available

126

OD Slotted, .53 X 1.63 X.06

$

$

Not available

126

Fan, 7 In

$

$

Not available

126

Pulley

$

$

Not available

127

Husqvarna 170447

Kit, Seal
(Superseded to 583044101)

$109.99

$

Usually ships in 3-10 days

0

127

Lip Seal.67 X 1.58 X.276

$

$

Not available

127

Lip Seal 18 X 32 X 7

$

$

Not available

127

Lip Seal .706 X 1.584 X .25

$

$

Not available

127

Lip Seal.741 X.250 X.250 TC

$

$

Not available

127

Oil Seal.625 X 1.0 x.25

$

$

Not available

11

O-ring.07x.301 ID

$

$

Not available

128

Husqvarna 401266

Kit, Expansion Tank
(Superseded to 583269701)

$94.99

$

Usually ships in 3-10 days

0

128

Tank,

$

$

Not available

128

Expansion Assembly Cap,

$

$

Not available

128

Barbed Vent

$

$

Not available

128

Bolt, Self Tapping 10-32 X 1/2

$

$

Not available

128

Bracket, Support Expansion

$

$

Not available

128

Tank Hose,

$

$

Not available

128

Expansion Tank

$

$

Not available

130

Husqvarna 178802

Stud, Threaded Ball
(Superseded to 583090801)

$10.99

$

Usually ships in 3-10 days

0

131

Husqvarna 178803

Bracket, Cruise/Damper

$

$

Not available

132

Husqvarna 178804

Nut 5/16-18
(Superseded to 583090901)

$3.99

$

Usually ships in 3-10 days

0

133

Husqvarna 184227

Damper
(Superseded to 583132101)

$206.99

$

Usually ships in 3-10 days

0

134

Husqvarna 178808

Washer, 5/16 Lock
(Superseded to 583091001)

$3.99

$

Usually ships in 3-10 days

0

140

Husqvarna 191030

Kit, Damper
(Superseded to 583197701)

$188.99

$

Usually ships in 3-10 days

0

140

Stud, Threaded Ball Bracket,

$

$

Not available

140

Cruise/Damper

$

$

Not available

140

Hex Nut 5/16-18 NC Damper

$

$

Not available

140

Washer, Helical Spring Lock 5/16, Regular

$

$

Not available

141

Husqvarna 404030

Kit, Lt Rcs
(Superseded to 583289401)

$121.99

$

Usually ships in 3-10 days

0

141

Arm, Return

$

$

Not available

141

Spring Guide

$

$

Not available

141

Switch, RCS Activator,

$

$

Not available

141

RCS Switch Spring,

$

$

Not available

141

RCS Switch Retainer,

$

$

Not available

141

RCS Switch Rivet 5/32

$

$

Not available

900

Husqvarna 400506

Transaxle Assembly-Complete
(Superseded to 583263801)

$1455.99

$

Usually ships in 3-10 days

0
