917.279181 (YTH 2242 T) - Craftsman Yard Tractor (2006-05) (Sears) Engine Parts Diagram

Yard Tractor

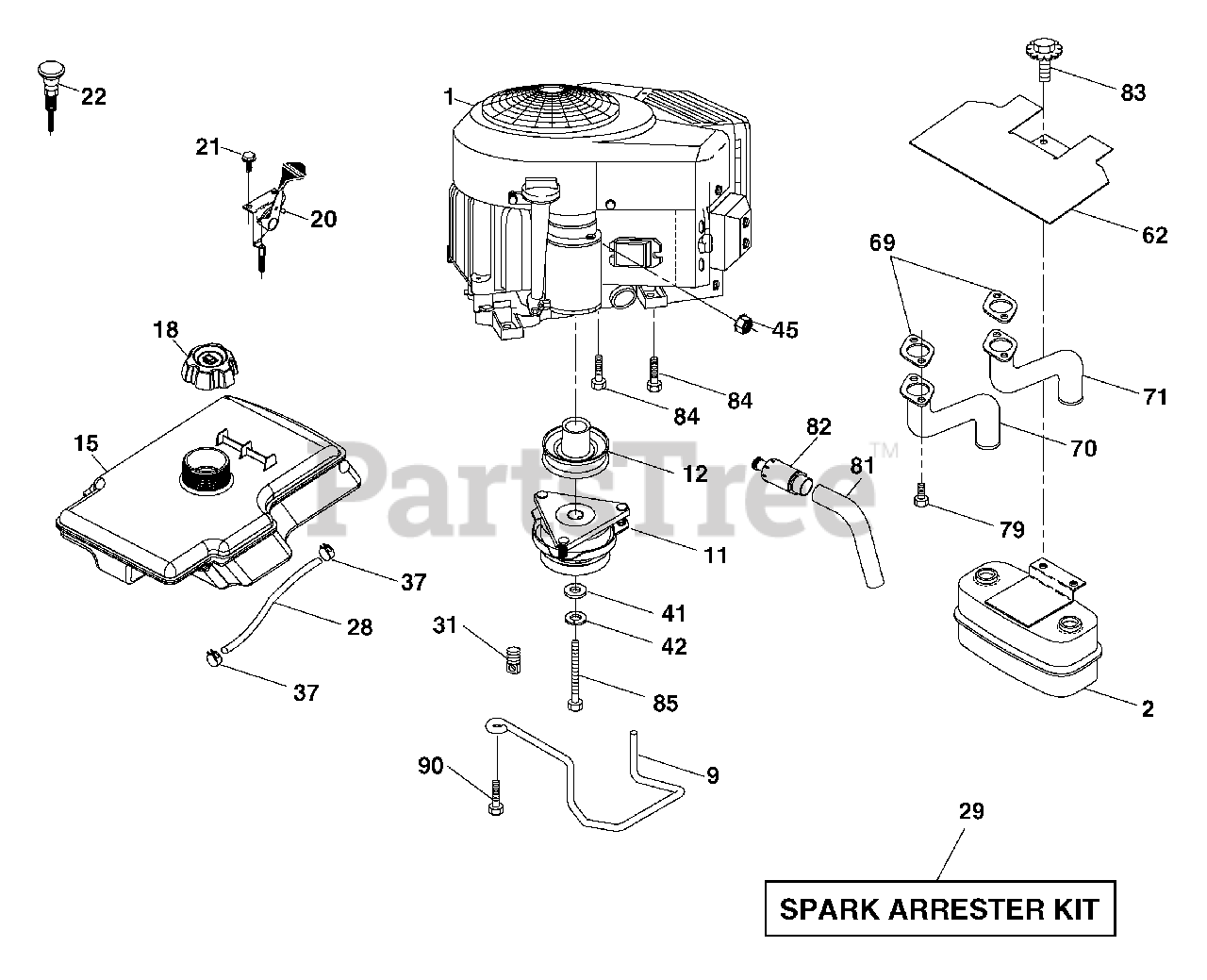

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 441777 0284-E1

Note: (See Breakdown)

$

$

Not available

2

Husqvarna 532149723

Muffler

$74.99

$

In Stock, Qty 6

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532180505

Clutch Ogura
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

Pulley Engine

$100.99

$

In Stock, only 1 left!

0

15

Husqvarna 532197024

Tank Fuel
(Superseded to 532194264)

$

$

Not available

18

Husqvarna 532195951

Cap Asm
(Superseded to 584248701)

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532178385

Control Throttle
(Superseded to 532175437)

$44.99

$

In Stock, only 3 left!

0

21

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

22

Husqvarna 532191596

Control Choke

$40.99

$

In Stock, Qty 7

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

Clip Push-In Hinged

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, Qty 16

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

Exhaust Tube LH
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

71

Husqvarna 532160589

Exhaust Tube RH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

Screw Socket Head 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$4.99

$

In Stock, Qty 19

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$18.99

$

In Stock, Qty 16

0

83

Husqvarna 532171877

Bolt 5/16-18 x 3/4

$7.49

$

In Stock, Qty 5

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 8

0
