917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Crankcase Parts Diagram

Yard Tractor

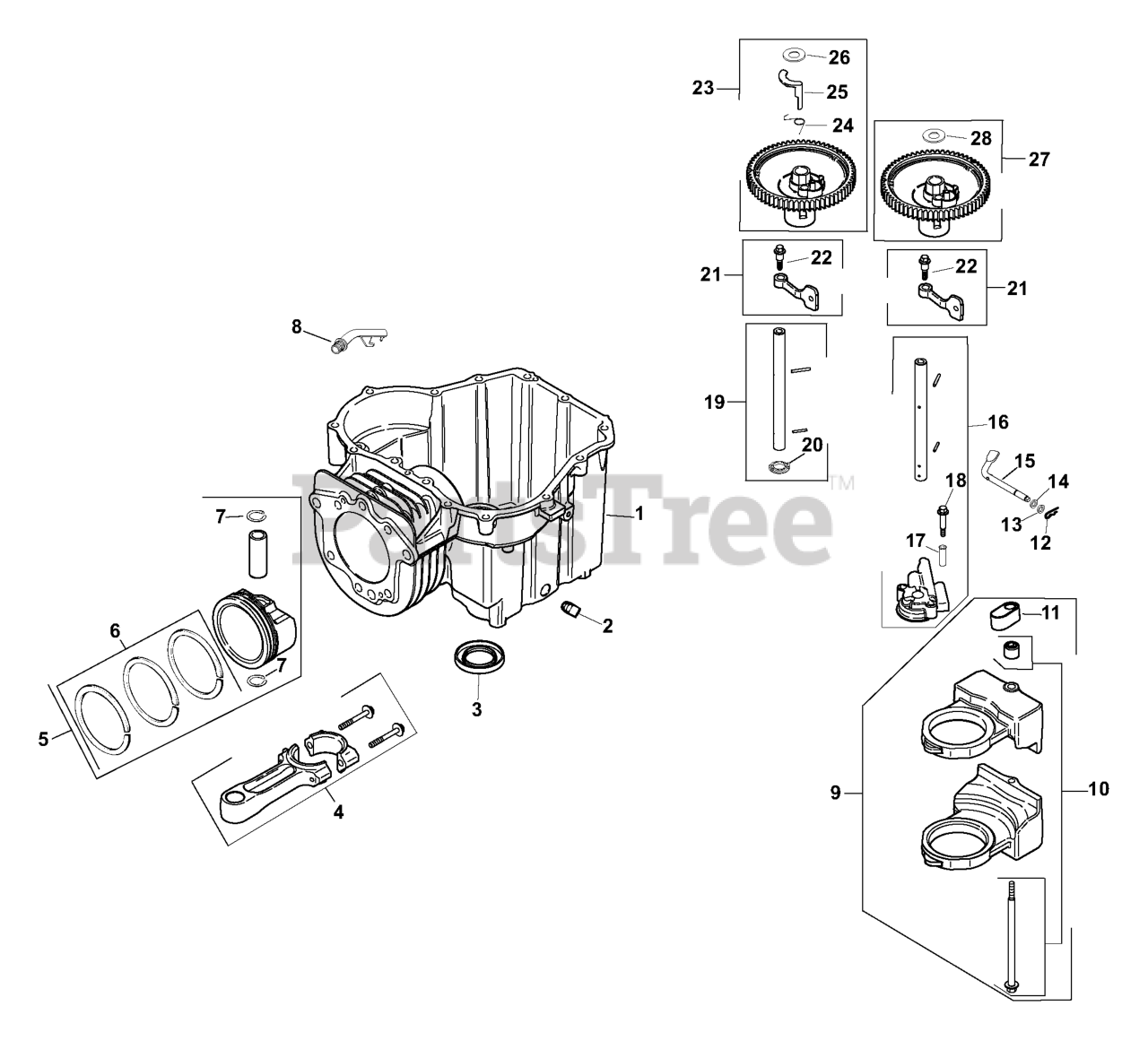

Crankcase Parts Diagram

  • Title

1

Crankcase

Note: (Use: Short Block)

$

$

Not available

2

Husqvarna 2513957S

Plug, Sq Hd Pipe 3/8"

$

$

Currently unavailable

3

Husqvarna 2003201S

Seal, Oil

$

$

Currently unavailable

4

Husqvarna 2006704S

Rod, Connecting

$

$

Currently unavailable

5

Husqvarna 2087401S

Kit, Piston W/ring Set (94mm)

Note: (Includes 6,7)

$

$

Currently unavailable

6

Husqvarna 2010801S

Ring Set (94 Mm)

$

$

Currently unavailable

7

Husqvarna 2001804S

Retainer, Piston Pin

$

$

Currently unavailable

8

Husqvarna 2012302S

Tube, Drainback

$

$

Currently unavailable

9

Husqvarna 2075504S

Kit, Balance Weight

Note: (Includes 10,11)

$

$

Currently unavailable

10

Husqvarna 2038016S

Kit,locating Pin

$

$

Currently unavailable

11

Husqvarna 2042302S

Shoe, Guide

$

$

Currently unavailable

12

Husqvarna 1215405S

Clip, Hitch Pin

$

$

Currently unavailable

13

Husqvarna M631015S

Washer, Flat 6 mm

$

$

Currently unavailable

14

Husqvarna X25102S

Washer, Flat 1/4"

$

$

Currently unavailable

15

Husqvarna 2014402S

Shaft, Governor Cross

$

$

Currently unavailable

16

Husqvarna 2039302S

Kit, Oil Pump Assembly

Note: (Includes 17,18)

$

$

Currently unavailable

17

Husqvarna 2011202S

Spacer, Oil Pump Screw

$

$

Currently unavailable

18

Husqvarna 2008613S

Screw, Oil Pump

$

$

Currently unavailable

19

Husqvarna 2014406S

Kit, Camshaft Center Exhaust Assembly

Note: (Includes 20)

$

$

Currently unavailable

20

Husqvarna 2046801S

Washer, Thrust

$

$

Currently unavailable

21

Husqvarna 2009001S

Kit, Cam Lever Assembly

Note: (Includes 23)

$

$

Currently unavailable

22

Husqvarna 2008606S

Screw, Shd Thd FRM M6x1x26

$

$

Currently unavailable

23

Husqvarna 2001004S

Kit, Camshaft Assembly

Note: (Includes 24-26)

$

$

Currently unavailable

24

Husqvarna 2008906S

Spring, ACR

$

$

Currently unavailable

25

Husqvarna 2004416S

Weight, ACR

$

$

Currently unavailable

26

Husqvarna 2046803S

Washer, Thrust -ACR

$

$

Currently unavailable

27

Husqvarna 2001004S

Kit, Camshaft Assembly

Note: (Includes 28)

$

$

Currently unavailable

28

Husqvarna 2046803S

Washer, Thrust -ACR

$

$

Currently unavailable
