917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Cylinder Head, Valve And Breather Parts Diagram

Yard Tractor

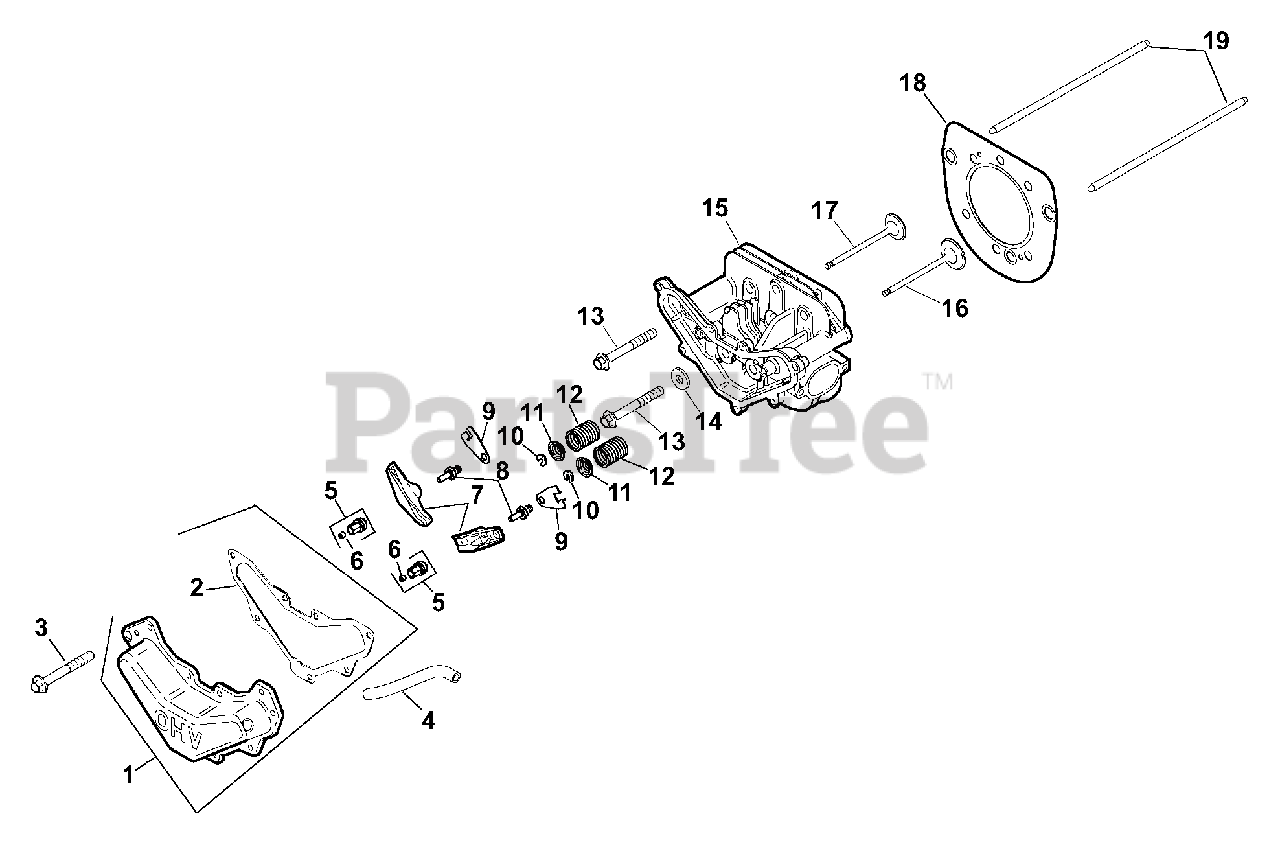

Cylinder Head, Valve And Breather Parts Diagram

  • Title

1

2009607s

Kit, Valve Cover

Note: (Includes 2)

$

$

Not available

2

2004113s

Gasket, Valve Cover

$

$

Not available

3

M645020s

Screw, Flg Thd Frm M6x1.0x20

$

$

Not available

4

2032601s

Hose, Breather

$

$

Not available

5

2059902s

Pivot, Rocker Arm

Note: (Includes 6)

$

$

Not available

6

2008604s

Screw, Set

$

$

Not available

7

2018601s

Arm, Rocker

$

$

Not available

8

2008603s

Stud, Rocker

$

$

Not available

9

2014603s

Plate, Push Rod Guide

$

$

Not available

10

2006201s

Lock, Retainer

$

$

Not available

11

2017301s

Cap, Valve Spring

$

$

Not available

12

2008903s

Spring, Valve

$

$

Not available

13

2008602s

Screw, Flg M1 Ox1.5x80

$

$

Not available

14

1246805s

Washer, Flat 13/32"

$

$

Not available

15

2031805s

Cylinder Head Assembly

$

$

Not available

16

2001601s

Valve, Exhaust

$

$

Not available

17

2001701s

Valve, Intake

$

$

Not available

18

2084101s

Kit, Cylinder Head Gasket

Note: (Includes 2,13,14)

$

$

Not available

19

2041104s

Rod, Push

$

$

Not available
