917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Engine Parts Diagram

Yard Tractor

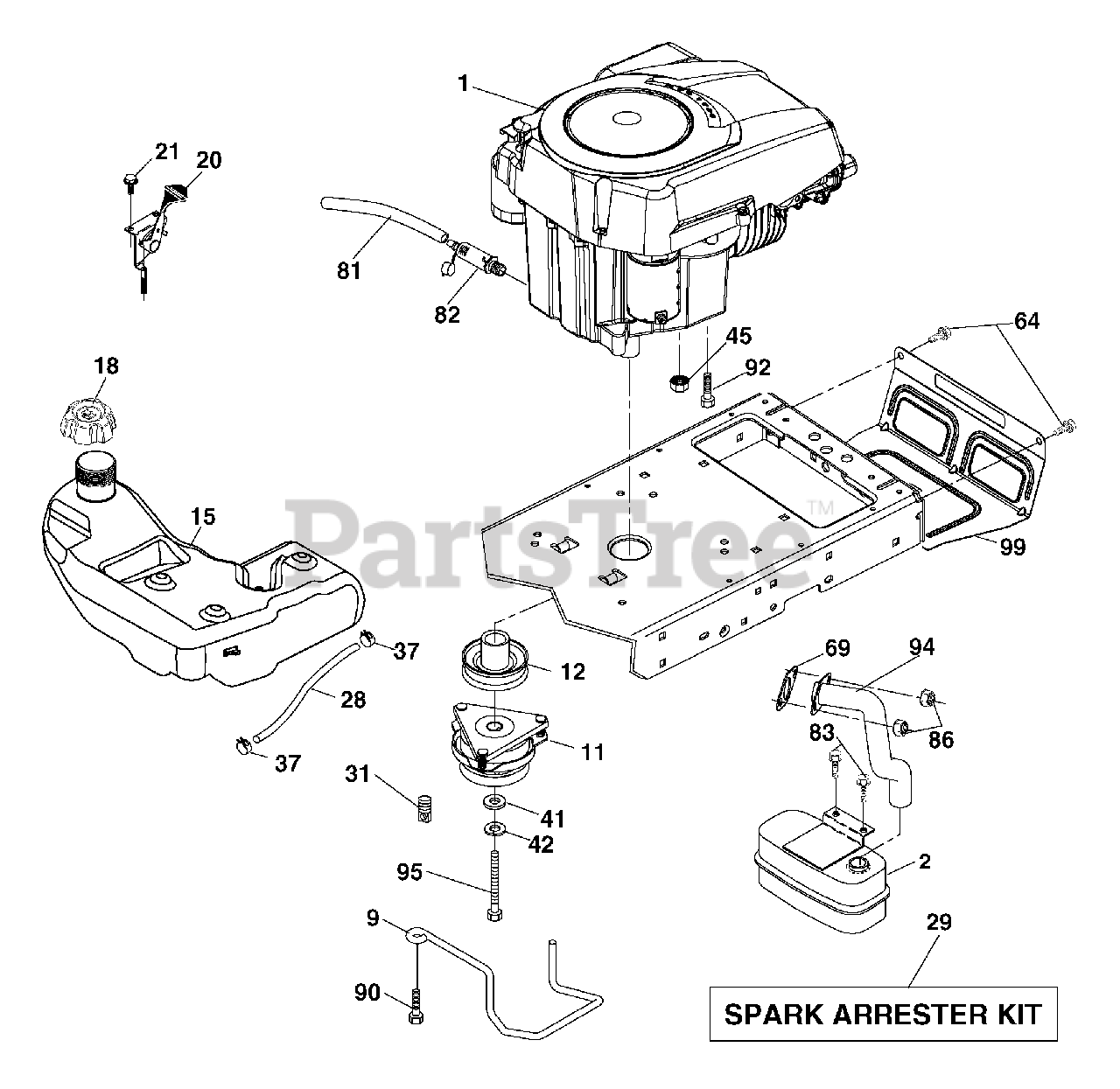

Engine Parts Diagram

  • Title

1

Engine Kohler Model No. SV600-0002

Note: (See Breakdown)

$

$

Not available

2

Husqvarna 532188655

Muffler

$51.99

$

In Stock, Qty 9

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532180505

Clutch
(Superseded to 583389701)

$398.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

Pulley Engine

$62.99

$

In Stock, only 2 left!

0

15

Husqvarna 532193499

Tank Fuel 4.0

$145.99

$

In Stock, only 1 left!

0

18

Husqvarna 532194267

Cap Asm
(Superseded to 584248702)

$20.99

$

In Stock, Qty 7

0

20

Husqvarna 532401508

Control Throttle

$34.99

$

In Stock, only 2 left!

0

21

Husqvarna 817720408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145005

Clip Push-In

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

Clamp Hose

$3.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$7.99

$

In Stock, Qty 6

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.49

$

In Stock, Qty 20+

0

64

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

69

Husqvarna 532185909

Gasket

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 2 left!

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$20.99

$

In Stock, Qty 8

0

83

Husqvarna 532171877

Bolt 5/16-18 x 3/4 (goes with muffler)

$7.49

$

In Stock, only 2 left!

0

86

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.25

$3.49

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$6.99

$

In Stock, Qty 11

0

92

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 15

0

94

Husqvarna 532188654

Tube Exhaust
(Superseded to 583955301)

$34.99

$

In Stock, Qty 9

0

95

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 Gr. 5
(Superseded to 501606501)

$4.99

$

In Stock, Qty 18

0

99

Husqvarna 532194329

Shield Browning

$22.99

$

Usually ships in 3-10 days

0
