917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Engine Controls Parts Diagram

Yard Tractor

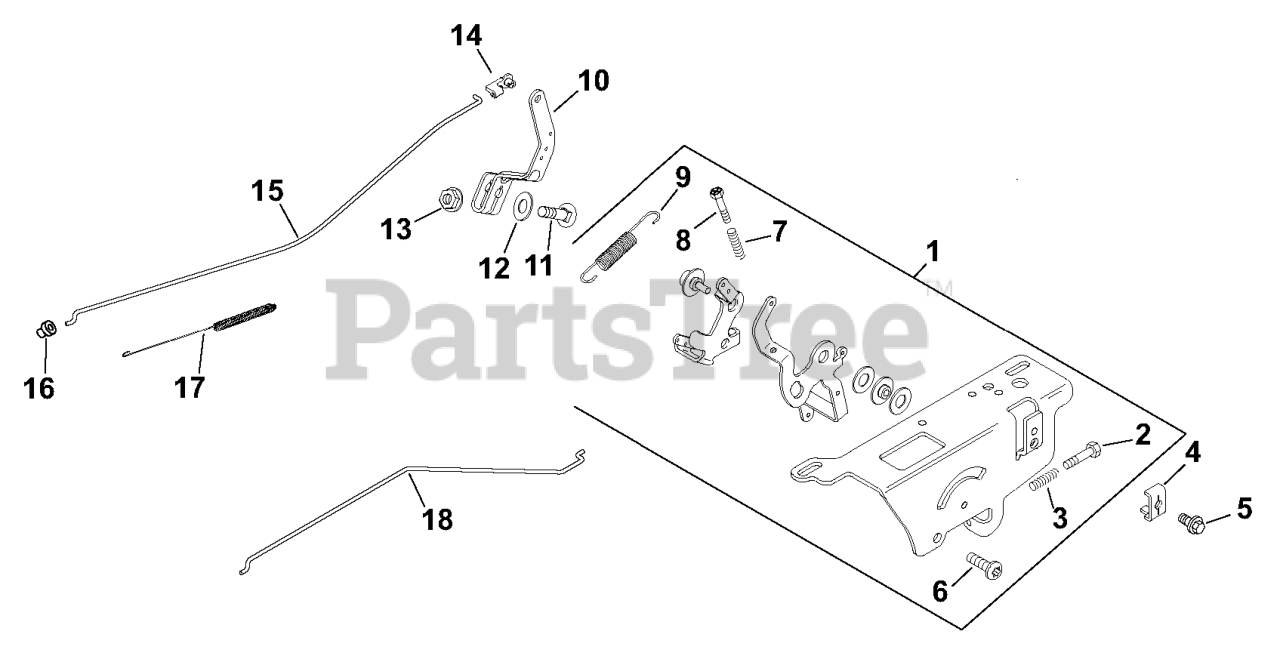

Engine Controls Parts Diagram

  • Title

1

Husqvarna 2053605S

Kit, Speed Control Assembly

Note: (Includes 2,3,6-9)

$

$

Currently unavailable

2

Husqvarna 2008610S

Screw, Phl Thd Frm M4x0.7x25

$

$

Currently unavailable

3

Husqvarna 1208911S

Spring, Speed Control (Short)

$

$

Currently unavailable

4

Husqvarna 1223701S

Clamp, Cable

$

$

Currently unavailable

5

Husqvarna 2408643S

Screw, Lbd Thd Frm M5x0.8x16

$

$

Currently unavailable

6

Husqvarna M664020S

Screw, Lbd Skt M6x1.0x20

$

$

Currently unavailable

7

Husqvarna 1208911S

Spring, Speed Control (Short)

$

$

Currently unavailable

8

Husqvarna 2008610S

Screw, Phl Thd Frm M4x0.7x25

$

$

Currently unavailable

9

Husqvarna 2008911S

Spring, Governor

$

$

Currently unavailable

10

Husqvarna 2009002S

Lever, Governor

$

$

Currently unavailable

11

Husqvarna 5221104S

Bolt, Rd Hd Sq Nck 1/4-20x1"

$

$

Currently unavailable

12

Husqvarna X22115

Washer, Int Tooth Lock 1/4"

$

$

Currently unavailable

13

Husqvarna 1210007S

Nut, Hex Flg 1/4-20"

$

$

Currently unavailable

14

Husqvarna 2515811S

Bushing, Throttle Linkage

$

$

Currently unavailable

15

Husqvarna 2007904S

Linkage, Throttle

$

$

Currently unavailable

16

Husqvarna 2515808S

Bushing, Linkage Retaining

$

$

Currently unavailable

17

Husqvarna 2008910S

Spring, Linkage

$

$

Currently unavailable

18

Husqvarna 2007905S

Linkage, Choke

$

$

Currently unavailable
