917.279241 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Fuel System Parts Diagram

Yard Tractor

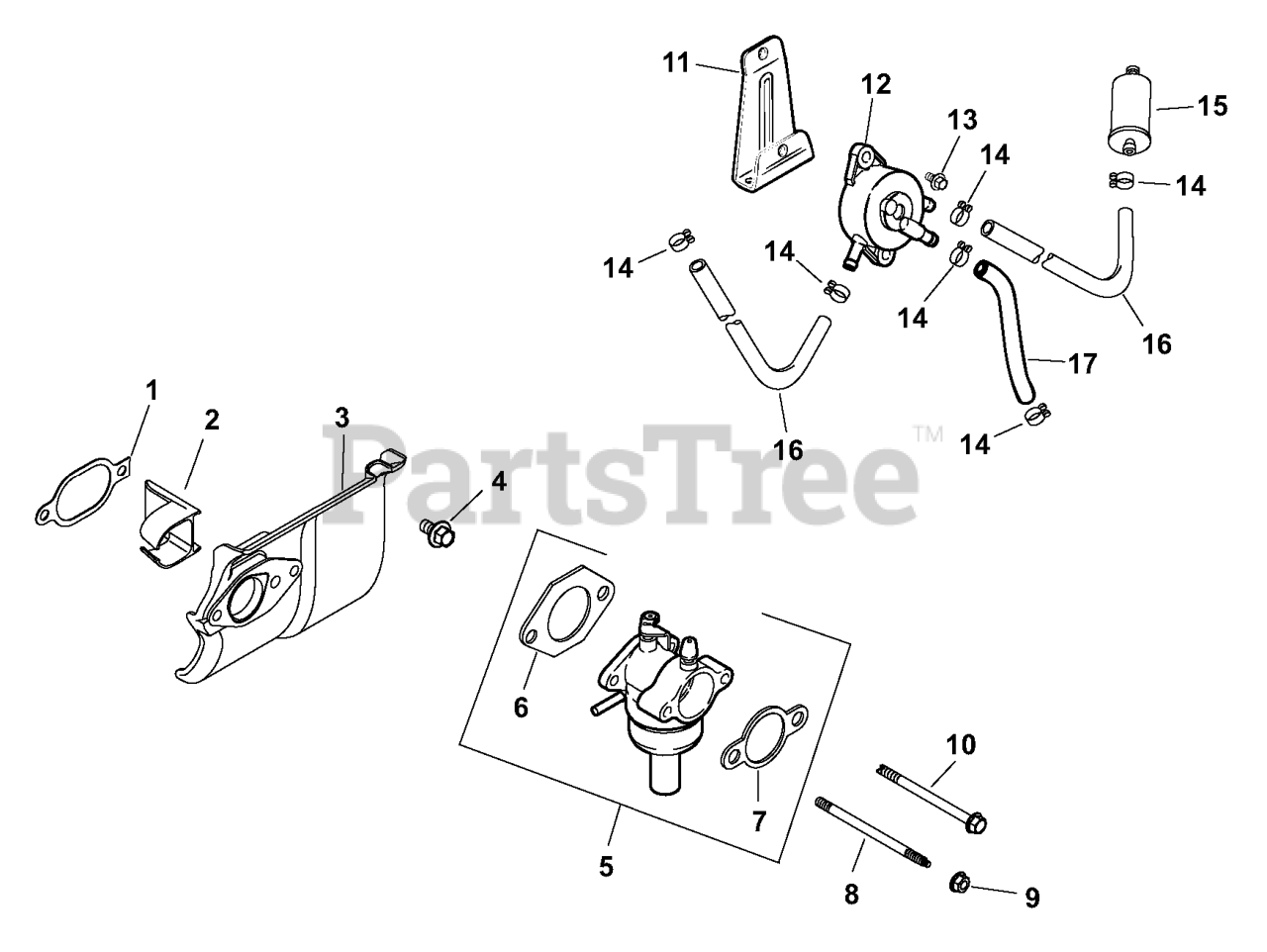

Fuel System Parts Diagram

  • Title

1

Husqvarna 2004107S

Gasket, Heat Deflector

$

$

Currently unavailable

2

Husqvarna 2033201S

Insert, Intake Port

$

$

Currently unavailable

3

Husqvarna 2026503S

Deflector, Heat

$

$

Currently unavailable

4

Husqvarna M651020S

Screw, Flg M6x1.0x20

$

$

Currently unavailable

5

Husqvarna 2085314S

Kit, Carburetor W/gaskets

Note: (Includes 6,7)

$

$

Currently unavailable

6

Husqvarna 1204102S

Gasket, Air Cleaner Base

$

$

Currently unavailable

7

Husqvarna 1204101S

Gasket, Carburetor

$

$

Currently unavailable

8

Husqvarna 2007205S

Stud, M6x1.0x100

$

$

Currently unavailable

9

Husqvarna M641060S

Nut, Flg M6x1.0

$

$

Currently unavailable

10

Husqvarna M545010S

Screw, Flg Thd Frm M5x0.8x10

$

$

Currently unavailable

11

Husqvarna 2012602S

Bracket, Fuel Pump Mounting

$

$

Currently unavailable

12

Husqvarna 2439316S

Pump, Fuel

$

$

Currently unavailable

13

Husqvarna M645016S

Screw, Flg Thd Frm M6x1.0x16

$

$

Currently unavailable

14

Husqvarna 2523714S

Clamp, Hose

$

$

Currently unavailable

15

Husqvarna 2505022S

Filter, Fuel

$

$

Currently unavailable

16

Husqvarna 2511134S

Line, Fuel (24"-cut To Length)

$

$

Currently unavailable

17

Husqvarna 5235320S

Line, Fuel 10"

$

$

Currently unavailable

Husqvarna 2545405S

Tie

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna X22115

Washer, Int Tooth Lock 1/4"

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 2543112S

Sleeve, Fuel Line

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 12755110S

Kit, Choke Shaft

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 1275702S

Kit, Repair Float

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 1275703S

Kit, Repair Carburetor

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 1275733S

Kit, Repair Solenoid

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 1275737S

Kit, Repair Bowl Replacement

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 2075506S

Kit, High Altitude (5000 Ft)

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 2075507S

Kit, High Altitude (10,000 Ft)

Note: Not Illustrated

$

$

Currently unavailable
